3D Geometry Class 12 Notes – All Formulas, Concepts & JEE Tips

eSaral Logo
Team eSaral

eSaral Academic and Editorial Team

3 min read

Summary

These 3D geometry class 12 notes from eSaral cover direction cosines and ratios, equations of lines and planes, angles, shortest distance and coplanarity, with formulas in vector and Cartesian form and worked examples for CBSE boards and JEE.

3D Geometry Class 12 Notes for IIT JEE and Boards

Three-dimensional geometry extends coordinate geometry from a plane to space, and almost every question uses a short list of formulas. These 3D geometry class 12 notes bring those formulas together with examples, so you can revise the chapter quickly. Lines are part of the Class 12 CBSE chapter, while planes are mainly JEE-level, so check the current CBSE syllabus for your year.

eSaral provides detailed Notes of Physics, Chemistry, Mathematics, and Biology for classes 11 and 12. So here you will get class 12 notes for mathematics. There are important points in Mathematics, such as formulae, equations, identities, properties, theorems, etc., what has to be remembered to solve problems in Math.eSaral is providing complete study material to prepare for IIT JEE, NEET, and Board Examinations. 3D Geometry Class 12 Notes to prepare for boards and JEE. With the help of Notes, candidates can plan their Strategy for a particular weaker section of the subject and study hard. So, go ahead and check the Important Notes for CBSE Class 12 Maths. These Notes have been designed in the simplest and most precise format, covering almost all the Domains like Differential Calculus, Algebra, Trigonometry, and Coordinate Geometry. These Notes will also be helpful to those who are preparing for competitive Exams like JEE.

3D Geometry Class 12 Notes: What You Will Learn

  • Direction cosines and direction ratios
  • Equation of a line in vector and Cartesian form
  • Angle between two lines
  • Shortest distance between two lines
  • Equation of a plane, distance of a point from a plane and angles (JEE-level)

India's Best Exam Preparation for Class 12th - Download Now

3D Geometry Class 12 Notes

The pages below are 3D geometry class 12 notes, including solved examples. Use them along with the formulas above for quick revision.

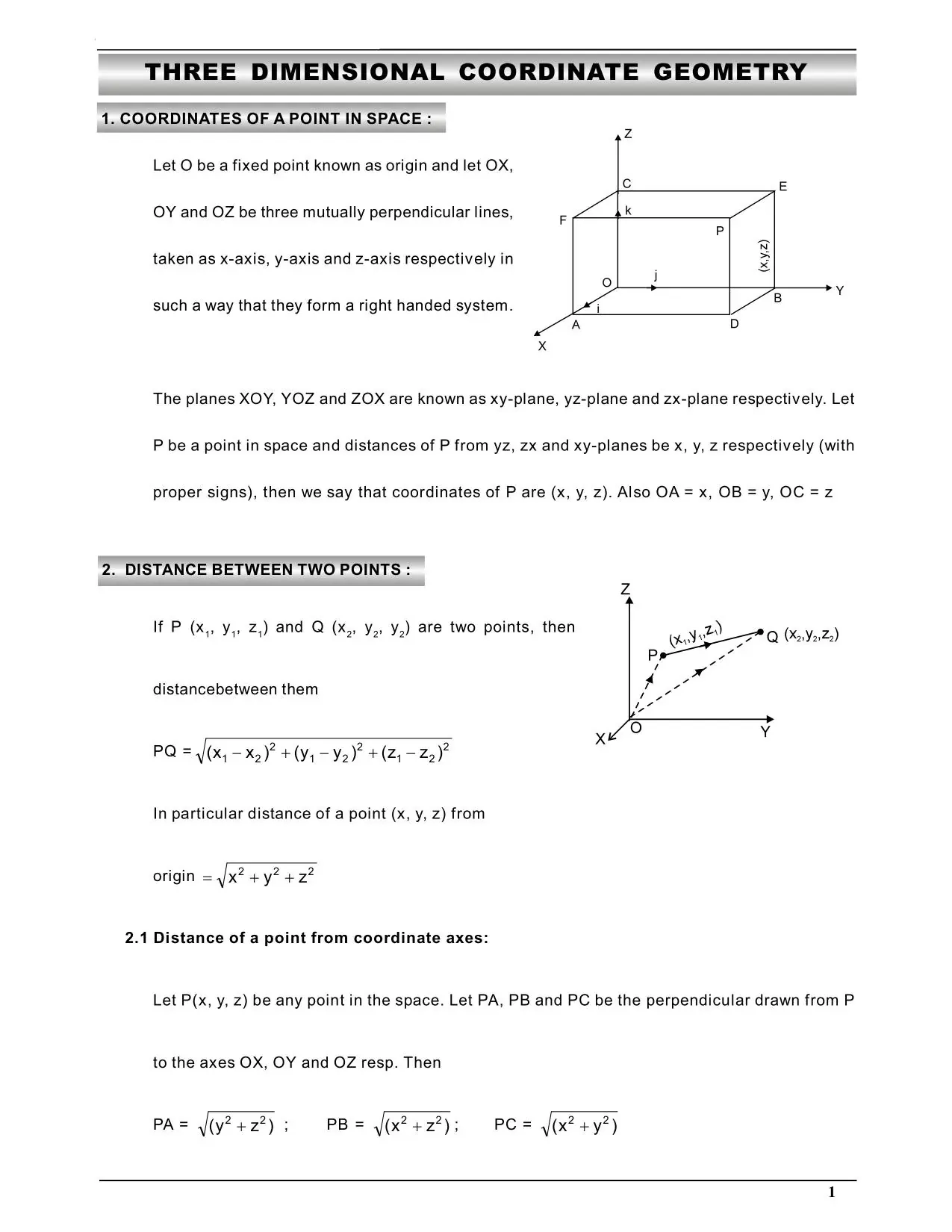

3D Geometry Class 12 Notes

India's Best Exam Preparation for Class 12th - Download Now

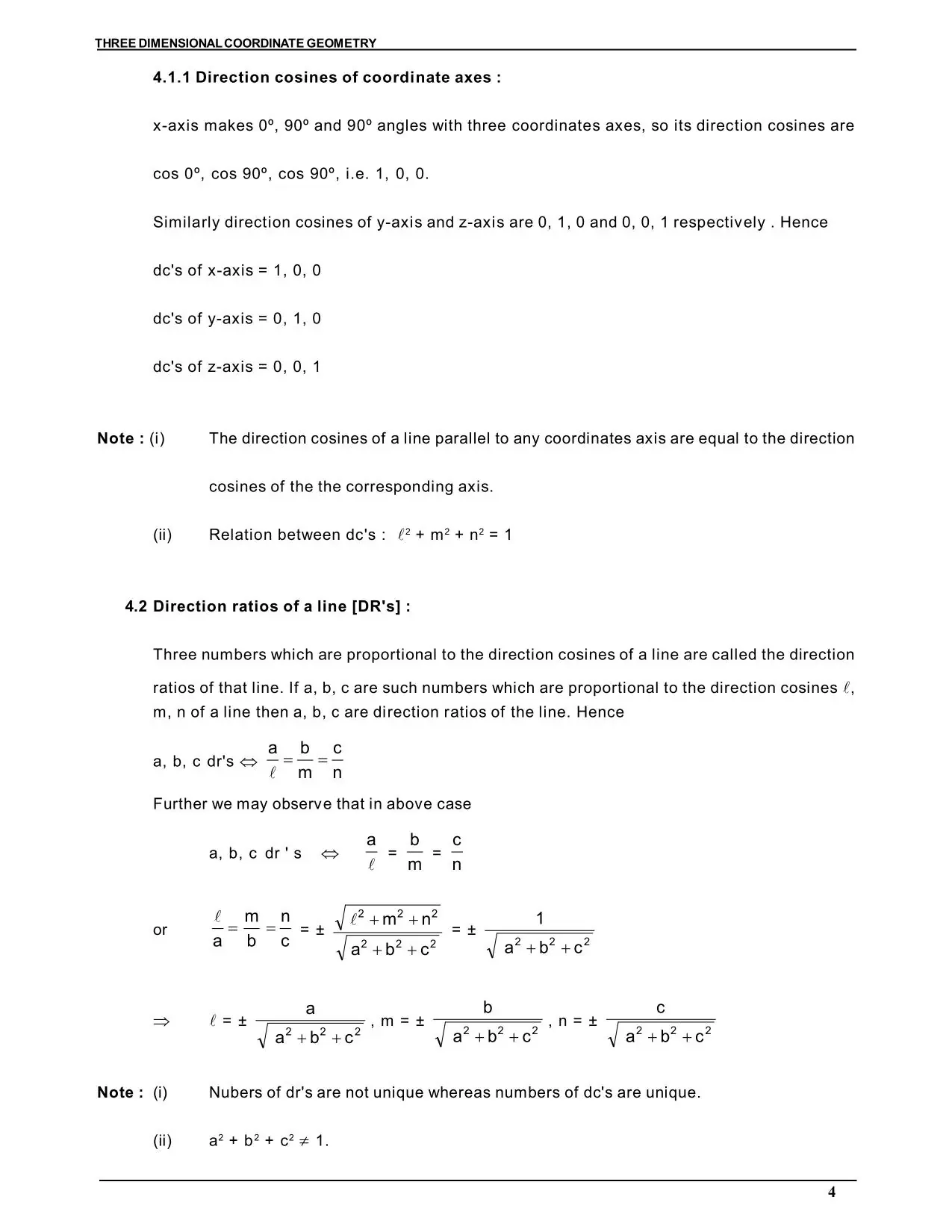

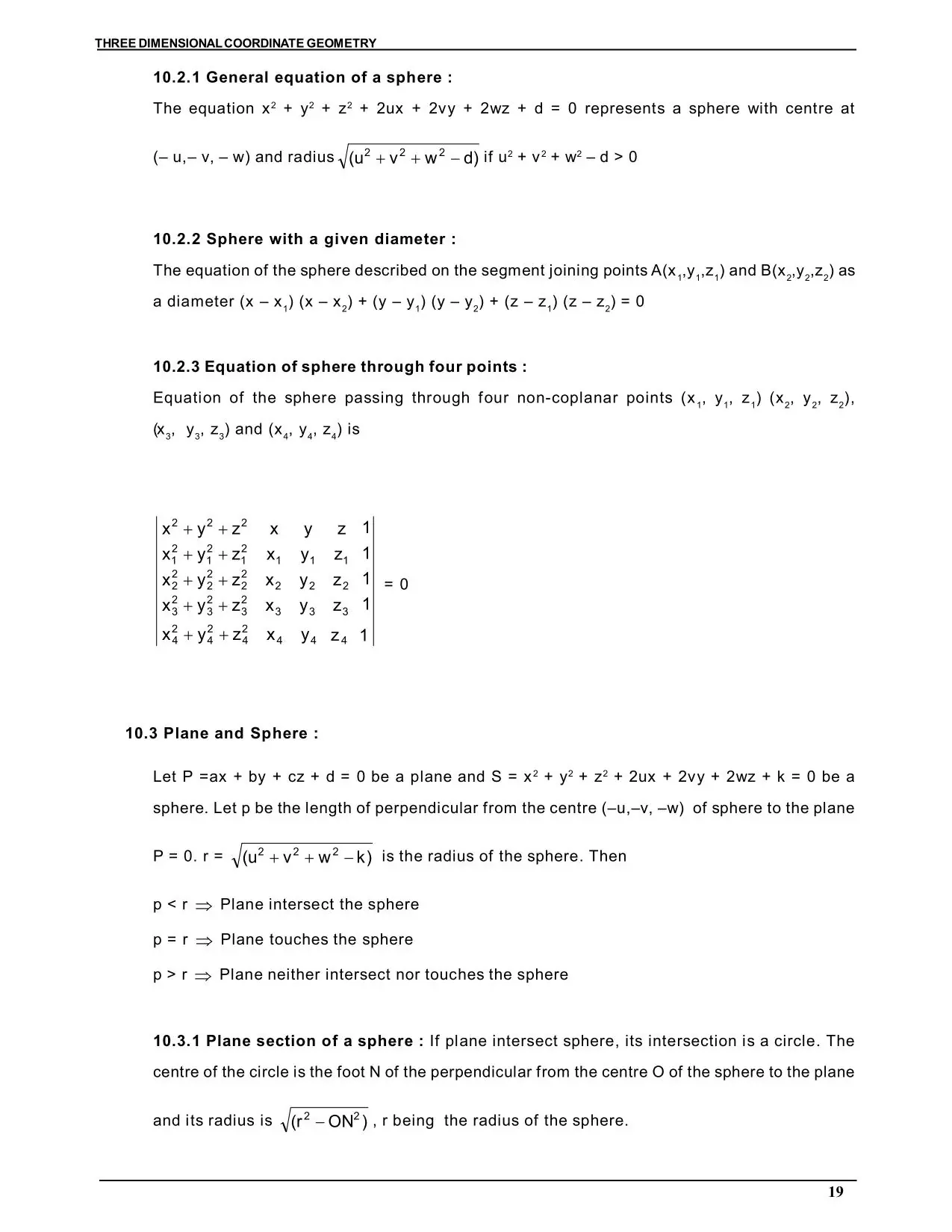

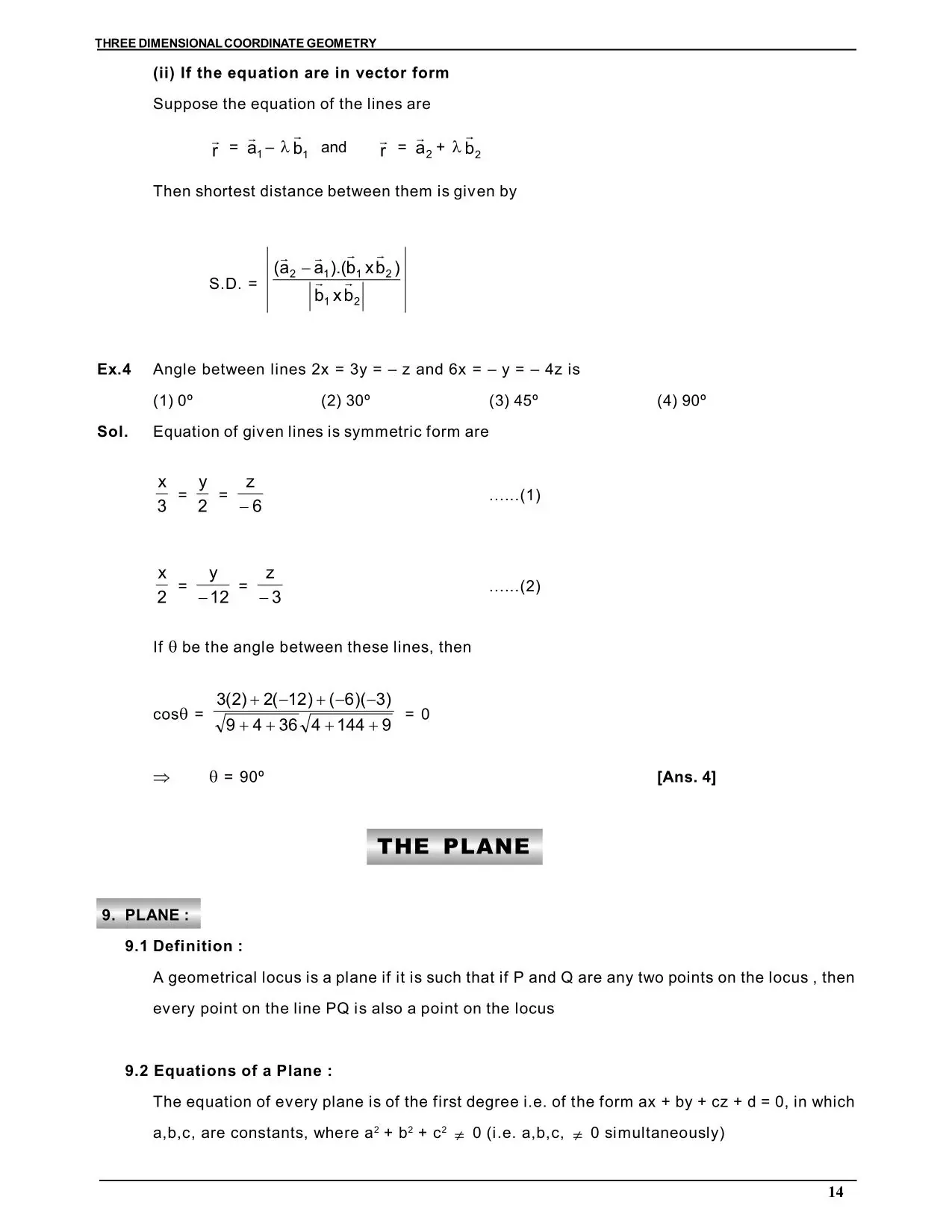

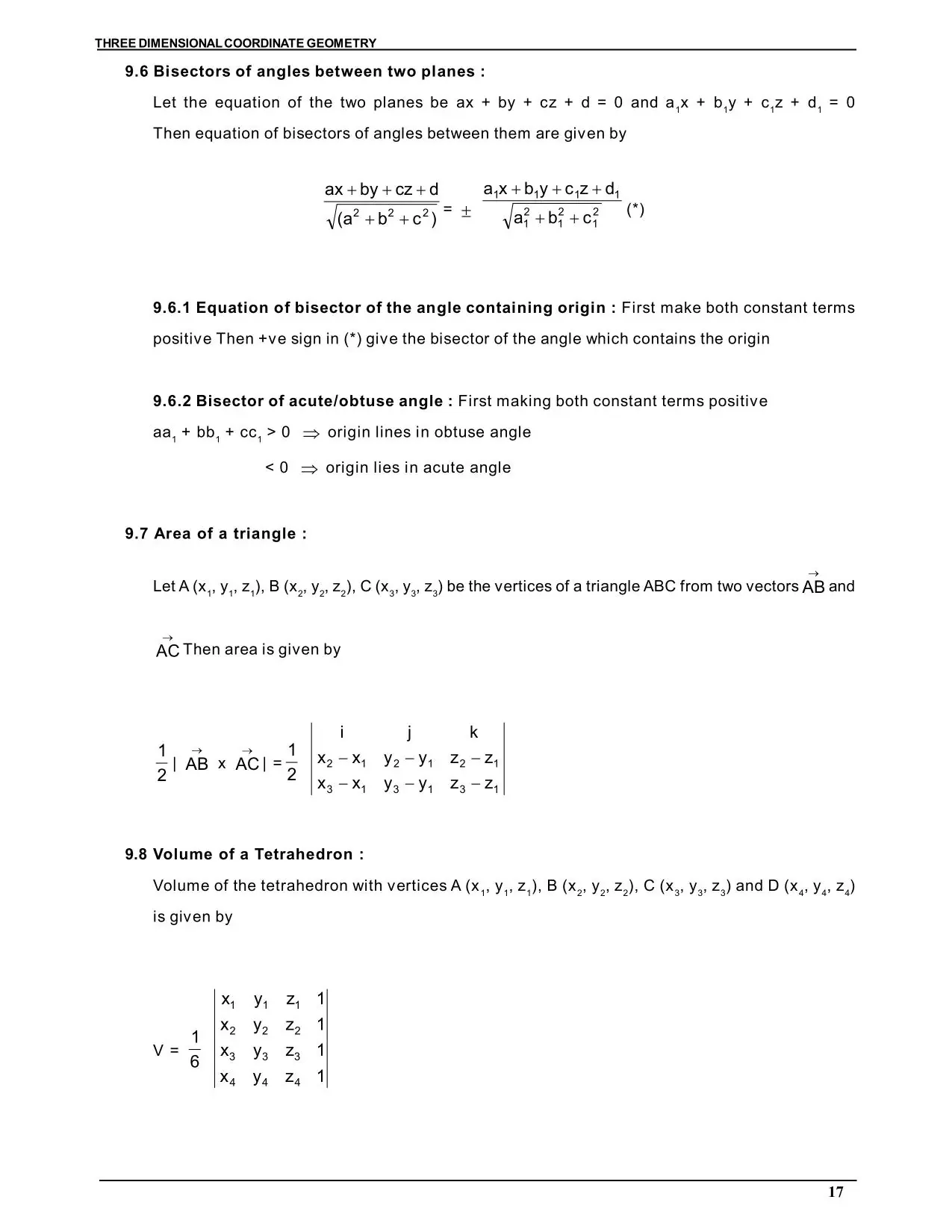

Three Dimensional Co-ordinate Geometry
Three Dimensional Co-ordinate Geometry

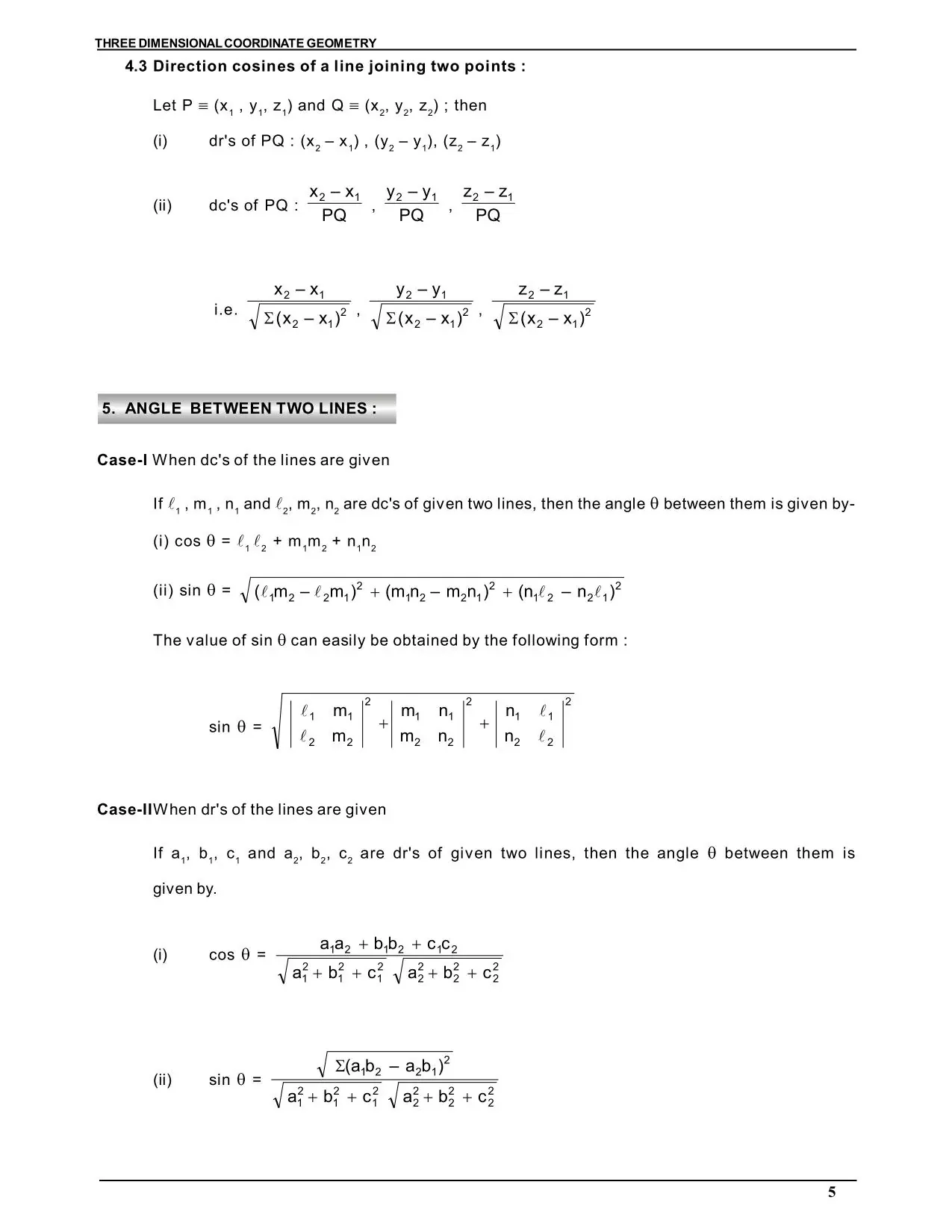

3D Geometry Class 12 Notes : angle between two lines
Three Dimensional Co-ordinate Geometry

India's Best Exam Preparation for Class 12th - Download Now

Three Dimensional Co-ordinate Geometry
Three Dimensional Co-ordinate Geometry
Three Dimensional Co-ordinate Geometry
Three Dimensional Co-ordinate Geometry
Three Dimensional Co-ordinate Geometry

India's Best Exam Preparation for Class 12th - Download Now

Three Dimensional Co-ordinate Geometry
Three Dimensional Co-ordinate Geometry
Three Dimensional Co-ordinate Geometry
Three Dimensional Co-ordinate Geometry

India's Best Exam Preparation for Class 12th - Download Now

Three Dimensional Co-ordinate Geometry
Three Dimensional Co-ordinate Geometry

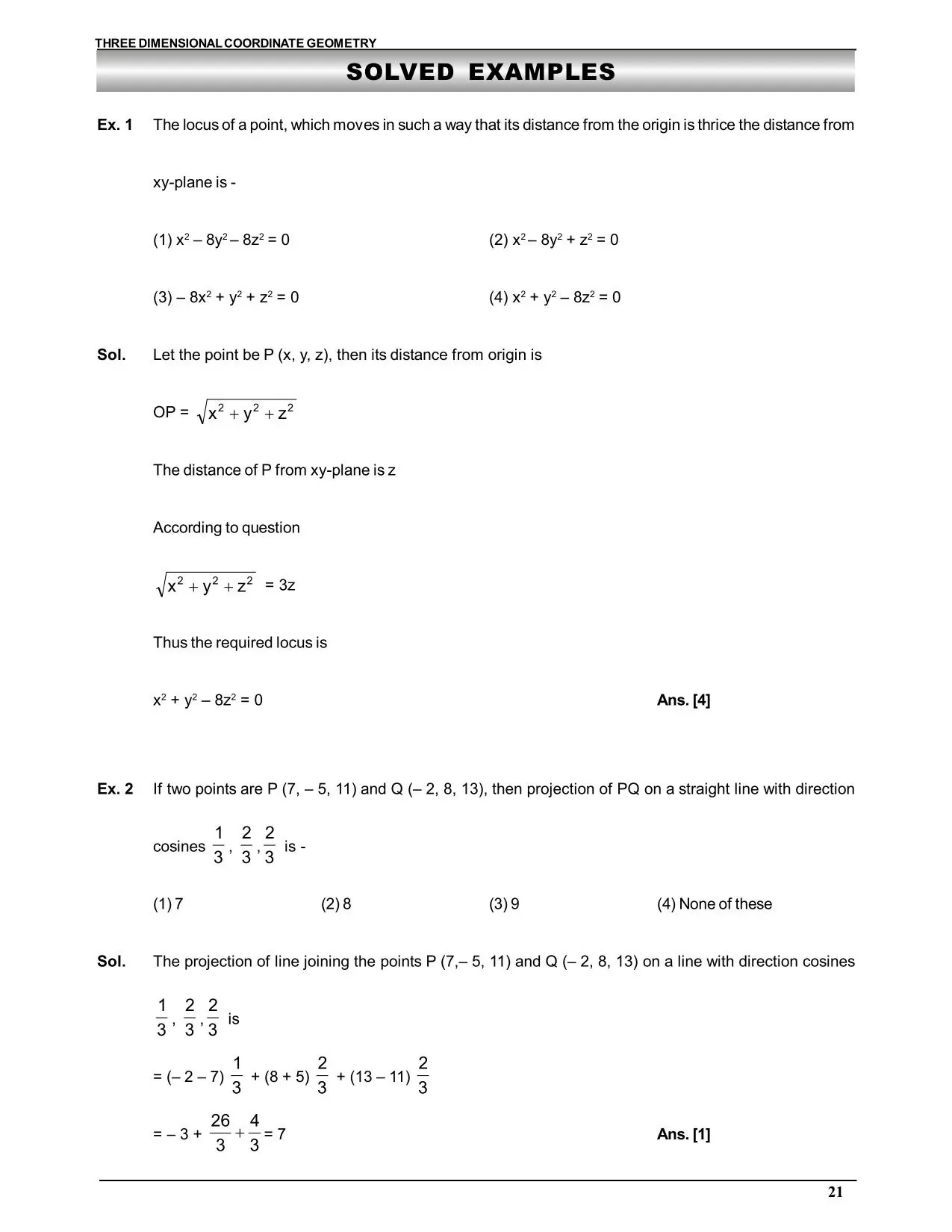

3D Geometry Class 12 Notes : Solved Examples
Three Dimensional Co-ordinate Geometry
Three Dimensional Co-ordinate Geometry
Three Dimensional Co-ordinate Geometry

How to Revise 3D Geometry Class 12 Notes

  • Learn the vector and Cartesian forms together, since questions switch between them.
  • Revise the dot and cross product from our vector algebra class 12 notes, because most of these formulas depend on them.
  • Keep a one-page formula sheet and solve previous year questions on skew lines and planes.

eSaral helps the students by providing you an easy way to understand concepts and attractive study material for IIT JEE which includes the video lectures & Study Material designed by expert IITian Faculties of KOTA. eSaral provides a series of detailed chapter wise notes for all the Subjects of class 11th and 12th.  These notes will also help you in your IIT JEE preparation. We hope these Mathematics Notes for Class 12 will be helpful for you to understand the important topics and help in remembering the key points for the exam point of view. Get Complete Class 12 Mathematics Notes  For free video lectures and complete study material, Download eSaral APP. About eSaral At eSaral we are offering a complete platform for IIT-JEE & NEET preparation. The main mission behind eSaral is to provide education to each and every student in India by eliminating the Geographic and Economic factors, as a nation’s progress and development depends on the availability of quality education to each and every one. With the blend of education & technology, eSaral team made the learning personalized & adaptive for everyone.

Frequently Asked Questions

What do 3D geometry class 12 notes cover?

3D geometry class 12 notes cover direction cosines and ratios, equations of lines in vector and Cartesian form, angle between lines, shortest distance, and the equation of a plane with its distance and angle formulas. eSaral’s notes give the formulas and worked examples for each topic.

What is the difference between direction cosines and direction ratios?

Direction cosines $(l, m, n)$ are the cosines of the angles a line makes with the axes, and $l^2 + m^2 + n^2 = 1$. Direction ratios $(a, b, c)$ are any three numbers proportional to them. Direction cosines are unique up to sign, and direction ratios are not unique.

How many marks does 3D geometry carry in CBSE Class 12 boards?

Vectors and three-dimensional geometry carry 14 marks together in the current CBSE pattern, and the split between the two changes from paper to paper. Check the latest CBSE blueprint for your year.

What are the most important topics in 3D geometry for JEE Main?

Shortest distance between lines, the equation of a plane, the distance of a point from a plane, and the angle between a line and a plane are regularly asked. Practise previous year questions to confirm the current pattern.

How do you find the shortest distance between two skew lines?

Use $d = \dfrac{|(\vec{a}_2 - \vec{a}_1)\cdot(\vec{b}_1 \times \vec{b}_2)|}{|\vec{b}_1 \times \vec{b}_2|}$, where $\vec{a}_1, \vec{a}_2$ are points on the lines and $\vec{b}_1, \vec{b}_2$ are their direction vectors.

How do you find the angle between two lines in 3D?

Use $\cos\theta = \left|\dfrac{a_1a_2 + b_1b_2 + c_1c_2}{\sqrt{a_1^2 + b_1^2 + c_1^2}\sqrt{a_2^2 + b_2^2 + c_2^2}}\right|$ with the direction ratios of the two lines.

How do you find the distance of a point from a plane?

For the plane $Ax + By + Cz + D = 0$ and the point $(x_1, y_1, z_1)$, the distance is $\dfrac{|Ax_1 + By_1 + Cz_1 + D|}{\sqrt{A^2 + B^2 + C^2}}$

Do I need 3D geometry for JEE Advanced?

Yes, 3D geometry is part of the JEE Advanced syllabus, and questions can combine it with vector algebra or calculus. eSaral’s 3D geometry class 12 notes cover the plane topics used there, such as coplanarity and the image of a point.

Is 3D geometry difficult for JEE Main?

The concepts are straightforward, but the number of formulas and switching between vector and Cartesian forms can be tricky under time pressure. A one-page formula sheet and regular practice help.

Where can I revise 3d geometry class 12 notes quickly?

Use the formula sections and handwritten pages on this eSaral page, then practise the NCERT exercises. The eSaral app also offers video lectures and study material for Class 12 Maths.
