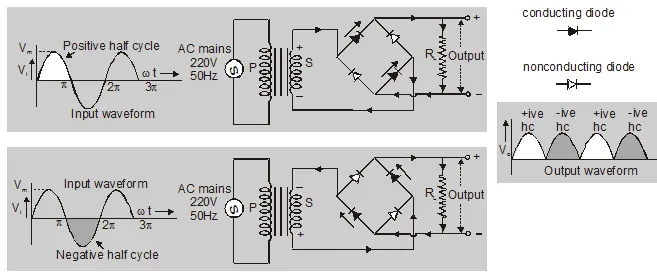

Bridge Rectifier

It is also a full-wave rectifier.

Use of bridge rectifier

The bridge rectifier is used in the rectifier type voltmeter. The circuit arrangement is shown in fig. The rectifier elements are p-n junction diodes with a sensitive DC. ammeter as a load. This circuit can be used for the measurement of AC as well as DC voltage and currents. The DC ammeter reads the average value of currents. This may be calibrated to give r.m.s. values.

The bridge rectifier has the following advantages

• No center tap is required in the transformer secondary, hence both half cycles are similar.
• PIV across each diode is $\mathrm{E}_{0}$ (which is 2 $\mathrm{E}_{0}$ in a full wave rectifier).
• For a given power, output power transformer of small size can be used as the current in both the primary and secondary of the plate supply transformer flows for the entire cycle.

The main disadvantages of bridge rectifier are

• The circuit requires two extra diodes
• It has poor voltage regulation.

The efficiency of rectifier:

The efficiency rectifier is defined as the ratio of DC output power to the AC input power

$\eta=\frac{\text { dc power delivered to the load }}{\text { ac input power from transformer sec ondary }}$

$=\frac{P_{d c}}{P_{a c}}$

$=\frac{\mathrm{I}^{2} \mathrm{dc} \mathrm{R}_{\mathrm{L}}}{\mathrm{I}_{\mathrm{rms}}^{2}\left(\mathrm{R}_{\mathrm{F}}+\mathrm{R}_{\mathrm{L}}\right)}$

For bridge rectifier

$\eta=\frac{0.812 R_{L}}{2 R_{f}+R_{L}}$

for ideal diode

$R_{f}=0$

$\eta=81.2 \%$
