Mind Maps for Kinematics 1D Revision - Class XI, JEE, NEET

Kinematics 1D, officially called "Motion in a Straight Line," is Chapter 3 of the Class 11 NCERT Physics syllabus. It studies how objects move along a single axis — covering displacement, velocity, acceleration, equations of motion, and graphical analysis. It is a foundational chapter for both JEE Main and NEET, as per the NTA syllabus.

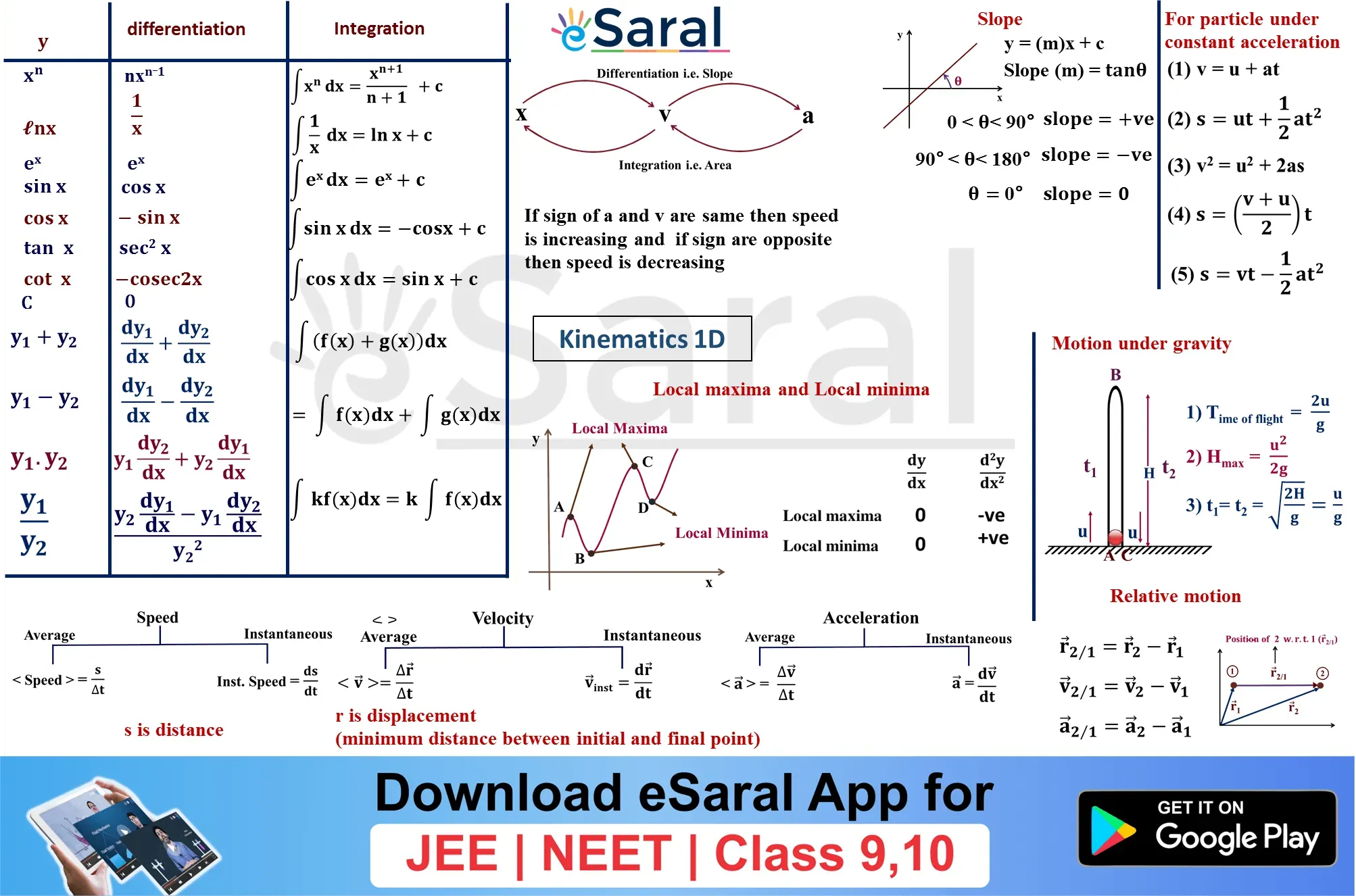

There are approximately 12–15 core formulas in Kinematics 1D. The three equations of motion are the most important. Additional formulas cover distance in the nth second, relative velocity, maximum height in free fall, time of flight, and relations between average velocity and instantaneous velocity. The mind map on this page organises all of them by sub-topic.

Yes, one day is enough for revision — not for first learning — if you already have basic familiarity with the chapter. Use the mind map for a 30-minute active recall session: read, hide, reproduce from memory, then solve 8–10 targeted questions. This method is practised in eSaral's Kota-quality online batches and is effective one day before a JEE mock test.

The three most important graphs are: (1) displacement-time (s-t) graph — slope gives velocity; (2) velocity-time (v-t) graph — slope gives acceleration, area gives displacement; (3) acceleration-time (a-t) graph — area gives change in velocity. JEE Main regularly asks students to interpret unusual or piecewise graph shapes. These are covered in the dedicated graphical analysis section of the mind map.
