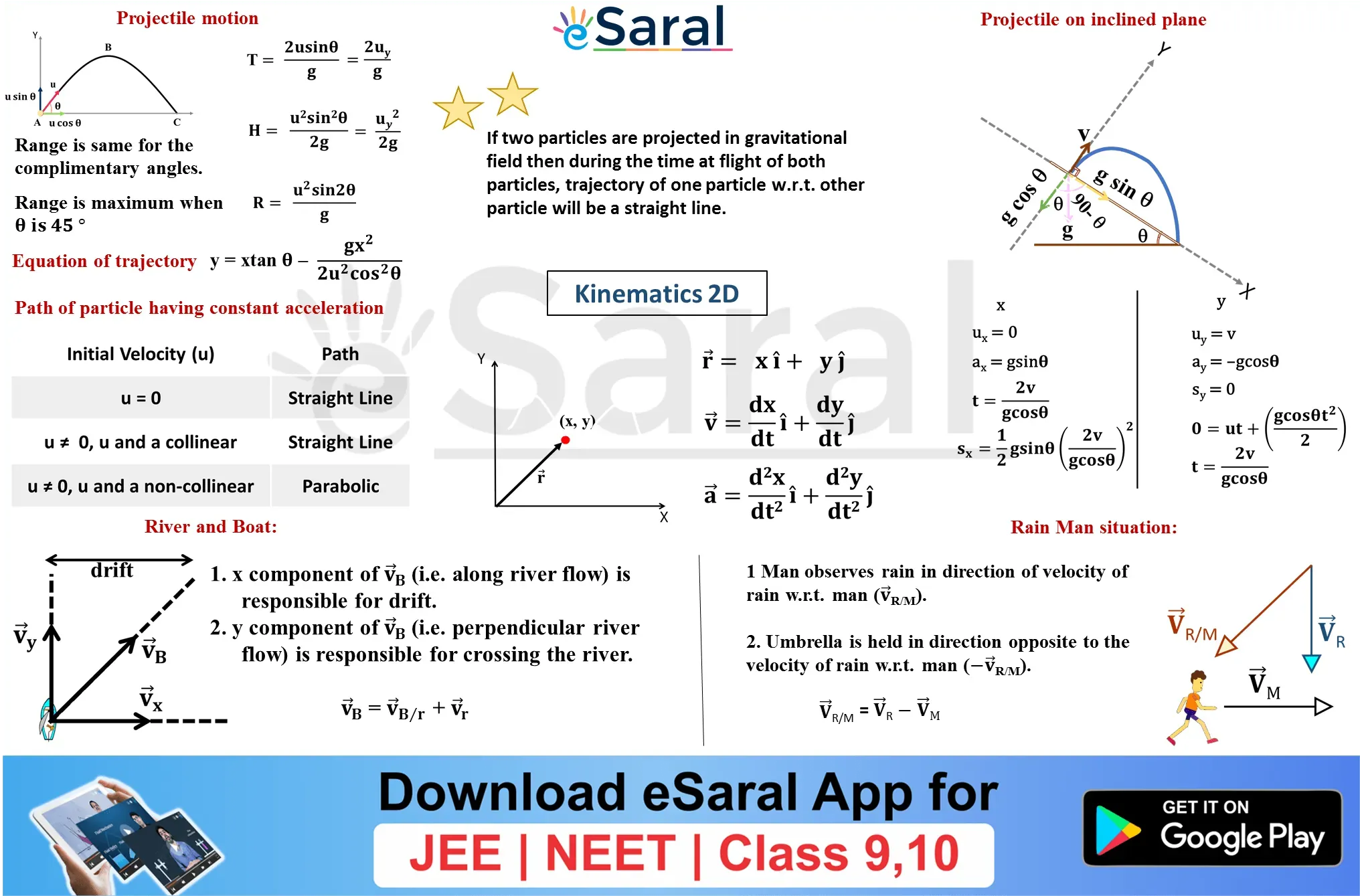

Mind Maps for Kinematics 2D Revision - Class XI, JEE, NEET

Kinematics 2D refers to the study of motion in two perpendicular dimensions (x and y axes) without considering the forces causing that motion. In the NCERT Class 11 syllabus, it appears as Chapter 4 — "Motion in a Plane" — and covers projectile motion, relative motion, uniform circular motion, and vector resolution of velocity and acceleration.

The most tested formulas are: time of flight $T = \frac{2u\sin\theta}{g}$, maximum height $H = \frac{u^2\sin^2\theta}{2g}$, horizontal range $R = \frac{u^2\sin2\theta}{g}$, and equation of trajectory $y = x\tan\theta - \frac{gx^2}{2u^2\cos^2\theta}$. For JEE Main, relative motion formulas (river-boat problems) and circular motion acceleration $a_c = \frac{v^2}{r}$ are equally important.

Based on NTA's official JEE Main question papers from 2019 to 2024, Kinematics 2D typically contributes 1 to 3 questions per session. Projectile motion (both horizontal and oblique) is the most frequently tested case, appearing in nearly every session. Relative motion and uniform circular motion each appear roughly once per year on average.

Yes. NEET consistently includes 1–2 questions from this chapter every year. Projectile motion and uniform circular motion are the highest-priority sub-topics for NEET. The questions tend to be more formula-application based and less derivation-heavy than JEE questions, so mastering the key formulas through a mind map is an efficient strategy.

In horizontal projection, the initial velocity is entirely horizontal ($u_y = 0$), so the object is launched parallel to the ground — like a ball rolling off a table. In oblique projection, the initial velocity has both horizontal ($u\cos\theta$) and vertical ($u\sin\theta$) components — like a ball kicked at an angle. The formulas for time of flight, range, and maximum height differ between the two cases.
