Mind Maps for Thermodynamics Revision - Class 11, JEE, NEET

Thermodynamics for Class 11 (NCERT Chapter 12) covers the Zeroth, First, Second, and Third Laws of thermodynamics, thermodynamic processes (isothermal, adiabatic, isochoric, isobaric), PV diagrams, Carnot engine efficiency, and entropy. JEE additionally tests deeper application of adiabatic relations and multi-process problems, while NEET focuses more on conceptual statements of the laws and basic numerical application.

JEE Main typically includes 2–4 questions from thermodynamics each year. According to NTA's historical paper pattern, the chapter is almost always represented, and questions frequently combine thermodynamic process formulas with ideal gas law concepts. High-frequency sub-topics include First Law calculations, Carnot efficiency, and PV diagram area interpretation

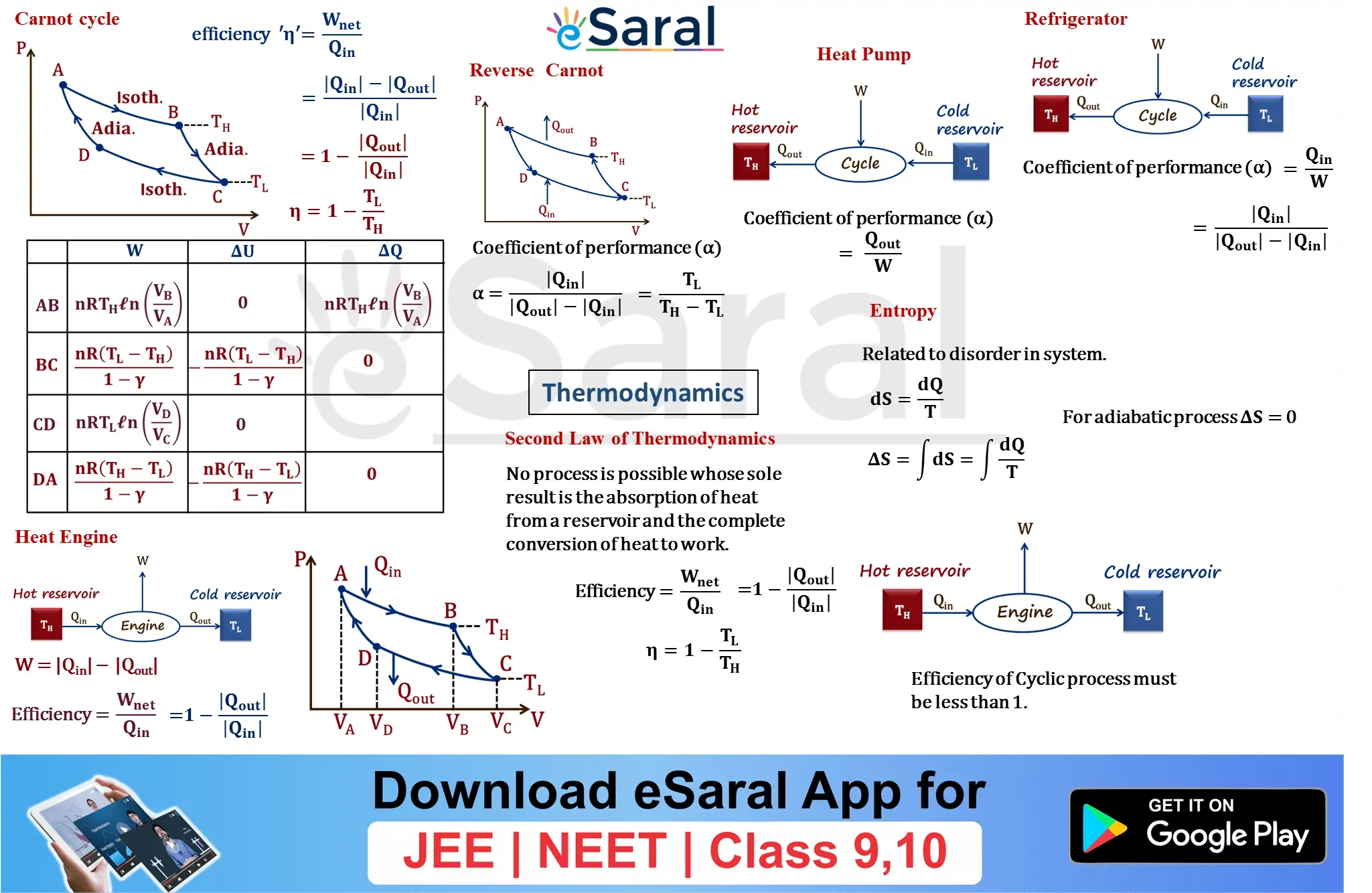

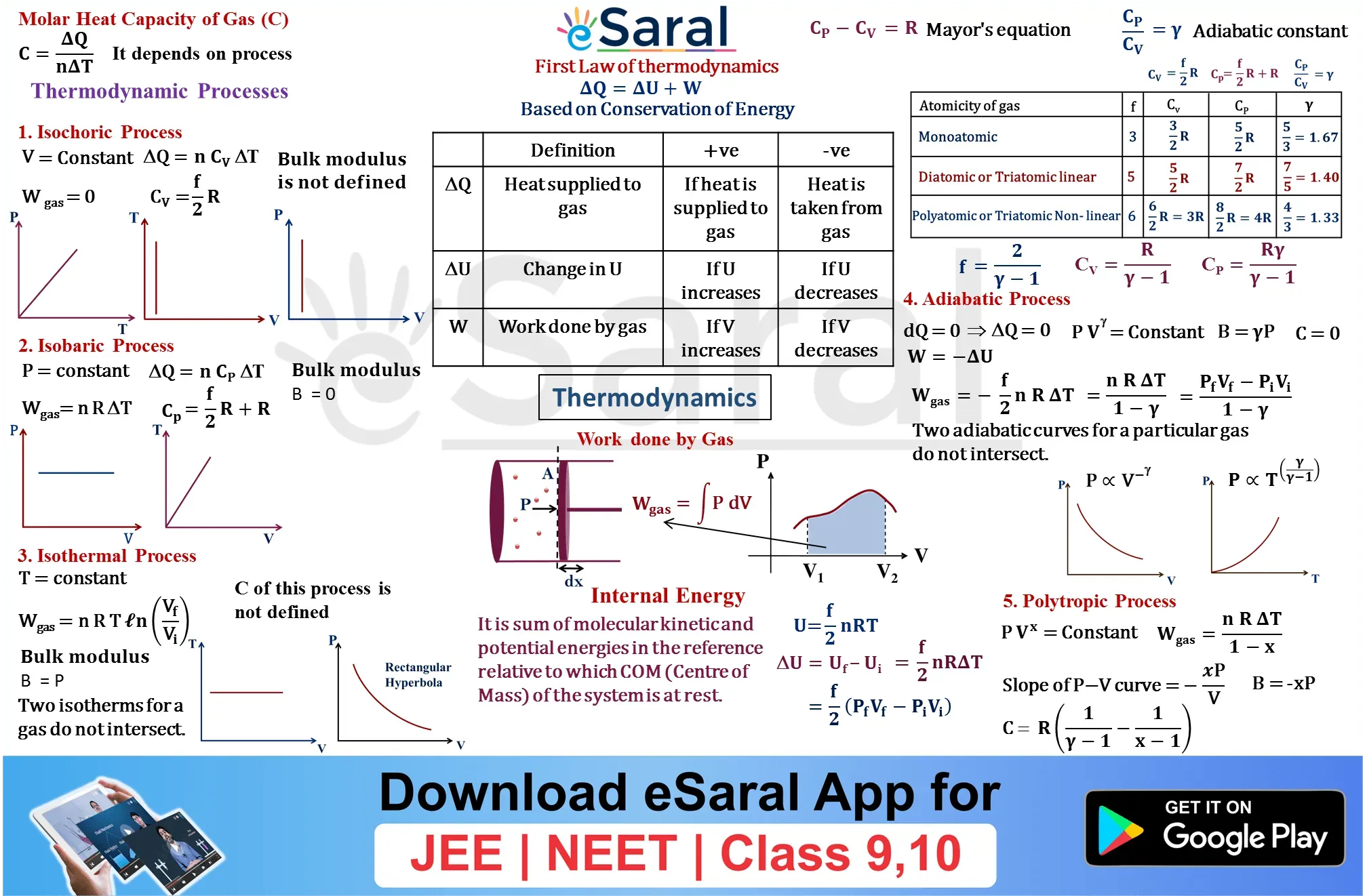

Yes, for revision purposes the two mind maps on this page cover all the formulas, laws, and process relationships tested in JEE Main and NEET. However, mind maps work best after you have already studied the chapter in detail. Use them to consolidate knowledge, not as a first-time learning resource. Pair them with solved NCERT examples for best results.

In an isothermal process, temperature stays constant (ΔU = 0 for ideal gas), and all heat absorbed is converted to work. In an adiabatic process, no heat is exchanged (Q = 0), so any work done comes entirely from the internal energy of the gas. On a PV diagram, an adiabatic curve is always steeper than an isothermal curve at the same point.

Carnot engine efficiency is η = 1 − T₂/T₁, where T₁ is the temperature of the hot reservoir and T₂ is the temperature of the cold reservoir (both in Kelvin). This is the maximum possible efficiency for any heat engine operating between these two temperatures. No real engine can match or exceed Carnot efficiency, as stated by the Second Law of Thermodynamics.
