Surface Area & Volumes - Class 9 Maths Chapter 11 Short Notes (Mind Maps)

Lateral Surface Area (LSA) includes only the side or curved surfaces of a shape — not the base(s). Total Surface Area (TSA) adds the area of all bases to the LSA. For example, a cylinder's LSA = 2πrh, but its TSA = 2πrh + 2πr² (adding two circular bases). Always read the question carefully to know which one is required.

Yes. The concepts in Class 9 Chapter 11 form the base for mensuration in JEE Main and JEE Advanced. Questions in JEE often involve combinations of solids — for example, a cone placed on a cylinder, or a sphere melted into cones. Students who learn these formulas with understanding (not just memorisation) find 3D geometry in JEE significantly easier. eSaral's IIT Bombay faculty integrate this foundation from Class 9 onwards

Use π = 22/7 when the radius is a multiple of 7 (e.g., r = 7, 14, 21). Use π = 3.14 when the radius involves decimals or the question explicitly states it. CBSE problems always specify which value to use. If no instruction is given, either value is acceptable — but 22/7 is preferred in most NCERT exercises.

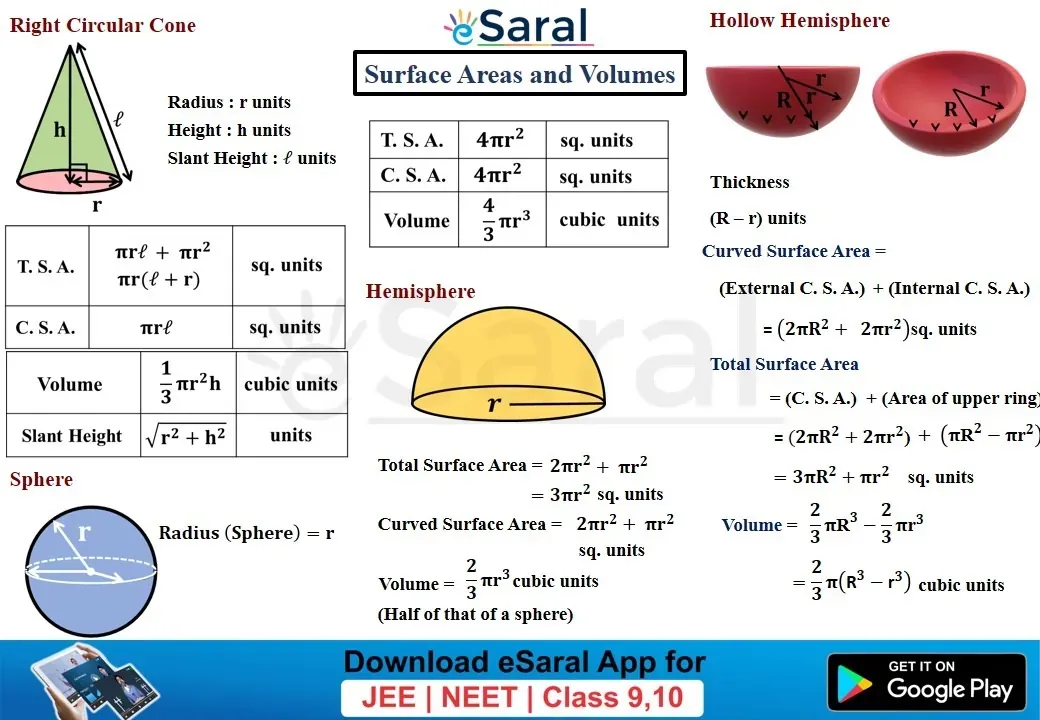

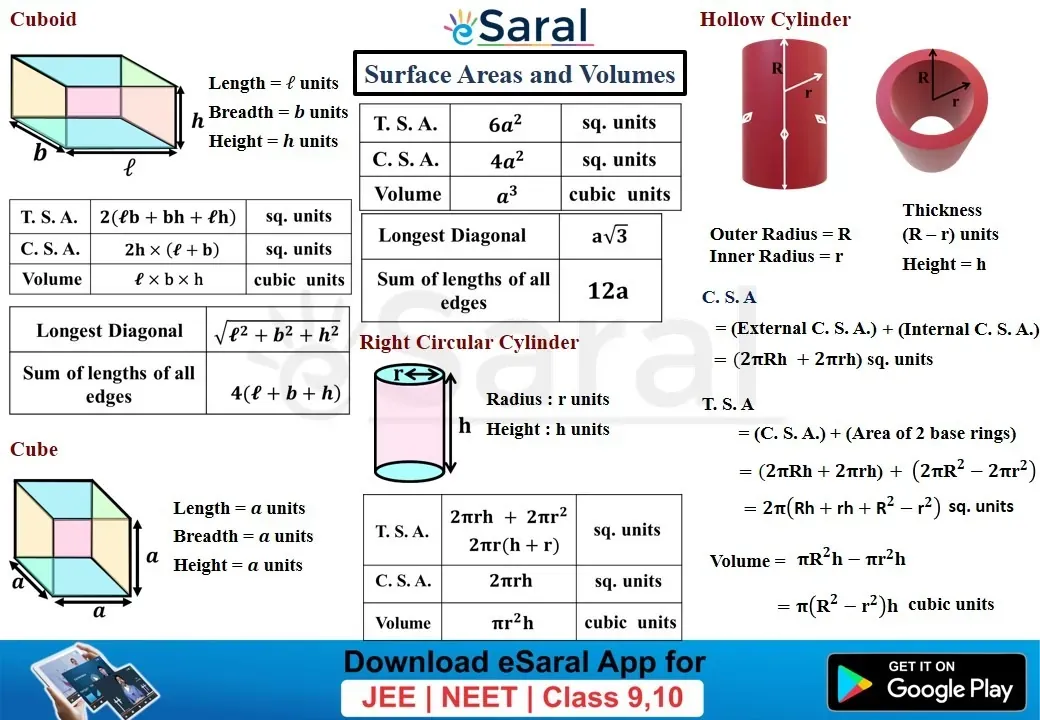

Class 9 Chapter 11 covers exactly six 3D shapes: cuboid, cube, right circular cylinder, right circular cone, sphere, and hemisphere. For each shape, students need to know the lateral/curved surface area, the total surface area, and the volume. The CBSE exam can test any combination of these six shapes and their three measurements.
