Mind Maps for Magnetic Effects of Current Revision - Class XII, JEE, NEET

Magnetic Effects of Current (NCERT Class 12 Physics Chapter 4) covers the Biot-Savart Law, Ampere's Circuital Law, magnetic field due to straight wires, circular loops, solenoids, and toroids, the Lorentz force on moving charges and current-carrying conductors, the cyclotron, and the moving coil galvanometer. All these topics are directly testable in JEE Main, JEE Advanced, and NEET.

JEE Main typically includes 2 to 3 questions from Moving Charges and Magnetism in each session. Based on NTA papers from 2019 to 2024, the chapter consistently appears, with Biot-Savart Law, Ampere's Law applications, and force on moving charges being the most frequently tested sub-topics.

The most frequently tested formulas in NEET are the magnetic field at the centre of a circular loop (B = μ₀I/2R), the force on a moving charge (F = qvB sinθ), the solenoid field (B = μ₀nI), and the galvanometer equation (θ = nABI/k). Committing these four to memory covers the majority of NEET questions from this chapter.

Biot-Savart Law calculates the magnetic field produced by an individual current element and works for any geometry, but requires integration. Ampere's Circuital Law uses a closed loop integral and is far faster when the current distribution has high symmetry (like infinite wires, solenoids, and toroids). Use Ampere's Law whenever there is cylindrical or planar symmetry.

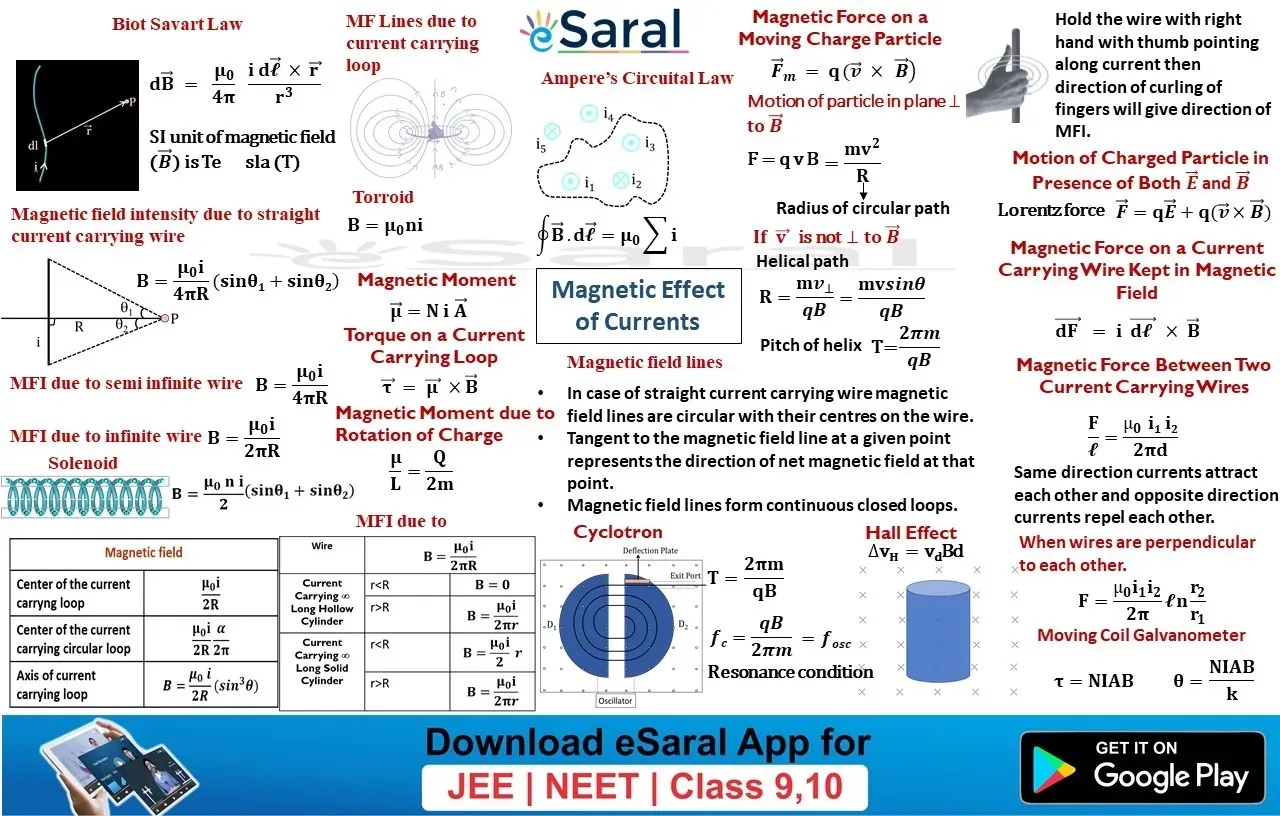

Click the Download button on this page to get the Magnetic Effects of Current mind map as a PDF. The file is free and contains all six concept branches — Biot-Savart Law, Ampere's Law, Lorentz force, solenoid/toroid fields, torque on a current loop, and galvanometer — with formulas and key conditions clearly labelled.
