Mind Maps for Haloalkane & Haloarenes Revision - Class 12, JEE, NEET

Mind maps are revision tools, not primary study resources. Use them after you have studied the NCERT chapter and practised problems. For JEE Main and NEET, pair these mind maps with NCERT Solutions, previous year questions, and topic-wise tests to build both conceptual clarity and problem-solving speed.

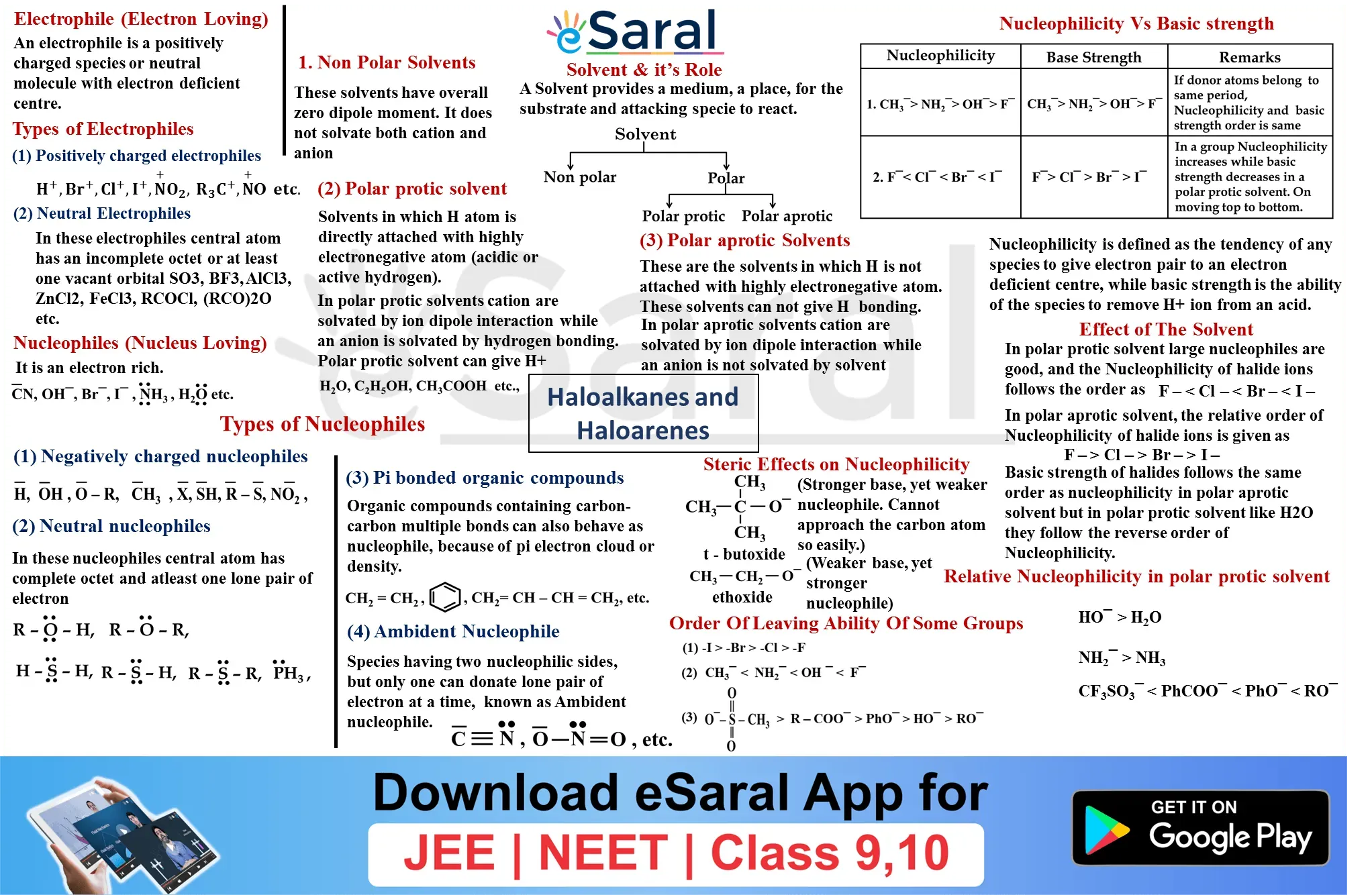

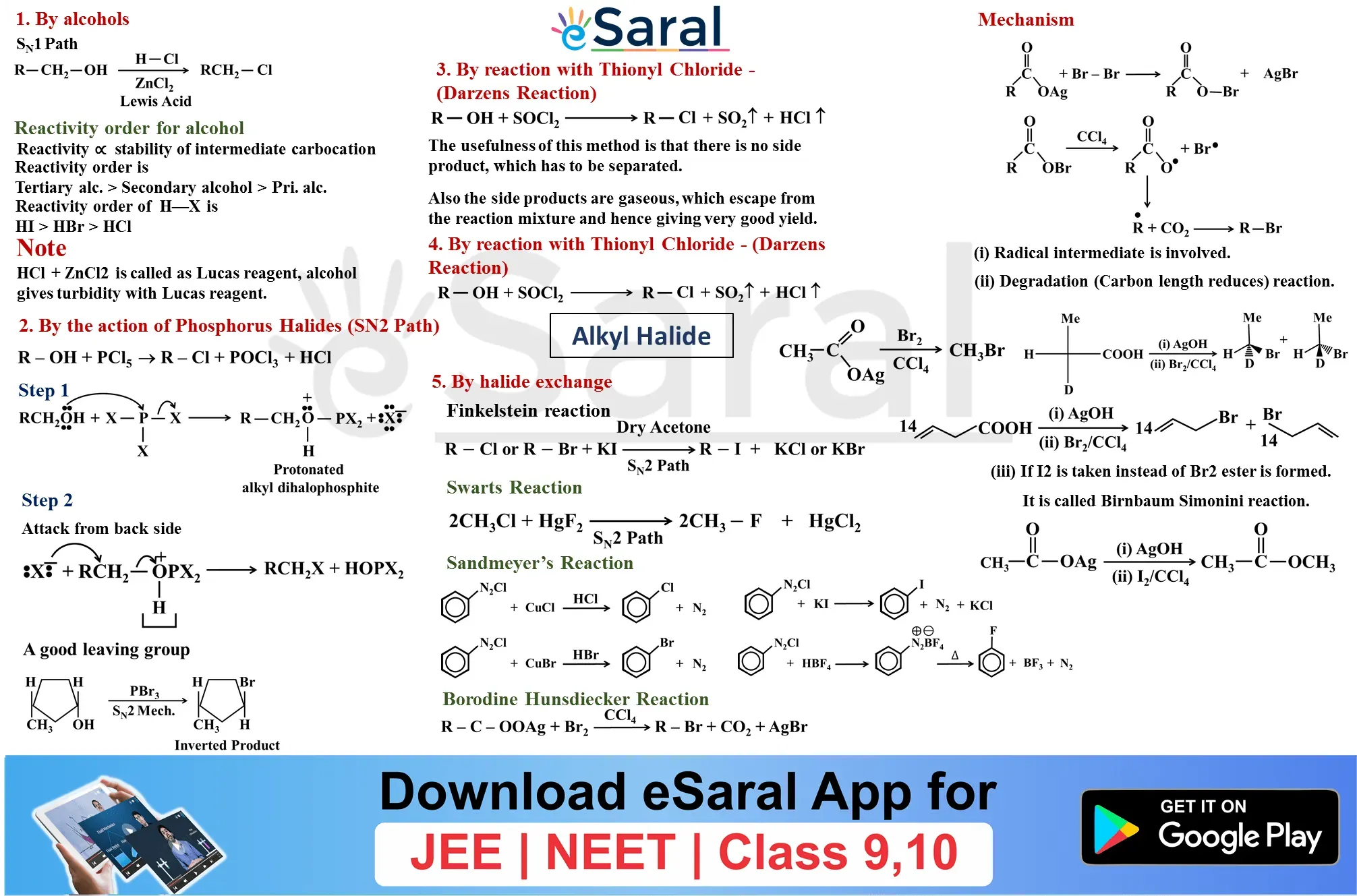

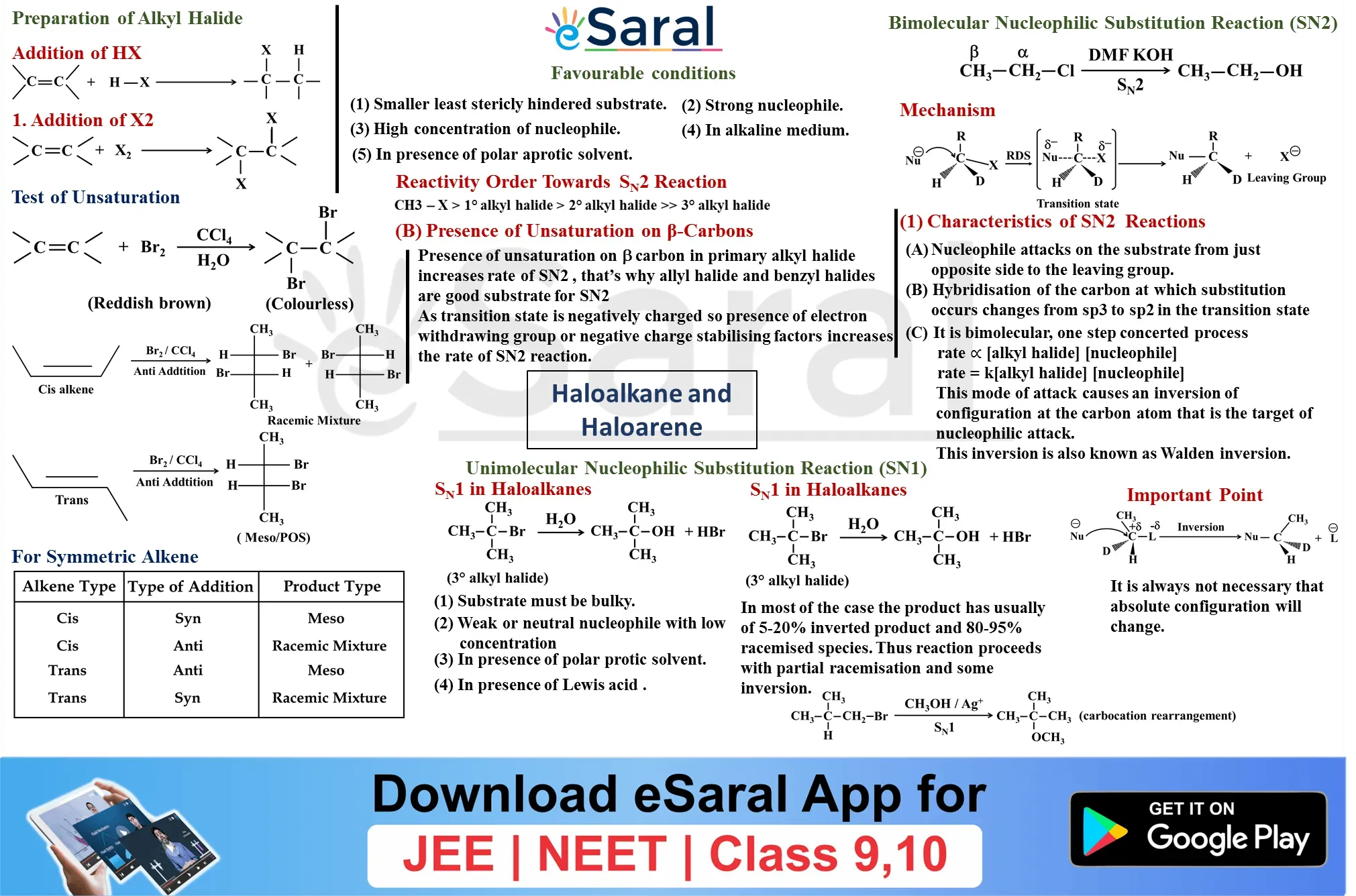

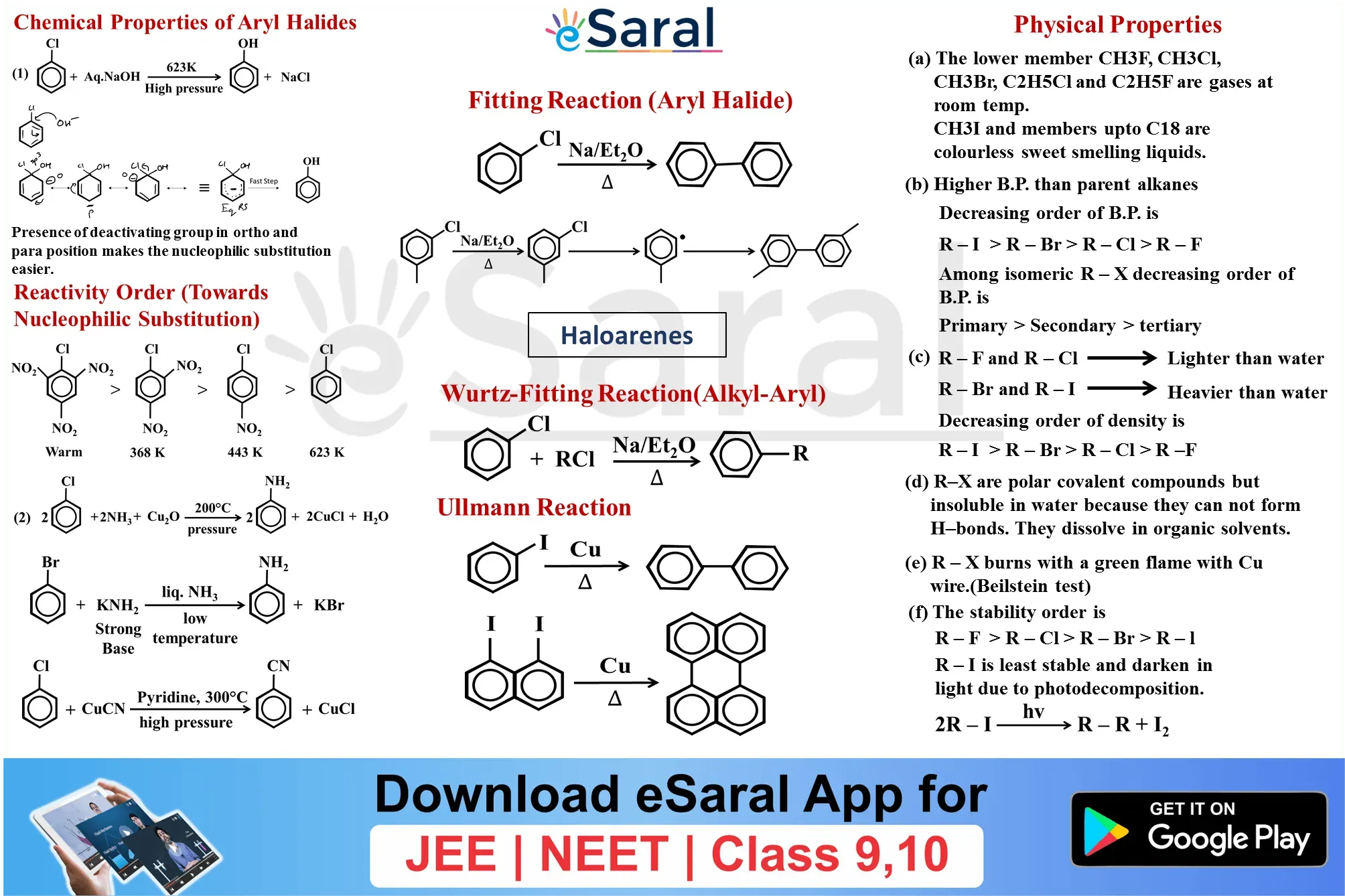

Six mind maps are available: Reaction Mechanism Part 1, Reaction Mechanism Part 2, Alkyl Halide, Elimination Reaction, Substitution vs Elimination Reaction, and Haloarenes. Each covers a distinct subtopic and can be downloaded as a PDF directly from this page.

Haloalkanes are formed when halogen atoms replace hydrogen in open-chain (aliphatic) hydrocarbons. Haloarenes are formed when halogens replace hydrogen on an aromatic ring. The C–X bond in haloarenes has partial double bond character due to resonance, making haloarenes significantly less reactive toward nucleophilic substitution than haloalkanes.

NCERT notes present information linearly, chapter by chapter. Mind maps present the same information radially — showing relationships between concepts rather than listing them sequentially. This makes it faster to recall connected ideas during an exam. For example, a single mind map can show you simultaneously why SN2 favours 1° substrates, why E2 favours 3° substrates, and what happens at 2° — a comparison that takes multiple paragraphs in a textbook.

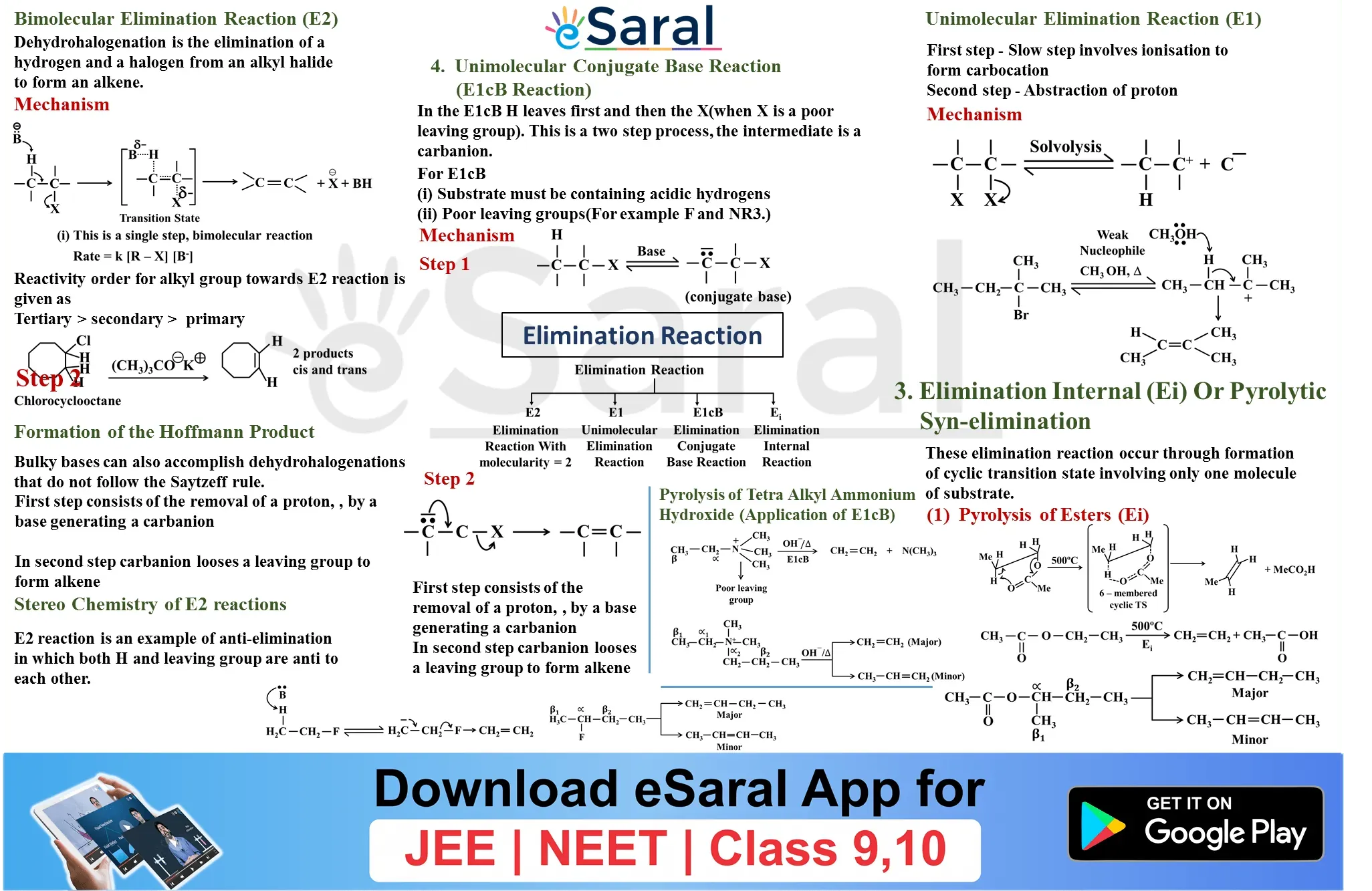

Saytzeff's rule states that in an elimination reaction, the major product is the more substituted (more stable) alkene. It appears in the Elimination Reaction mind map. In JEE and NEET, questions testing Saytzeff's rule typically ask you to identify the major alkene product from a given tertiary or secondary alkyl halide under E2 conditions.

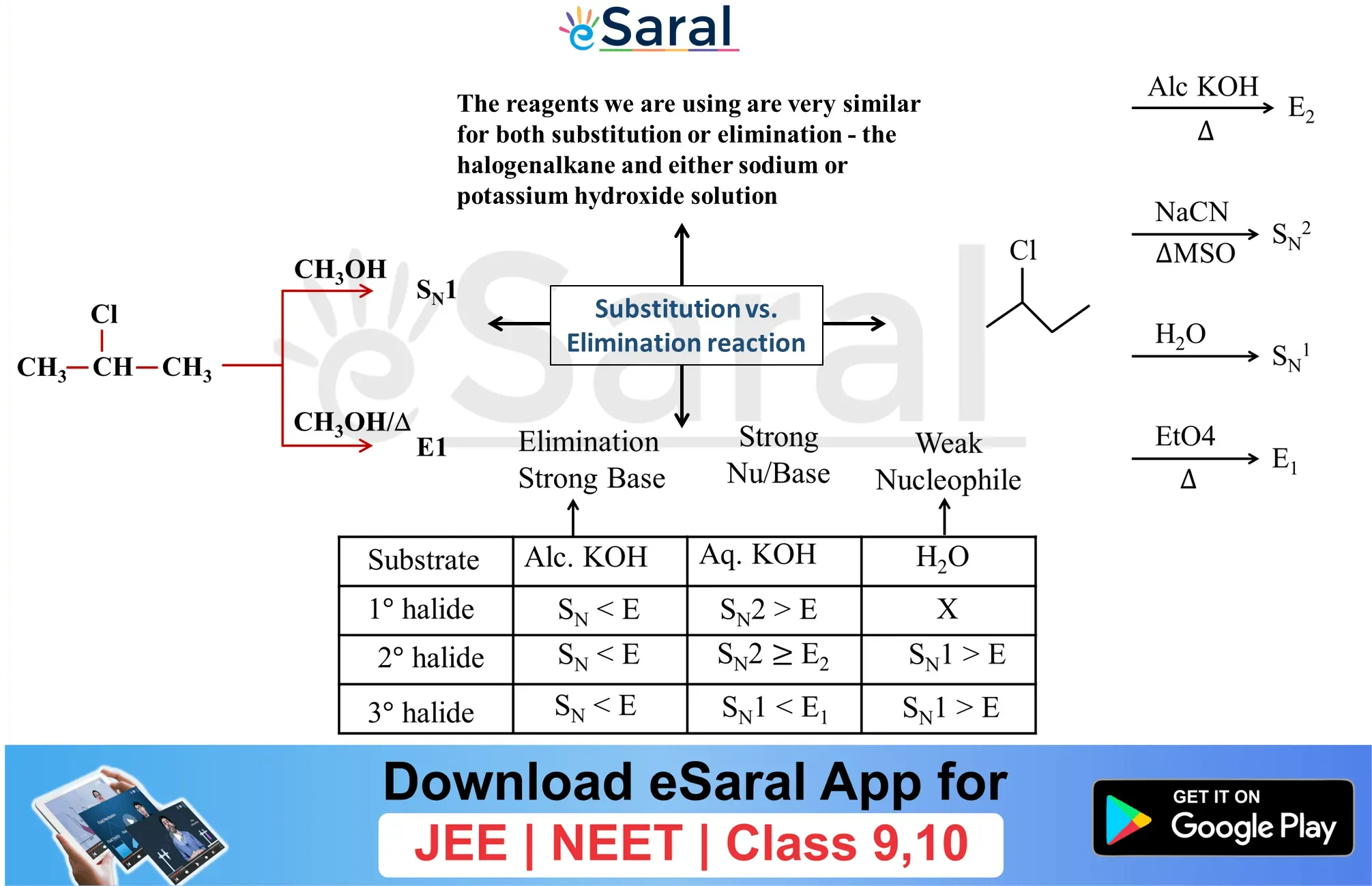

SN1 vs SN2 mechanism — including stereochemical outcomes such as Walden inversion and racemisation — is the most frequently tested concept in JEE Advanced from this chapter. Substitution vs Elimination competition (E2 over SN2 with bulky bases) is a close second. Both are covered in depth in Reaction Mechanism Mind Maps 1 and 2.
