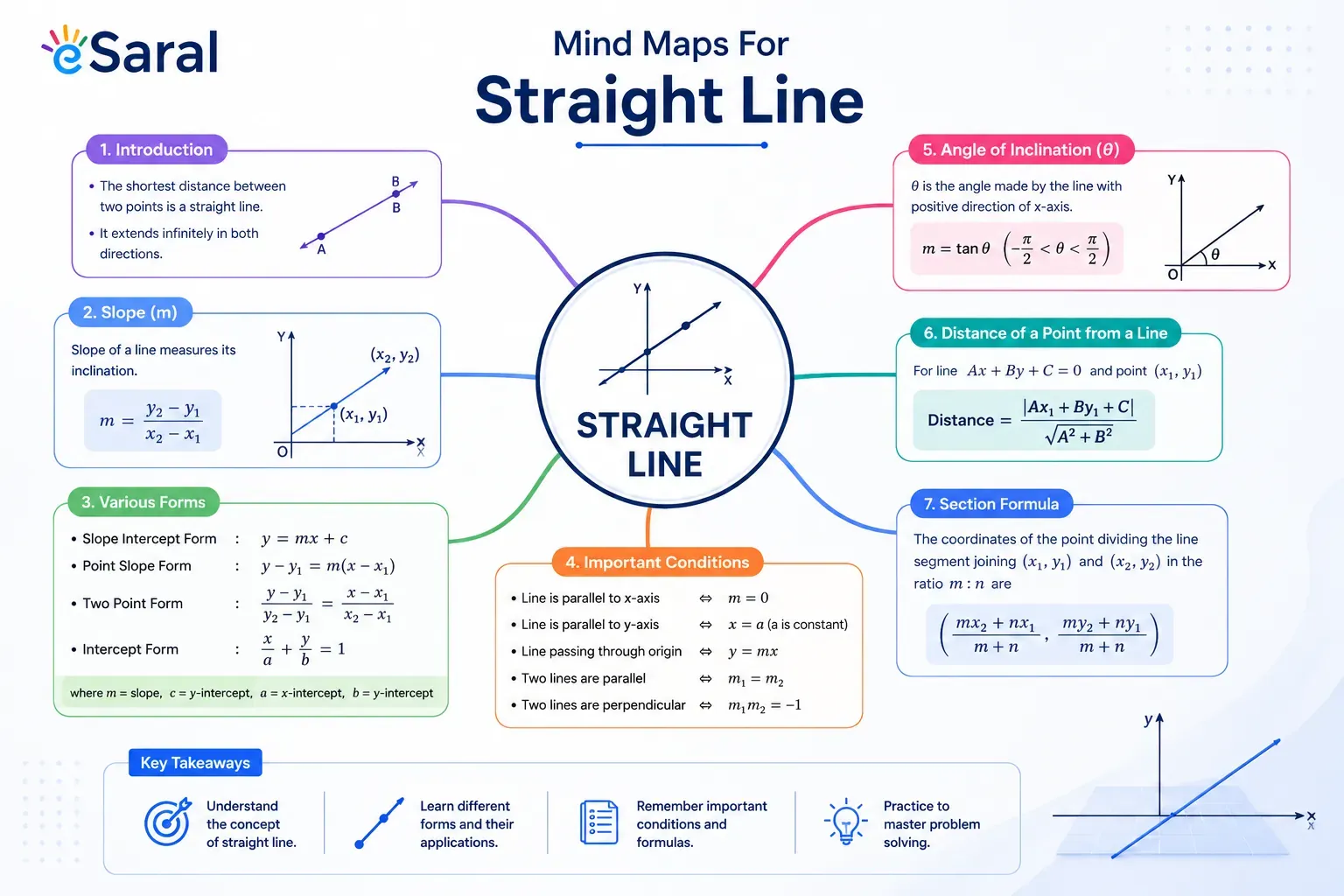

Mind Maps For Straight Line - Class 11, 12 , JEE (Main + Advanced)

Straight Line is introduced in Class 11 (NCERT Chapter 10). The pair of straight lines and advanced coordinate geometry extensions appear in Class 12 and in the JEE Advanced syllabus. These mind maps are designed to serve students from Class 11 through their JEE preparation year

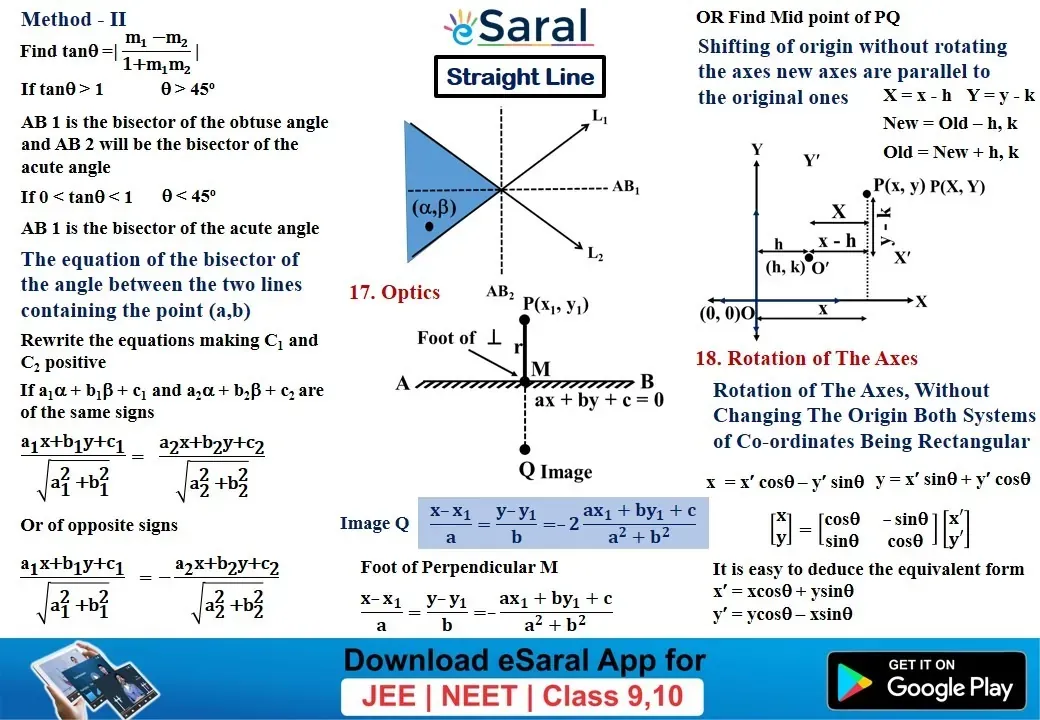

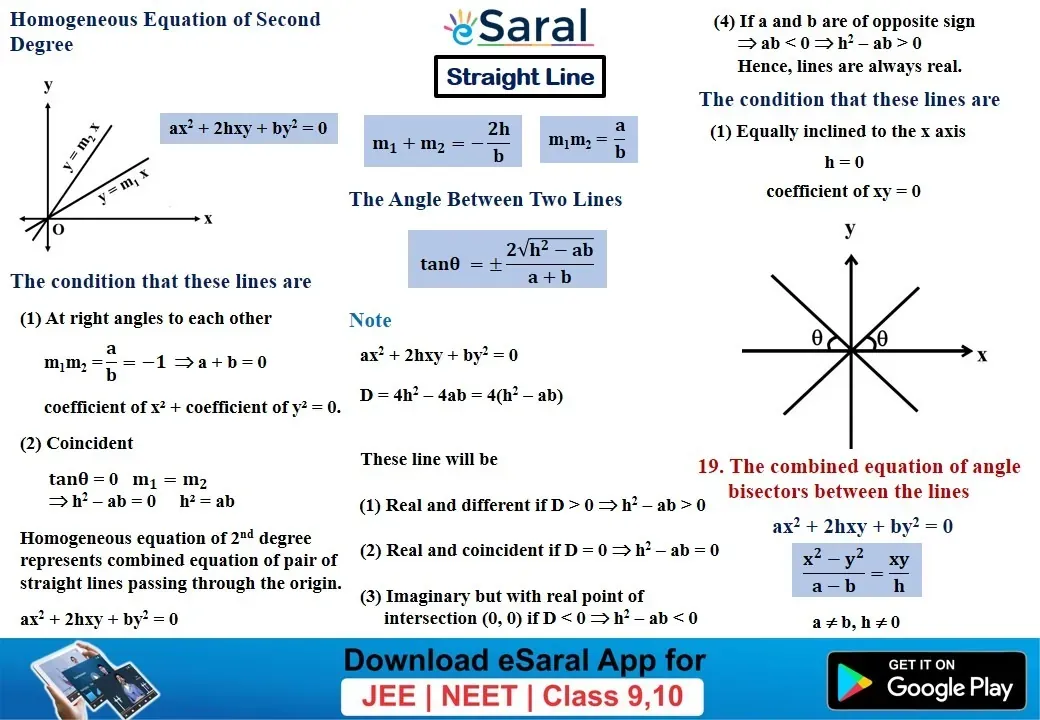

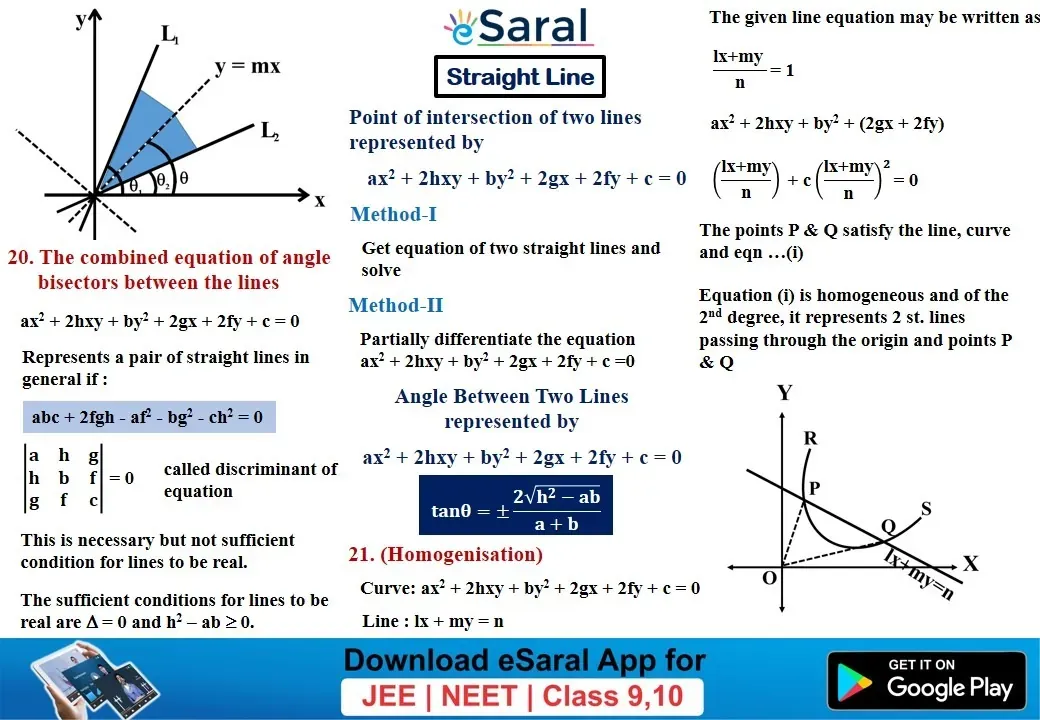

Maps 7 and 8 specifically target JEE Advanced topics — pair of straight lines, angle bisectors of combined equations, and homogeneous second-degree forms. Maps 1–6 remain relevant as supporting revision. For JEE Advanced, supplement the maps with solved problems from past papers (2018–2026).

Yes, for JEE Main these 9 maps cover every formula and concept tested. JEE Main typically asks direct formula-application and short-calculation problems from Straight Line. Practice 40–50 previous year questions alongside the maps for the best results. NTA's official JEE Main syllabus confirms Straight Line is part of Coordinate Geometry Unit 4

Yes. Each map is a PDF formatted for A4 print. One student who commented on this page noted they were long when printed — that is because detail is necessary for JEE Advanced coverage. For board-only revision, Mind Maps 1–4 are the most concise.

Based on NTA's released JEE Main papers from 2019 to 2026, Straight Line contributes 2–3 questions per paper (roughly 8–12 marks). It is one of the most reliably scoring topics in the Mathematics section if formulas are memorised accurately.

eSaral's app (available on Android and iOS) includes full Straight Line video lectures by IIT Bombay faculty with AIR-2 and AIR-41 verified ranks, a 5-layer doubt-solving system, and chapter tests. Download the eSaral app and search "Straight Line" to access the full lecture series alongside these maps.
