Mind Maps For Ellipse - Class 11, 12 , JEE (Main + Advanced)

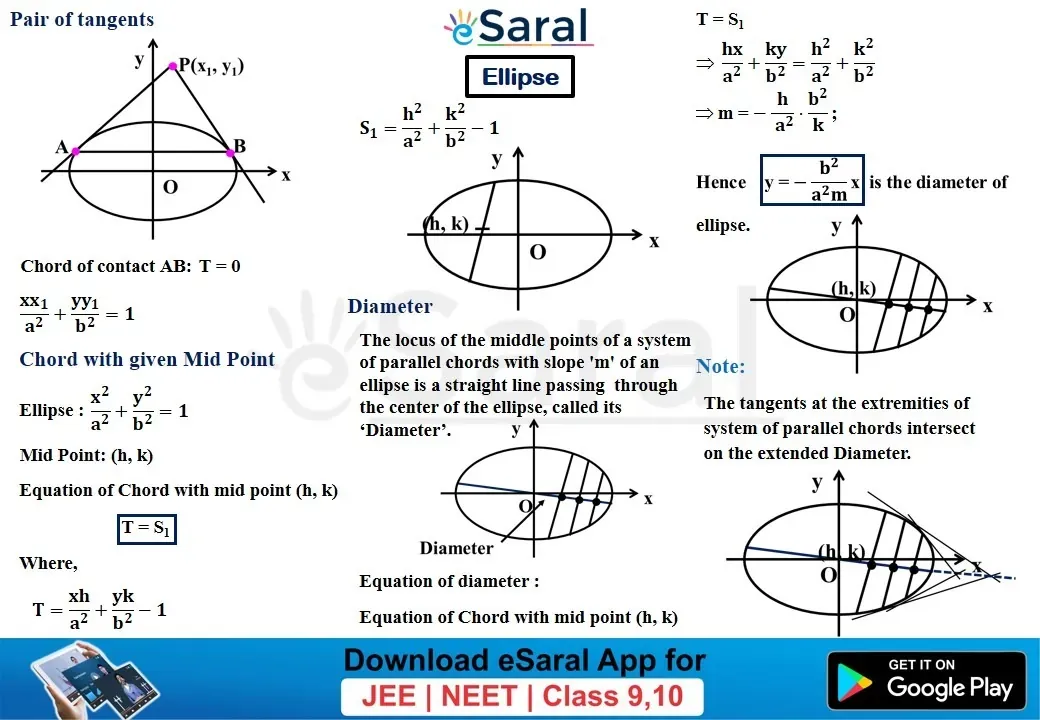

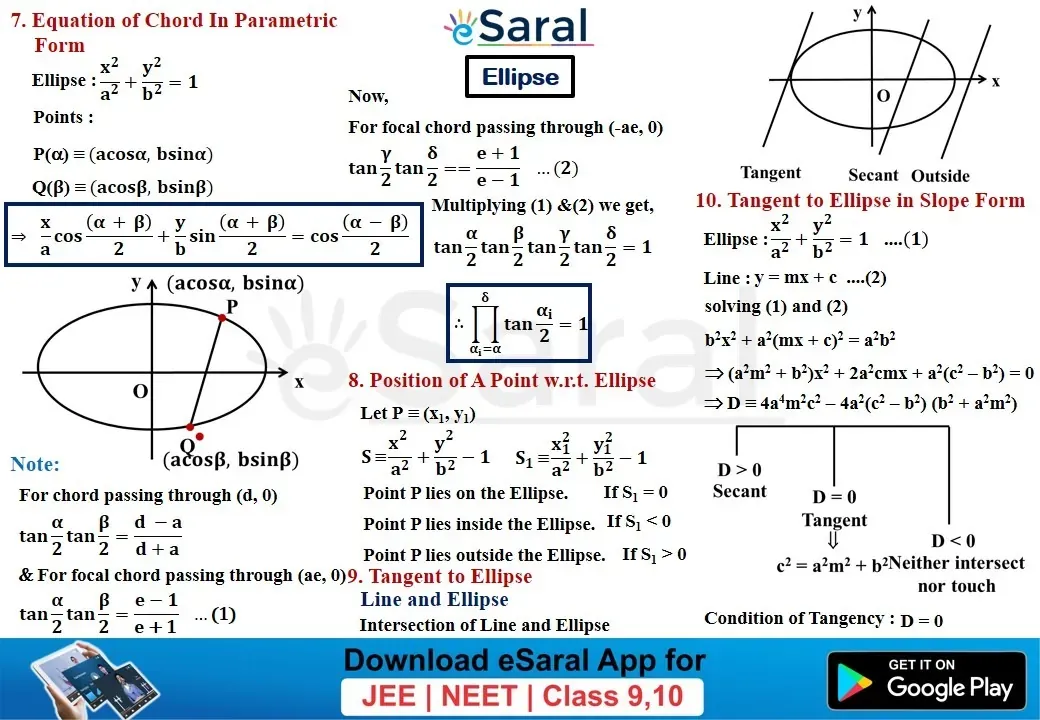

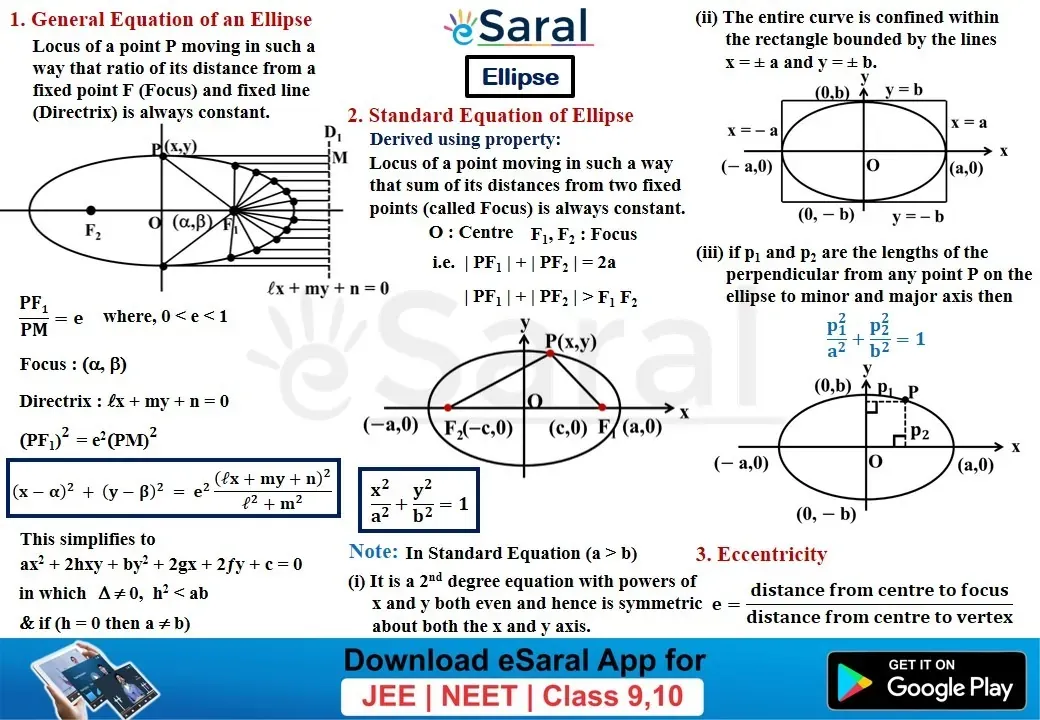

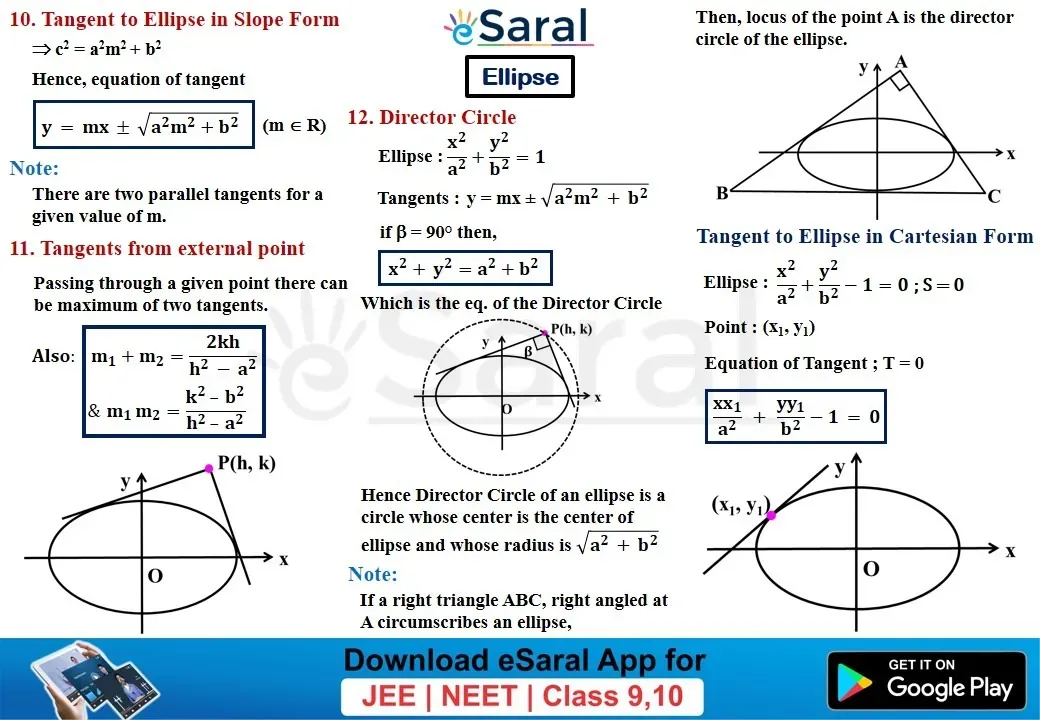

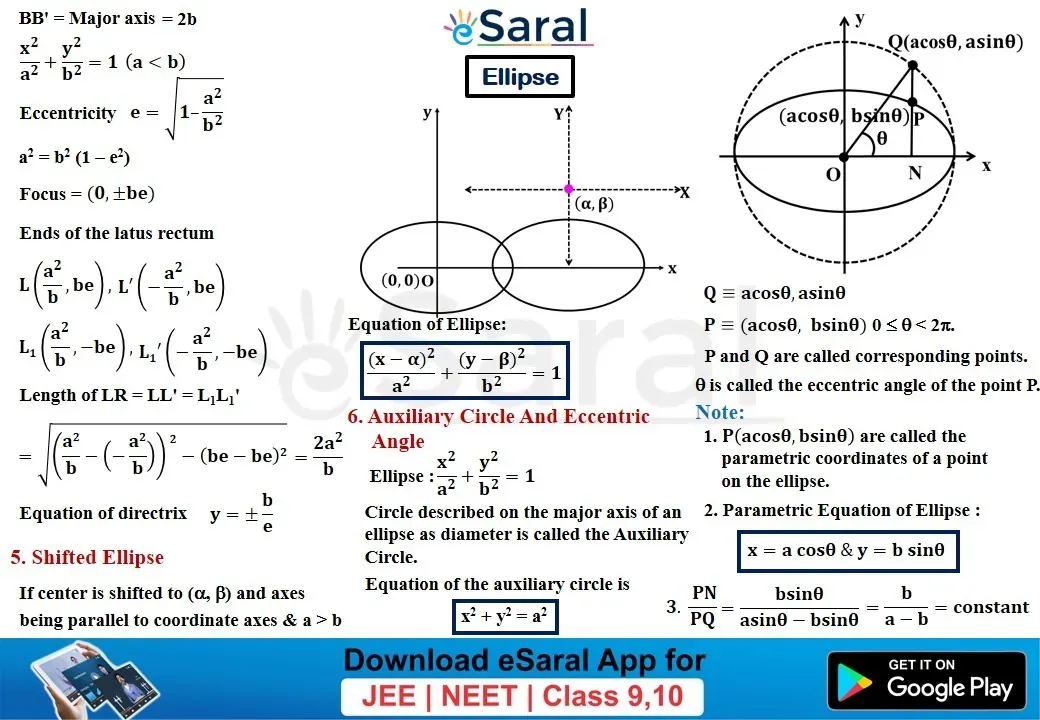

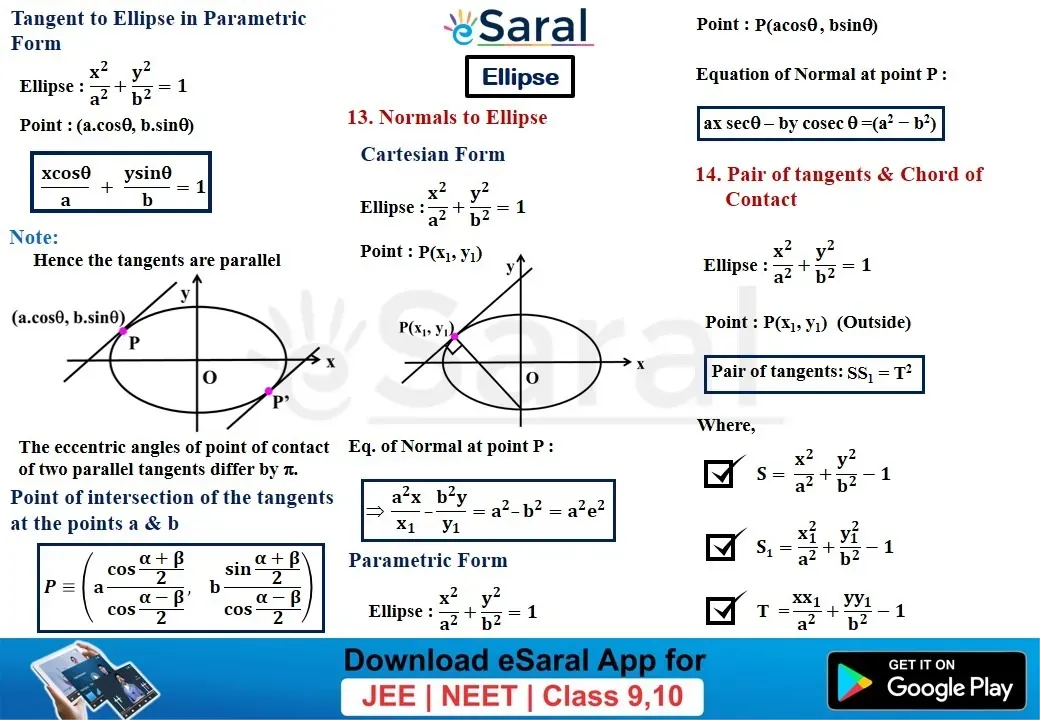

Ellipse mind maps for JEE cover standard equations (horizontal and vertical), eccentricity, foci, directrices, latus rectum, parametric form, tangent and normal equations, chord of contact, pole and polar, and auxiliary circle. eSaral's 8 maps divide these into focused clusters so each revision session has a clear goal rather than trying to absorb everything at once.

JEE Main typically includes 1–2 questions from the Conic Sections chapter per paper, and ellipse shares this allocation with parabola and hyperbola. Based on NTA's official pattern since 2019, at least one question directly tests ellipse properties — most commonly on tangent conditions, eccentricity, or latus rectum — in each session.

Yes, ellipse is important for JEE Advanced. It appears both as a standalone problem and as part of multi-concept coordinate geometry questions. JEE Advanced frequently combines ellipse with straight lines, circles, or application-based questions on reflection and focal properties. Mind Maps 3, 4, and 7 specifically address the high-frequency JEE Advanced sub-topics.

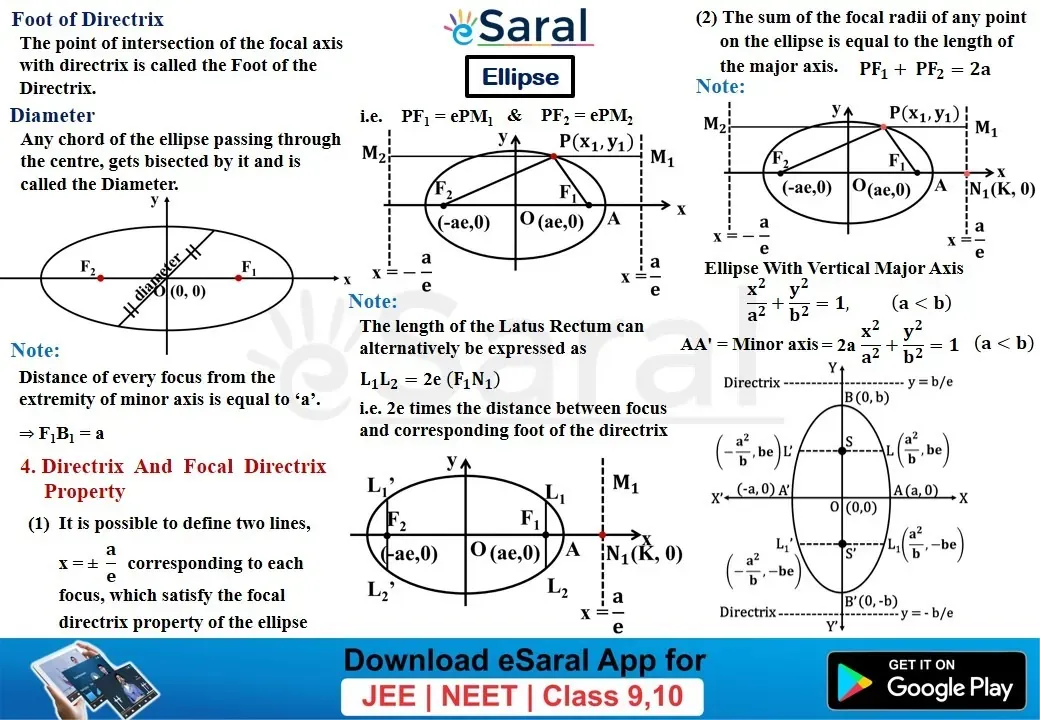

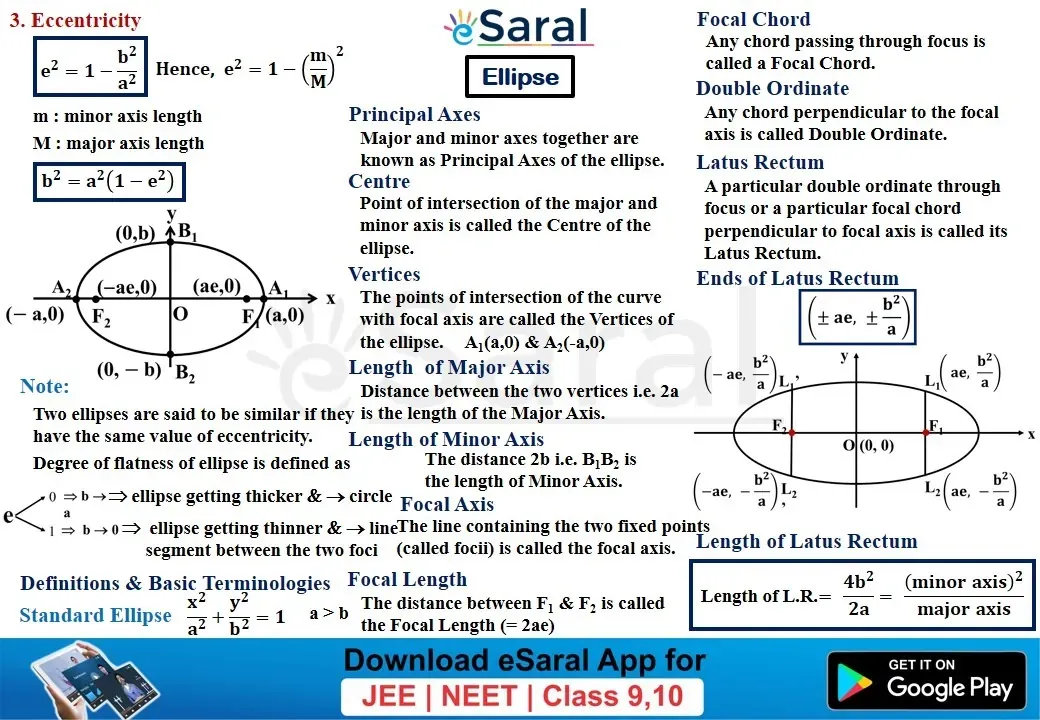

The major axis is the longest diameter of the ellipse with length 2a, passing through both foci. The latus rectum is a chord through a focus perpendicular to the major axis, with length 2b²/a. In JEE problems, latus rectum length is used frequently in problems involving chord lengths and area calculations.

Yes. The CBSE Class 11 syllabus includes Conic Sections under Chapter 11, and the ellipse formulas tested in boards are a subset of what these mind maps cover — specifically Mind Maps 1, 2, and 3. Students can use these maps for both board preparation and JEE foundation building simultaneously.
