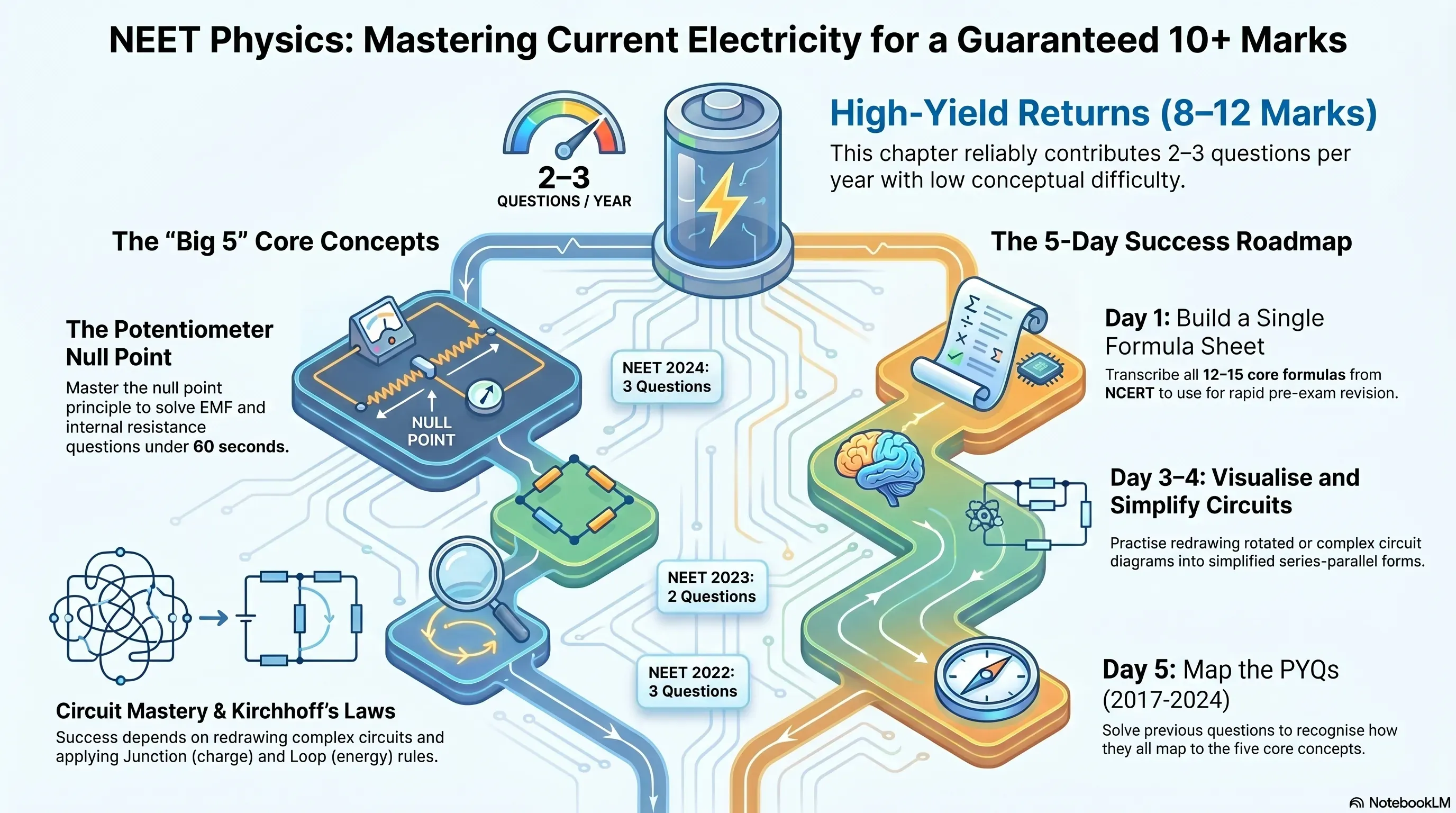

Why Current Electricity Is a Must-Master Chapter for NEET

Current Electricity (Class 12, Chapter 3) is one of the most formula-dense and numerically active chapters in NEET Physics. Unlike some Physics chapters that test primarily conceptual understanding, Current Electricity demands both — and it rewards students who have practised sufficiently.

The chapter contributes 2–3 questions in almost every NEET paper, making it worth 8–12 marks reliably. More importantly, these questions span a predictable set of question types: resistance calculations, circuit analysis using Kirchhoff's laws, Wheatstone bridge balance conditions, and potentiometer working principles.

A student who has solved all NEET PYQs from this chapter will recognise the pattern of every question that appears — because NTA has not introduced a genuinely novel question type from this chapter in over a decade.

💡 Expert Tip by eSaral Physics Faculty: "Current Electricity questions in NEET are not hard — they are tricky. The numbers change, the circuit diagrams rotate, but the underlying concept being tested is almost always one of five things: Ohm's law, series-parallel resistance, Kirchhoff's laws, Wheatstone bridge, or potentiometer. Master those five and you will get full marks from this chapter every time."

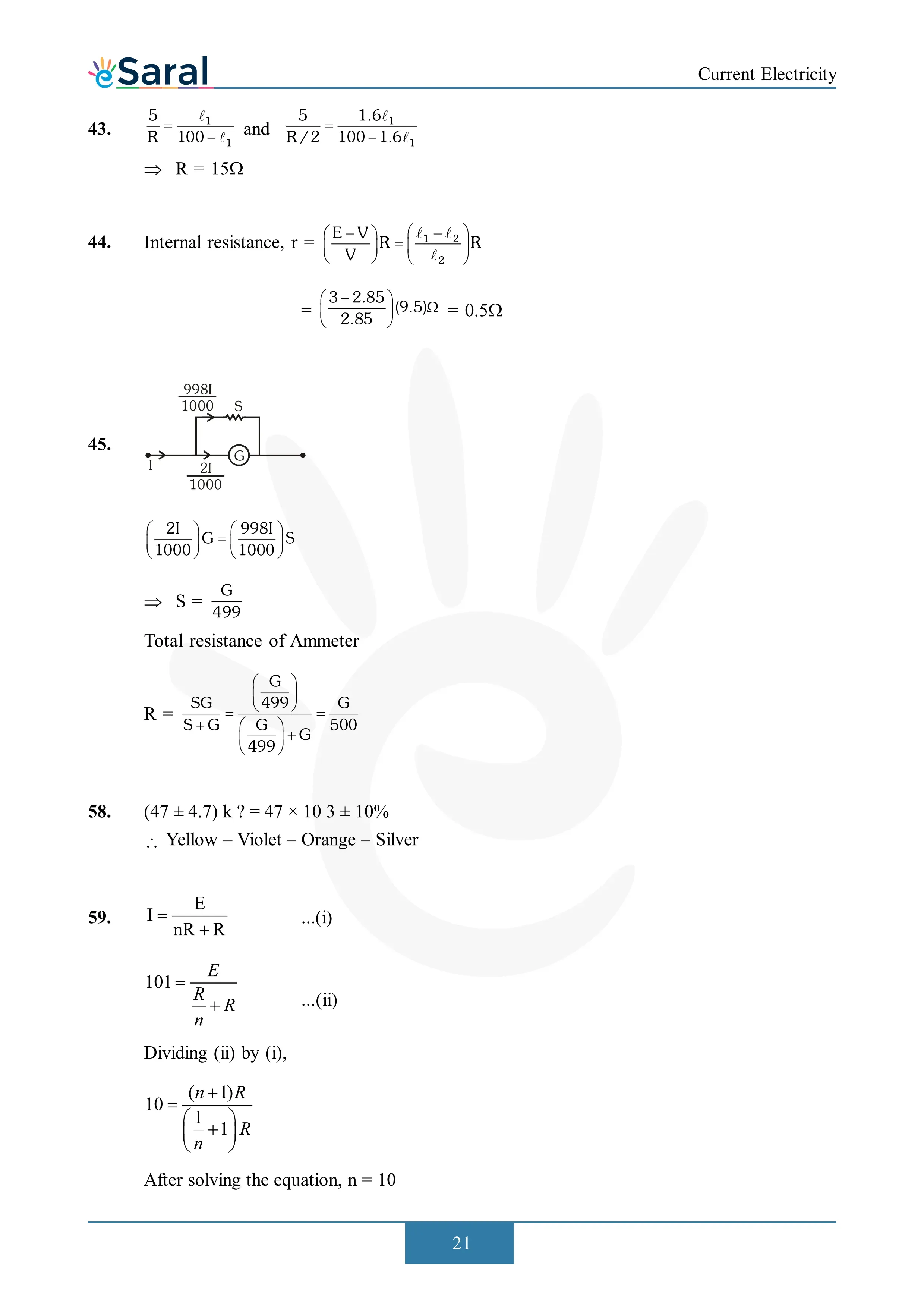

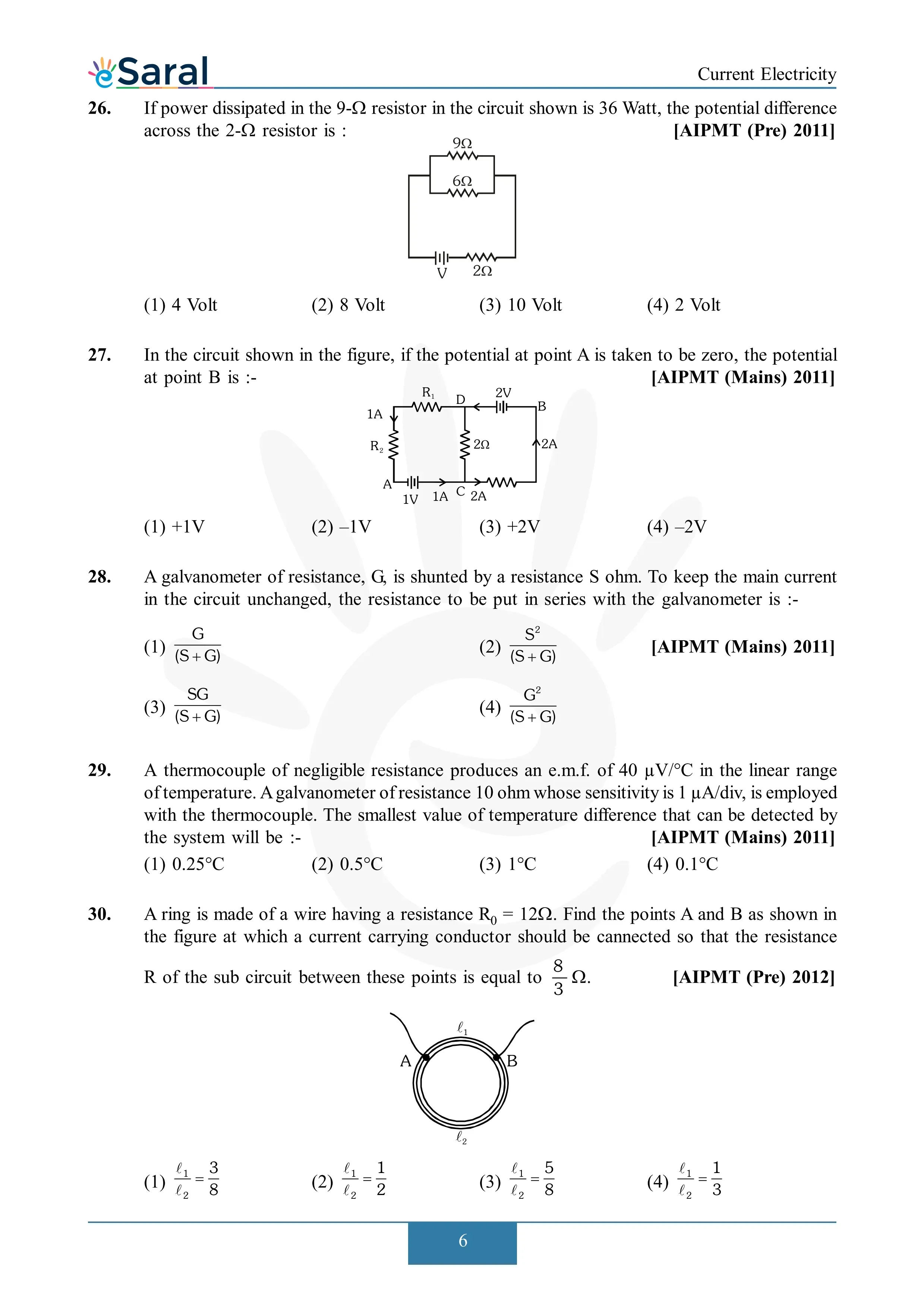

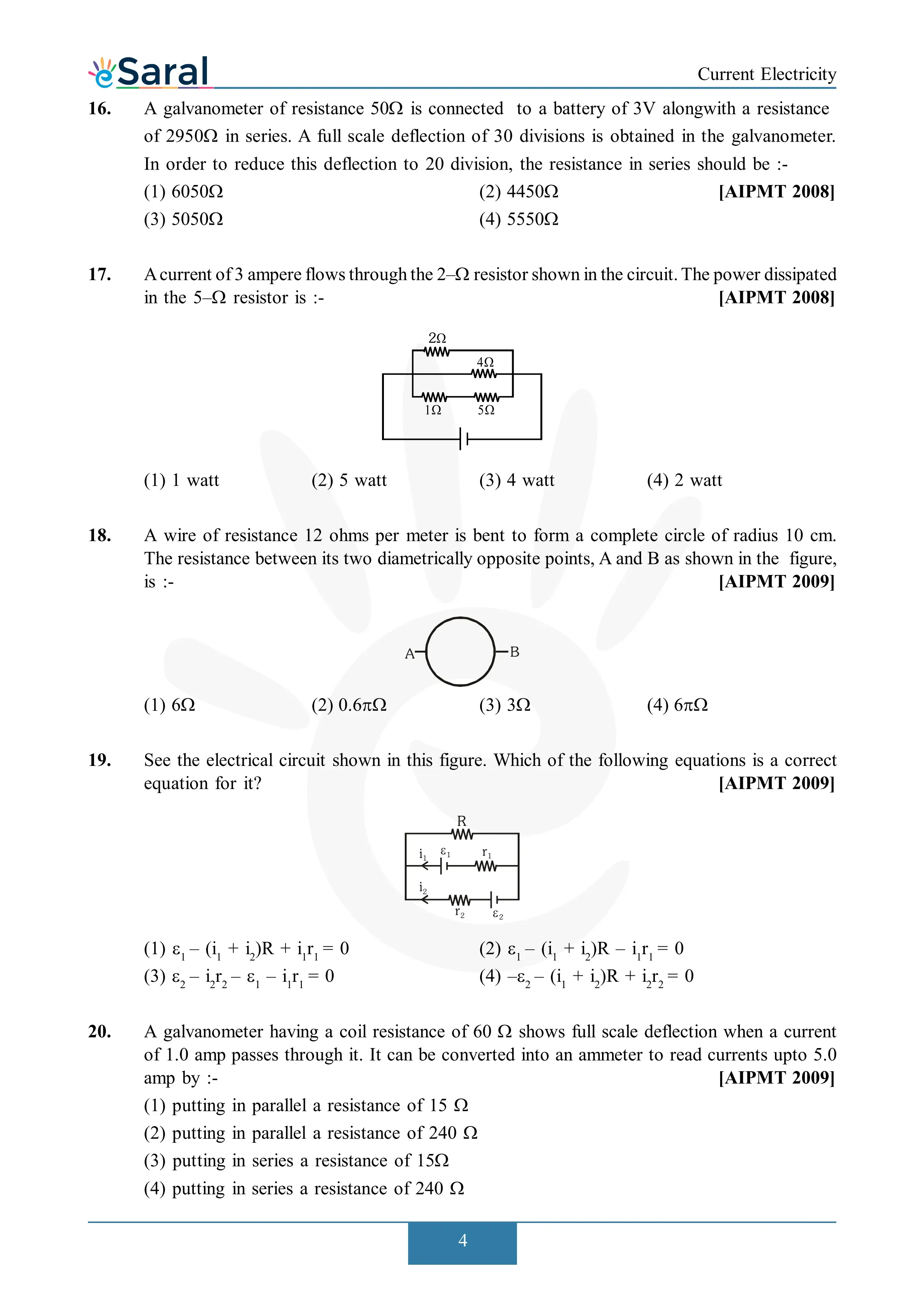

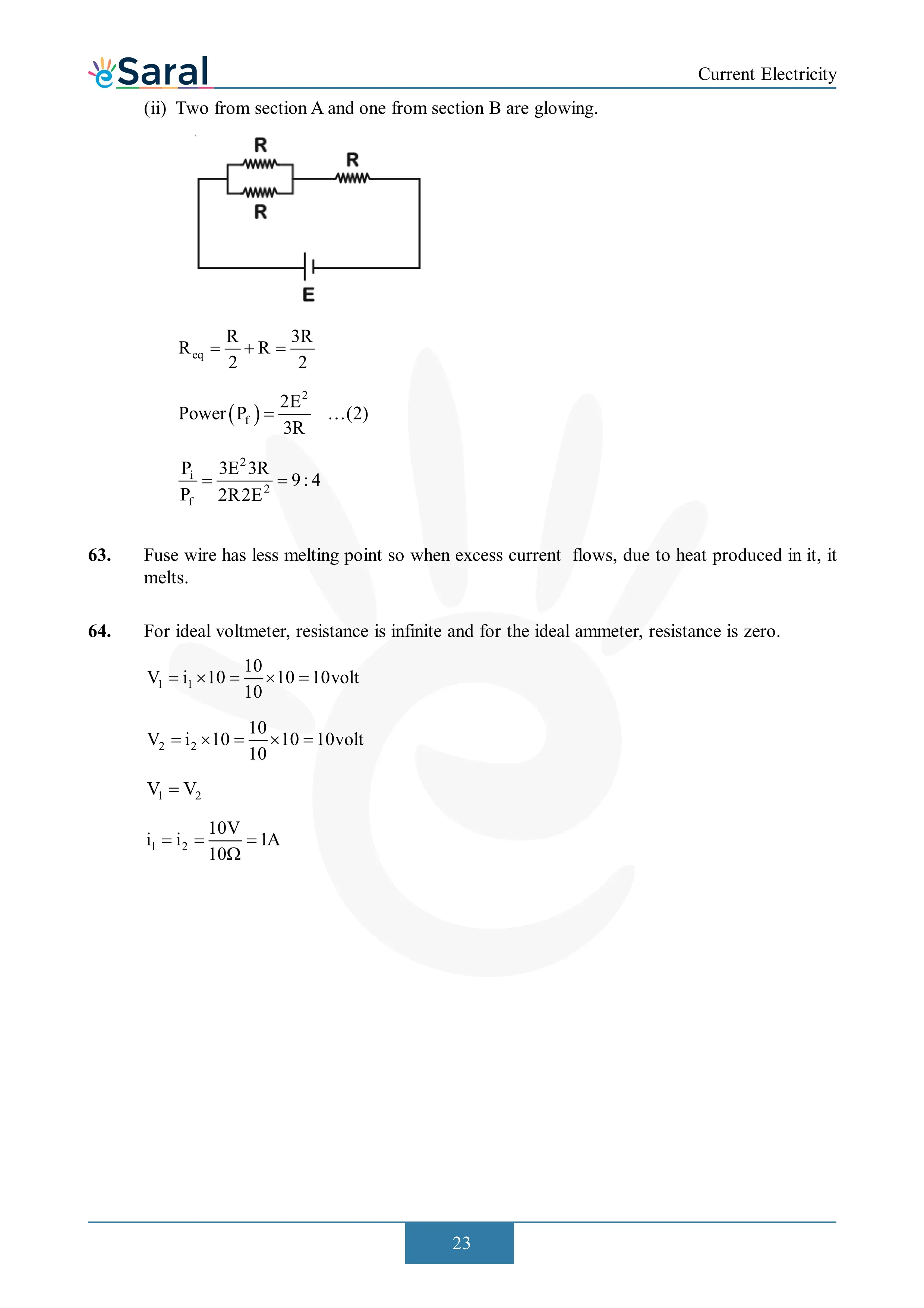

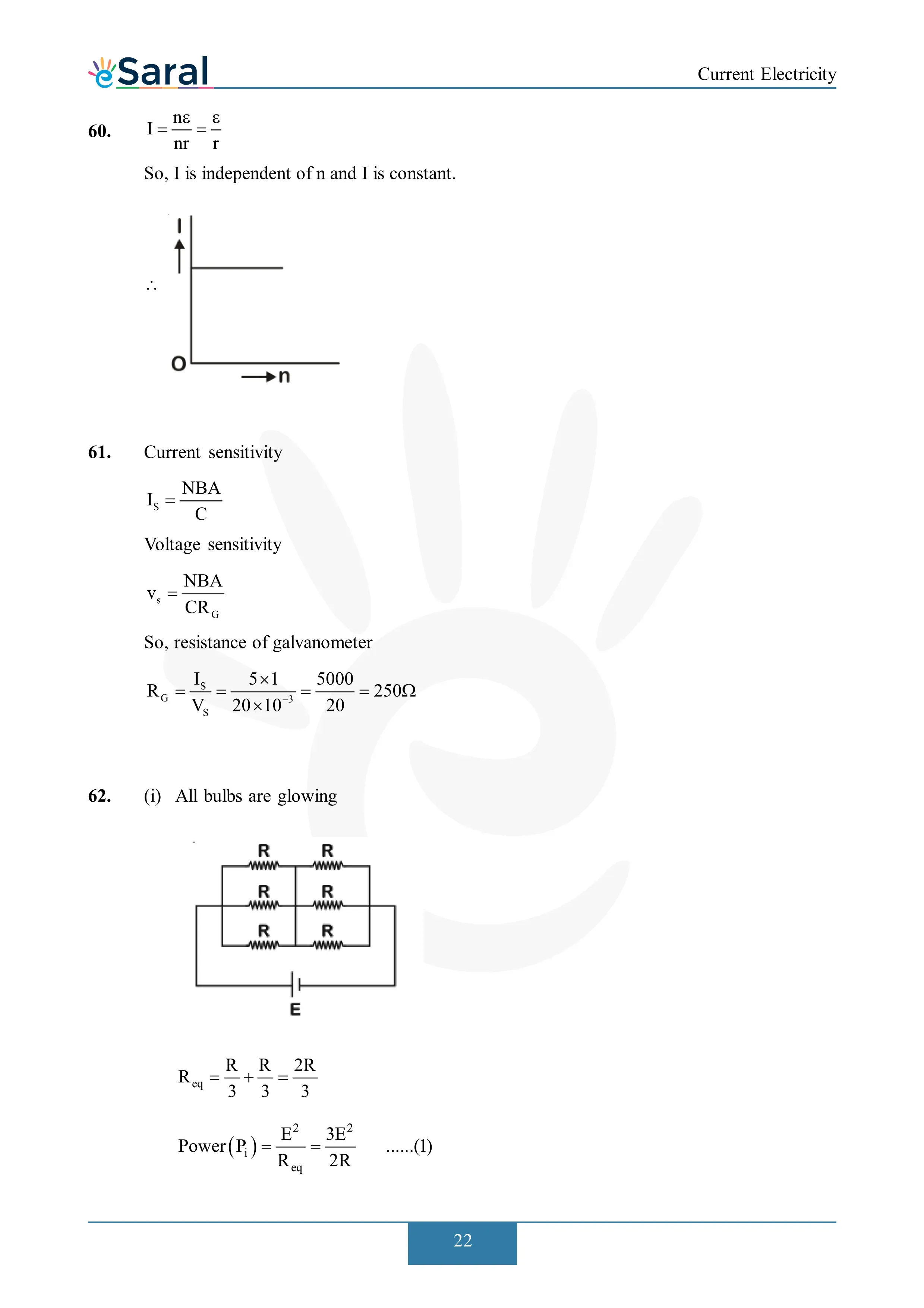

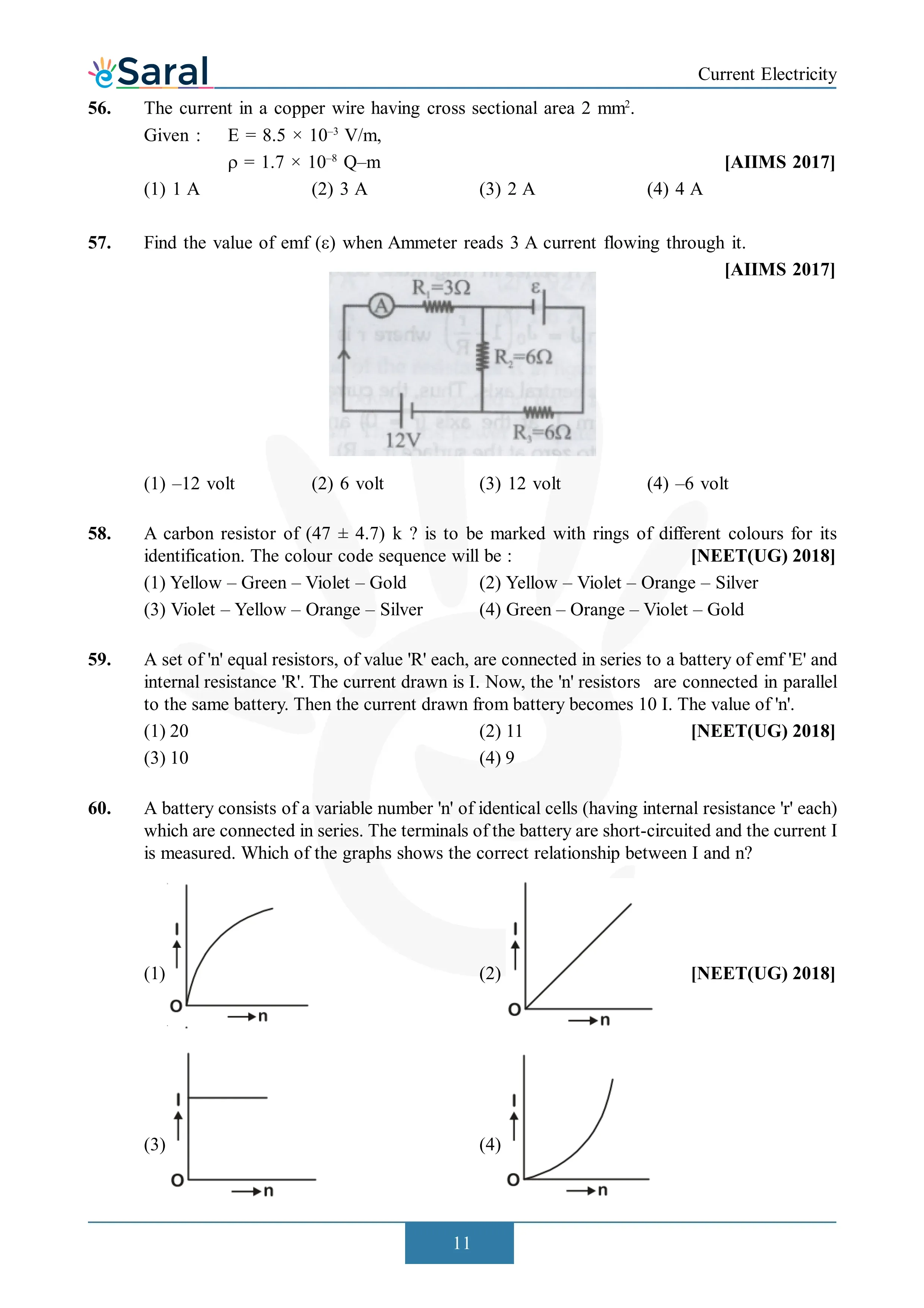

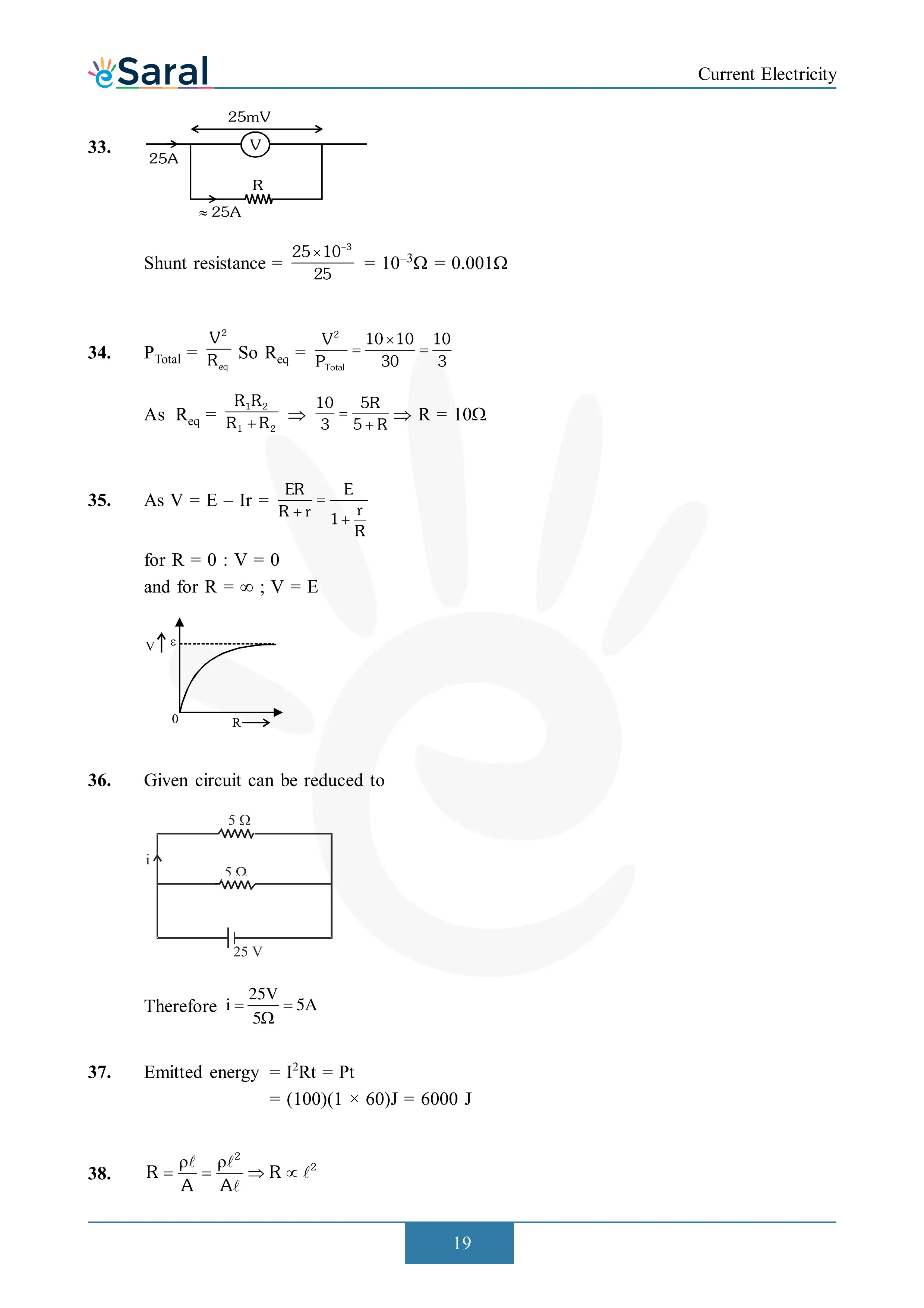

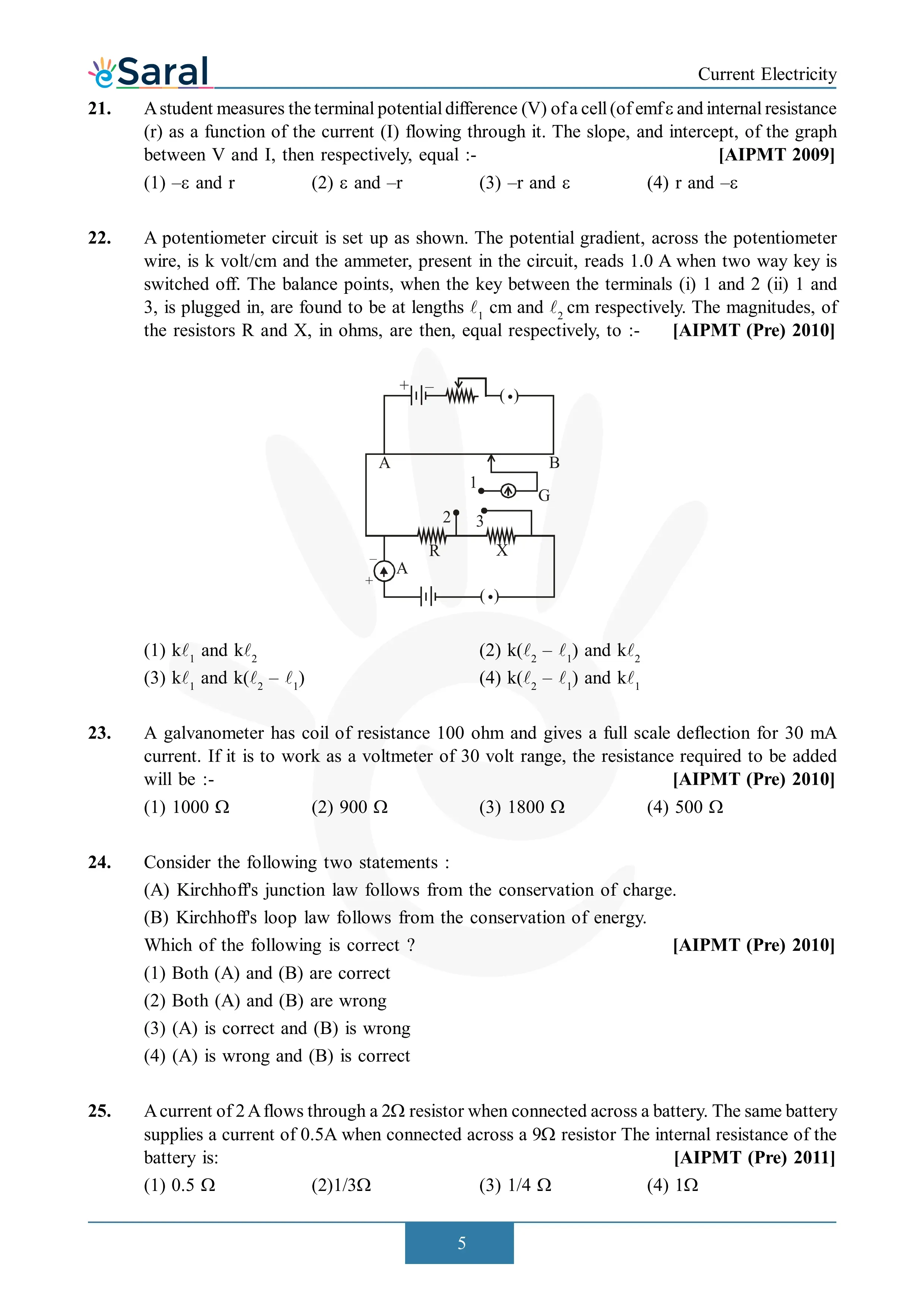

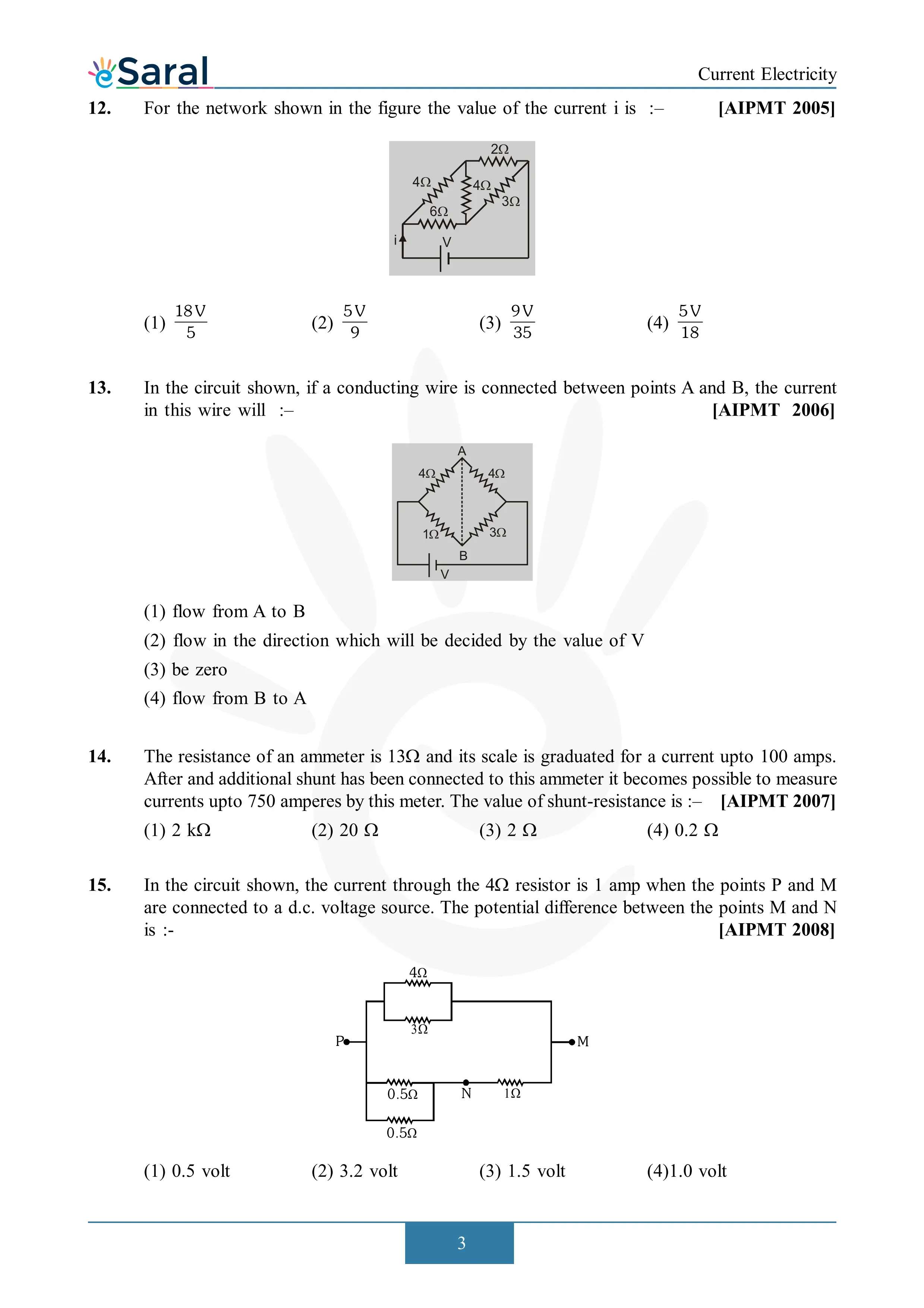

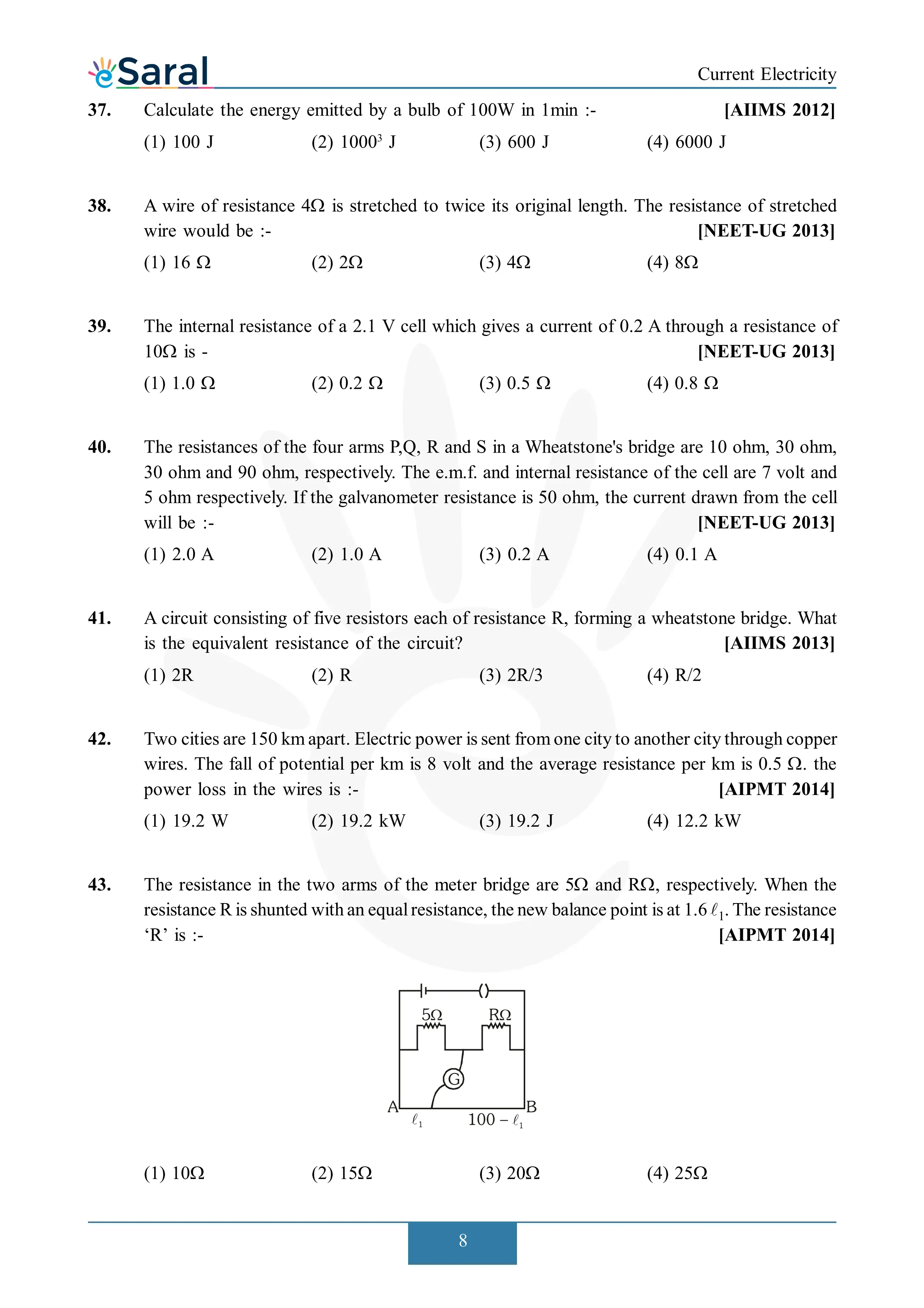

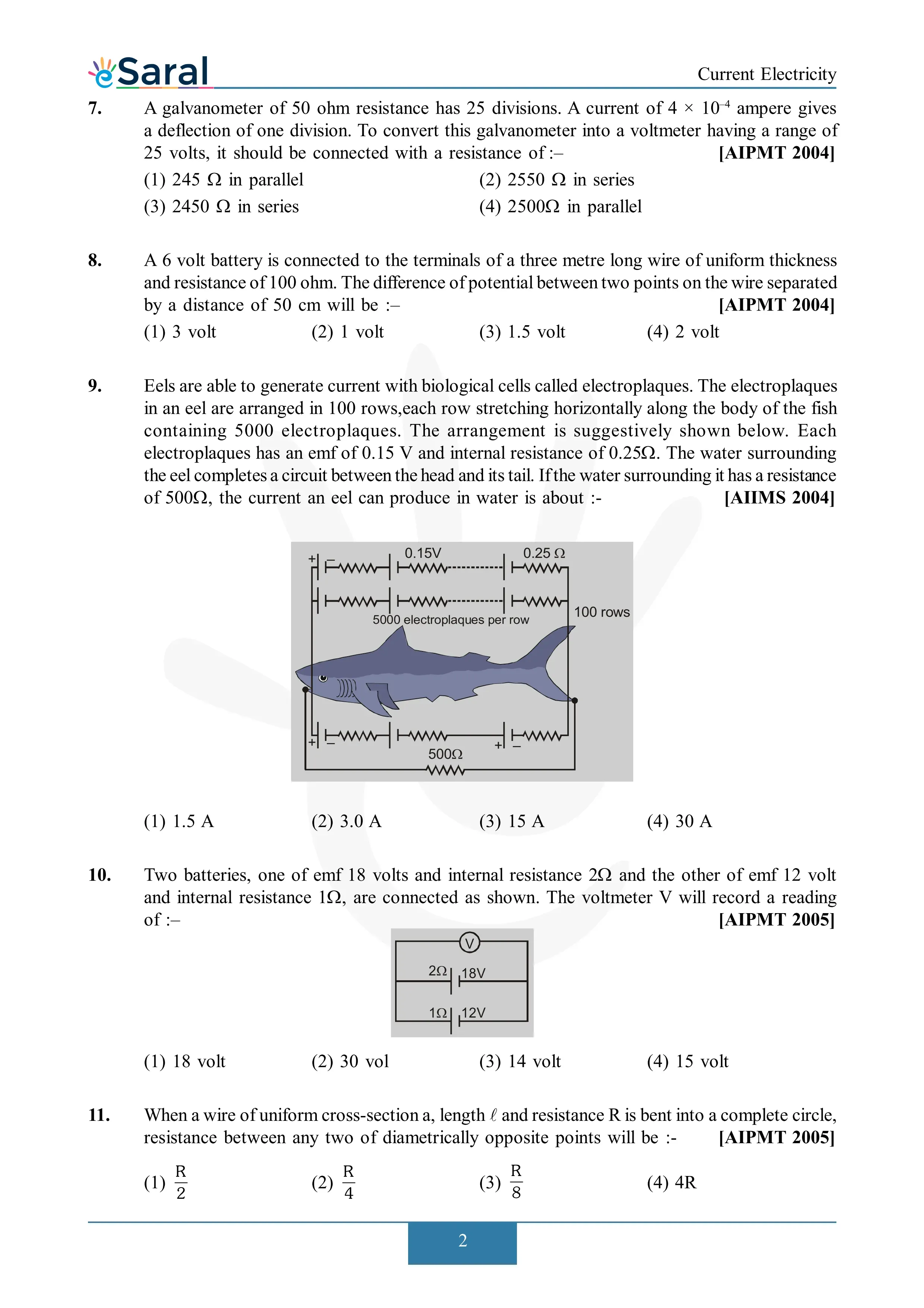

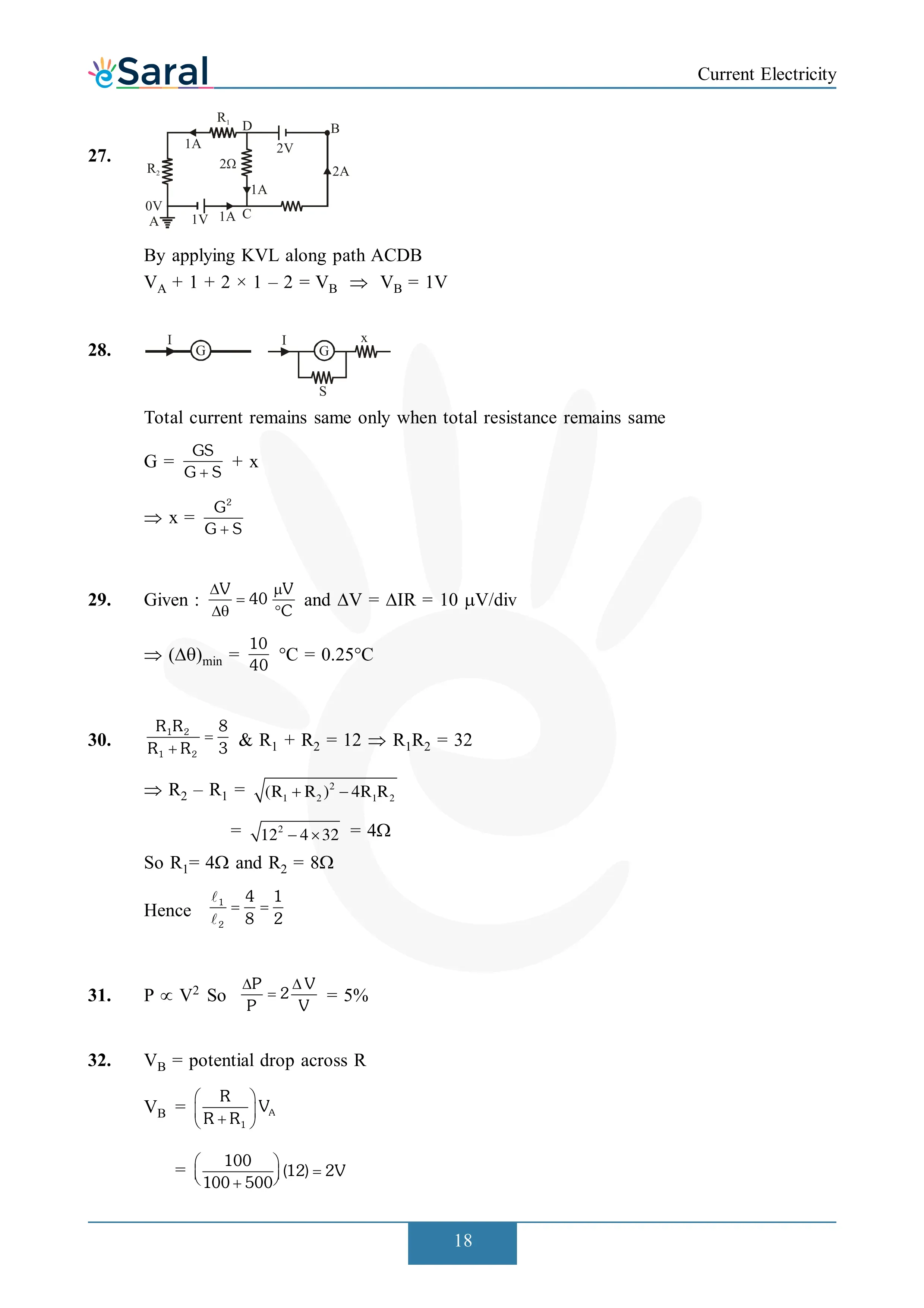

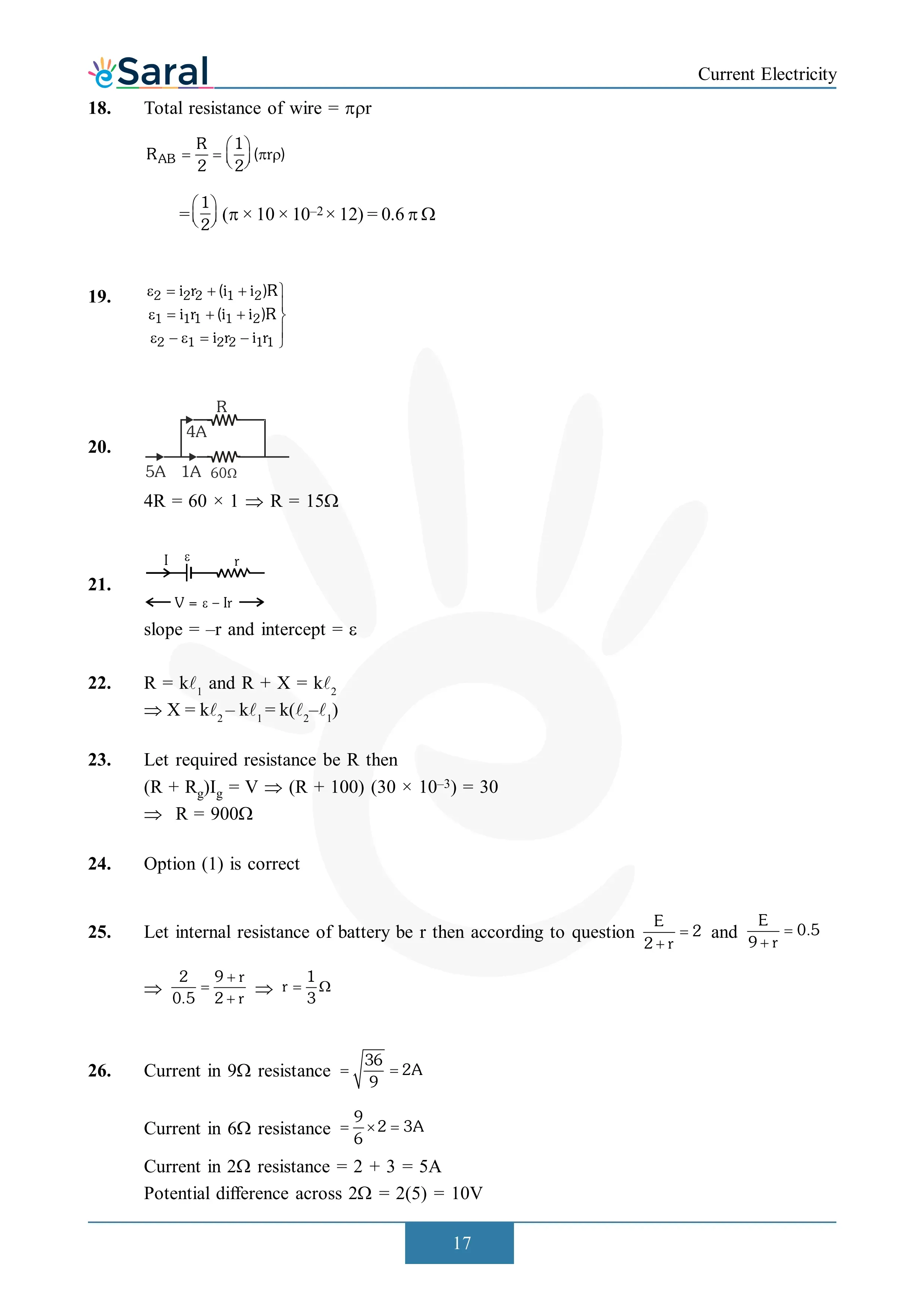

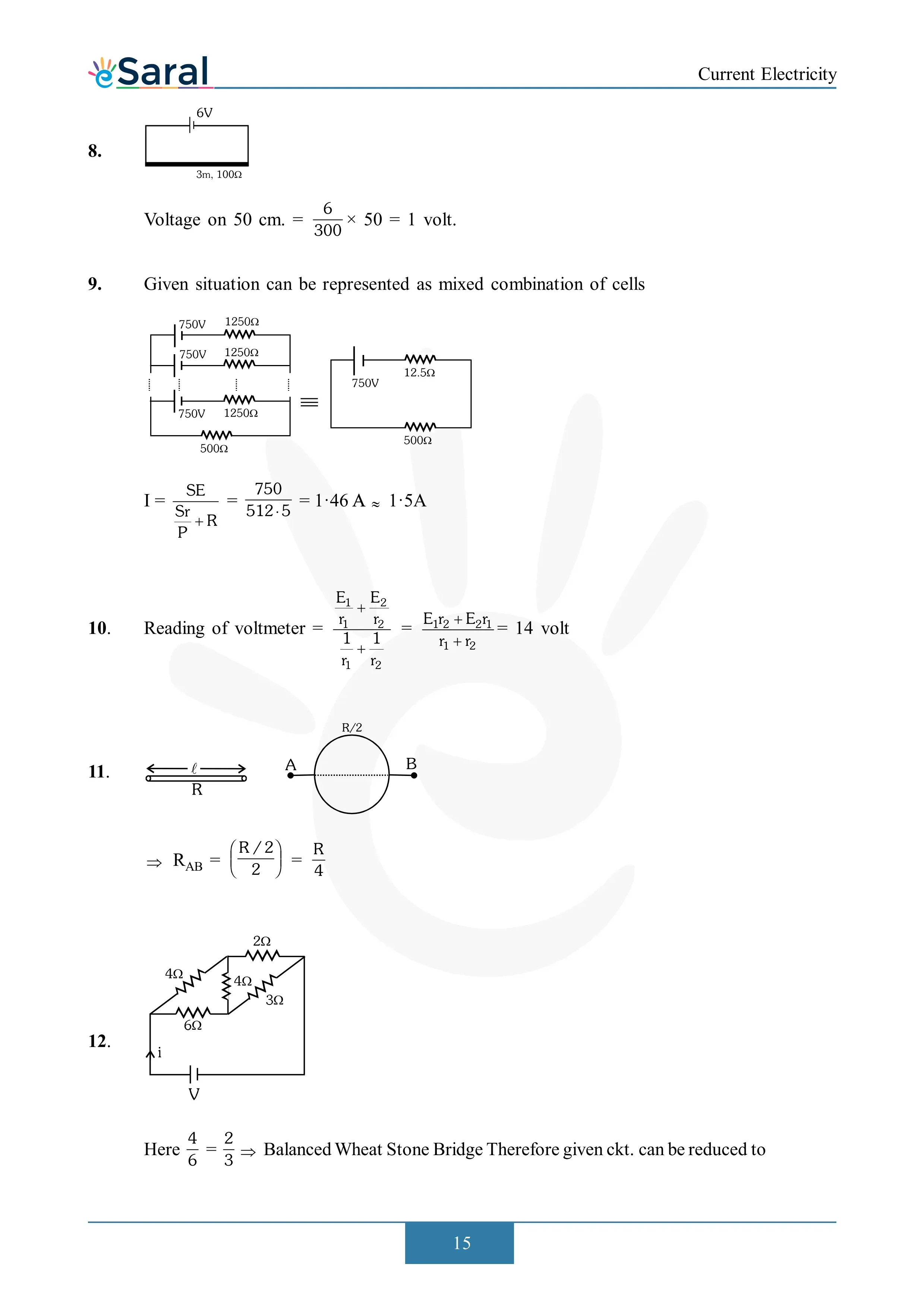

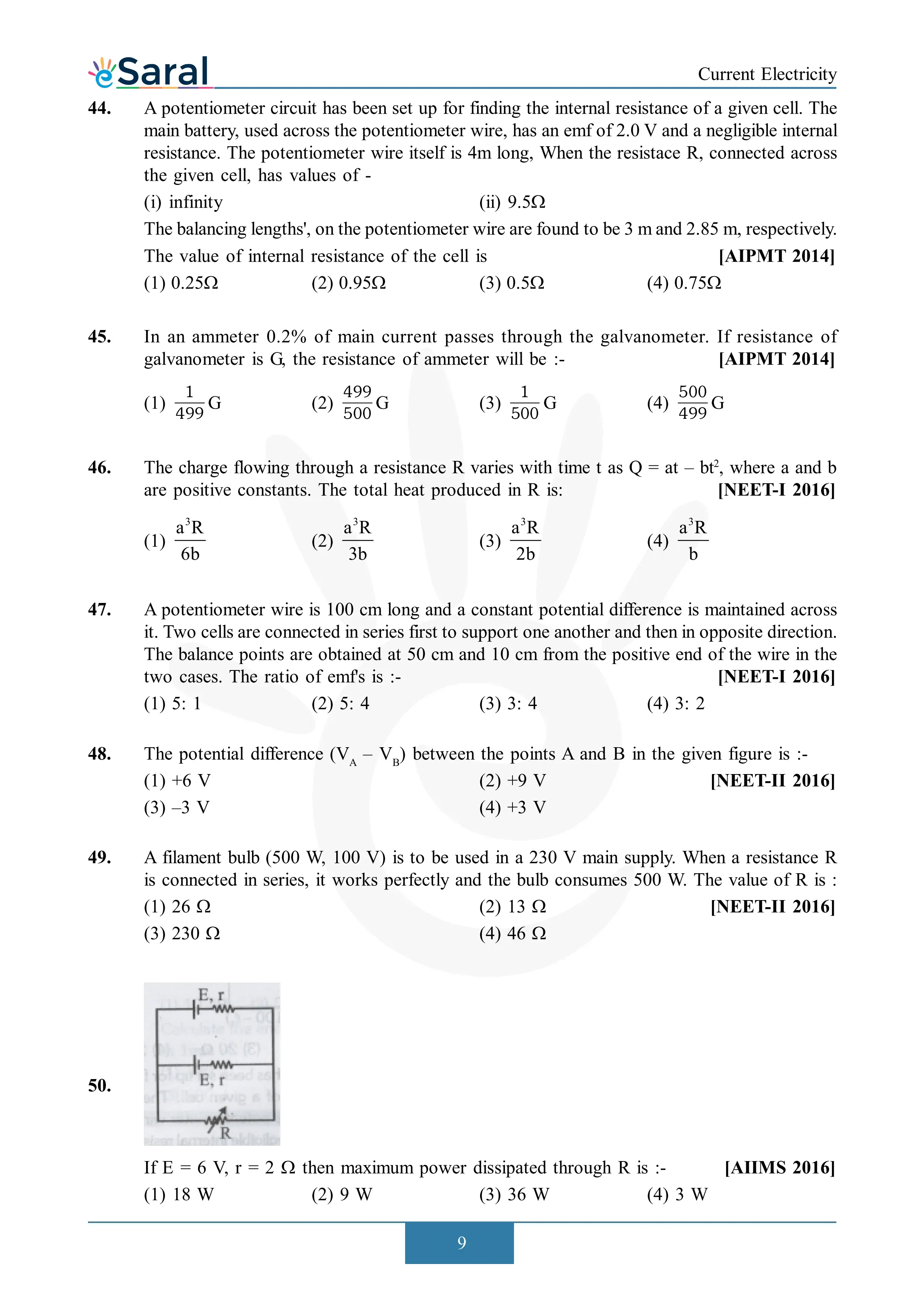

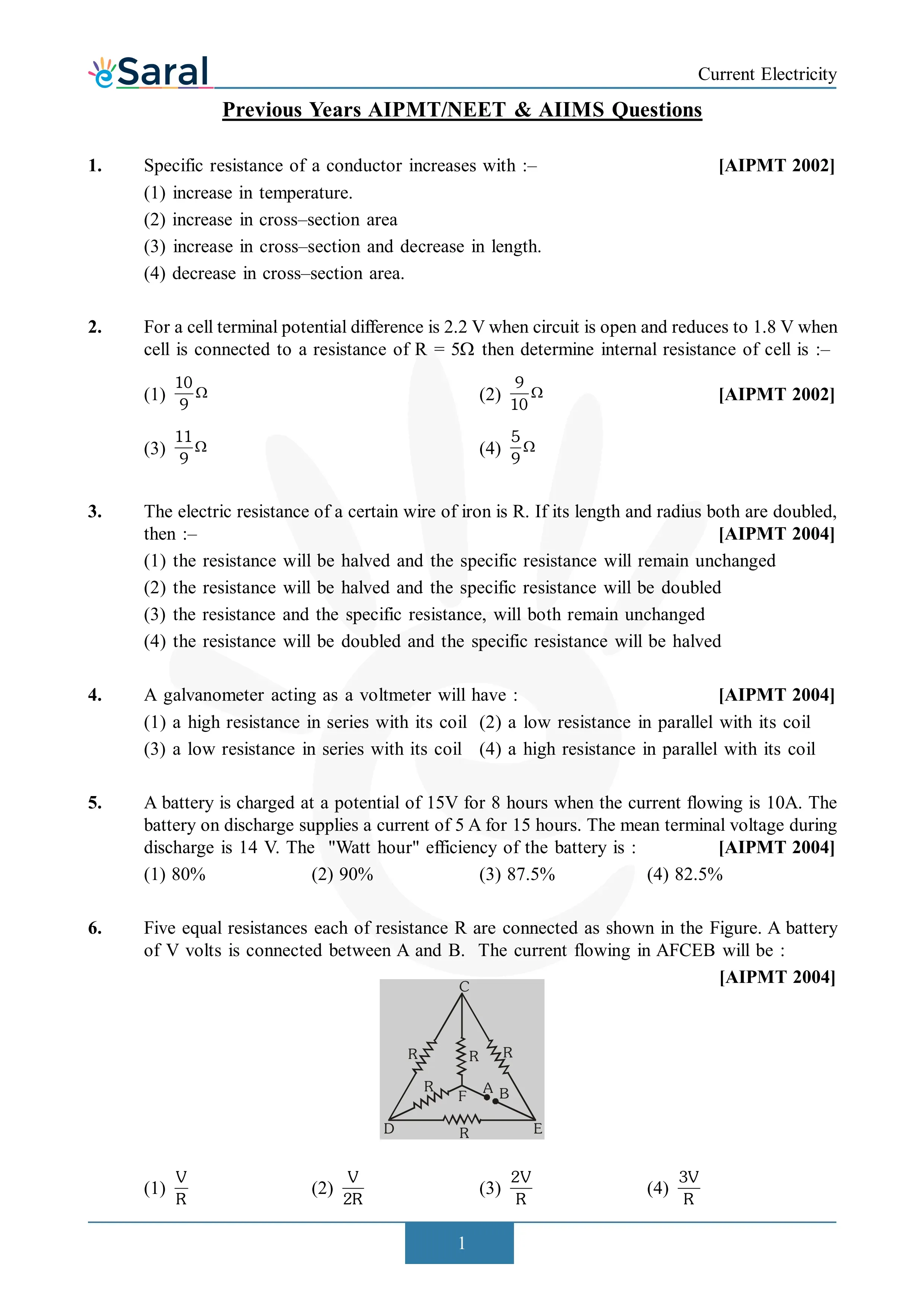

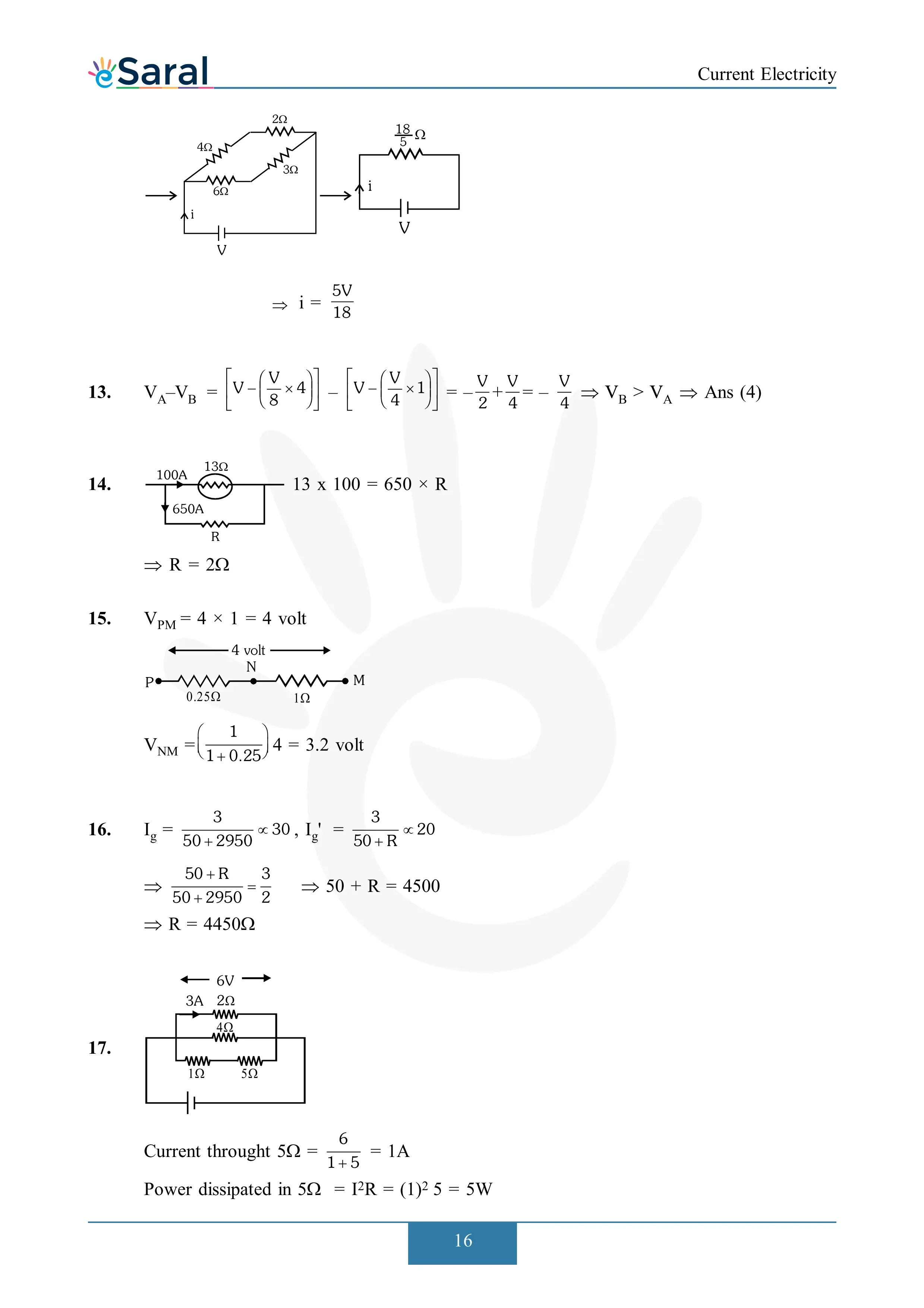

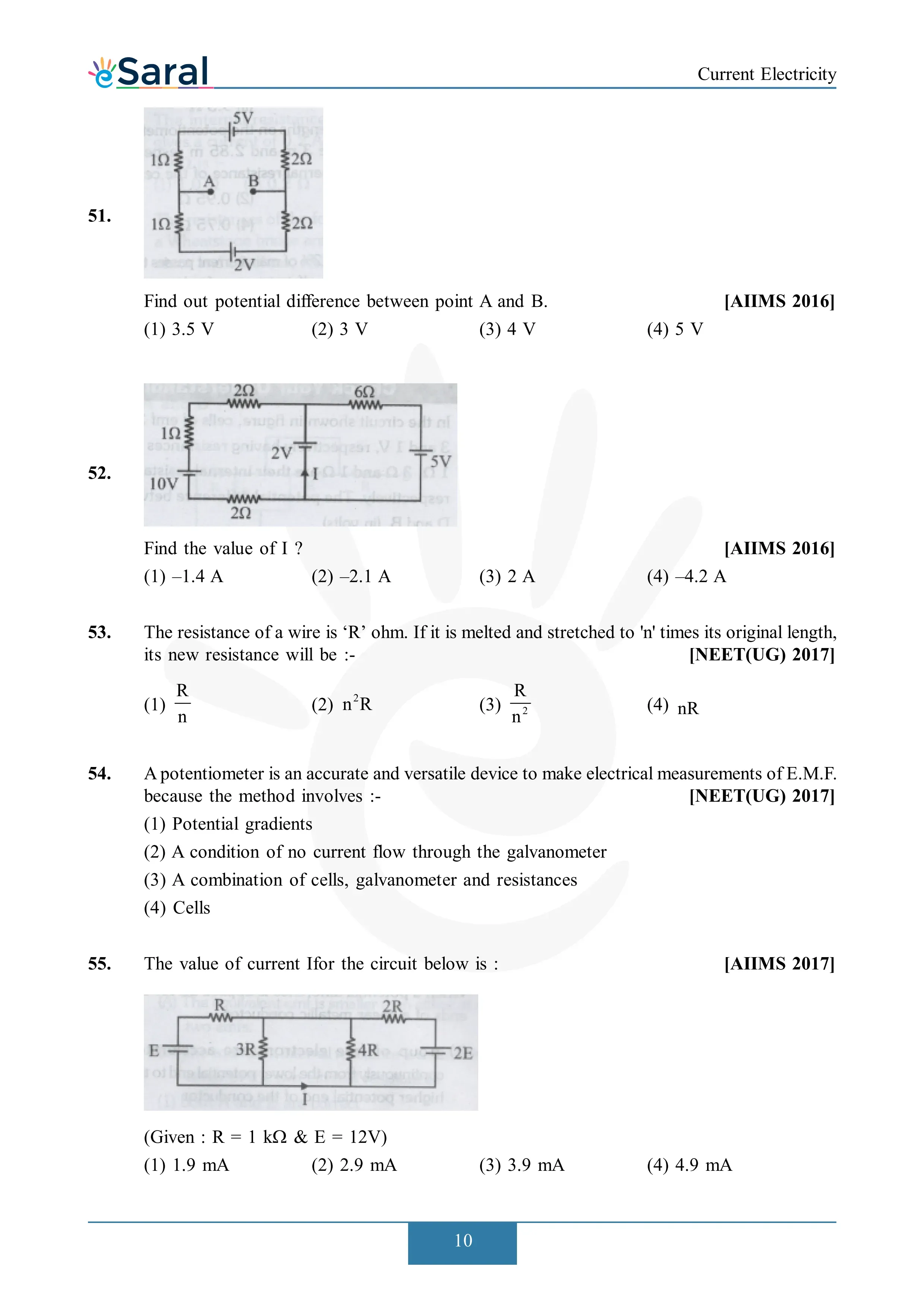

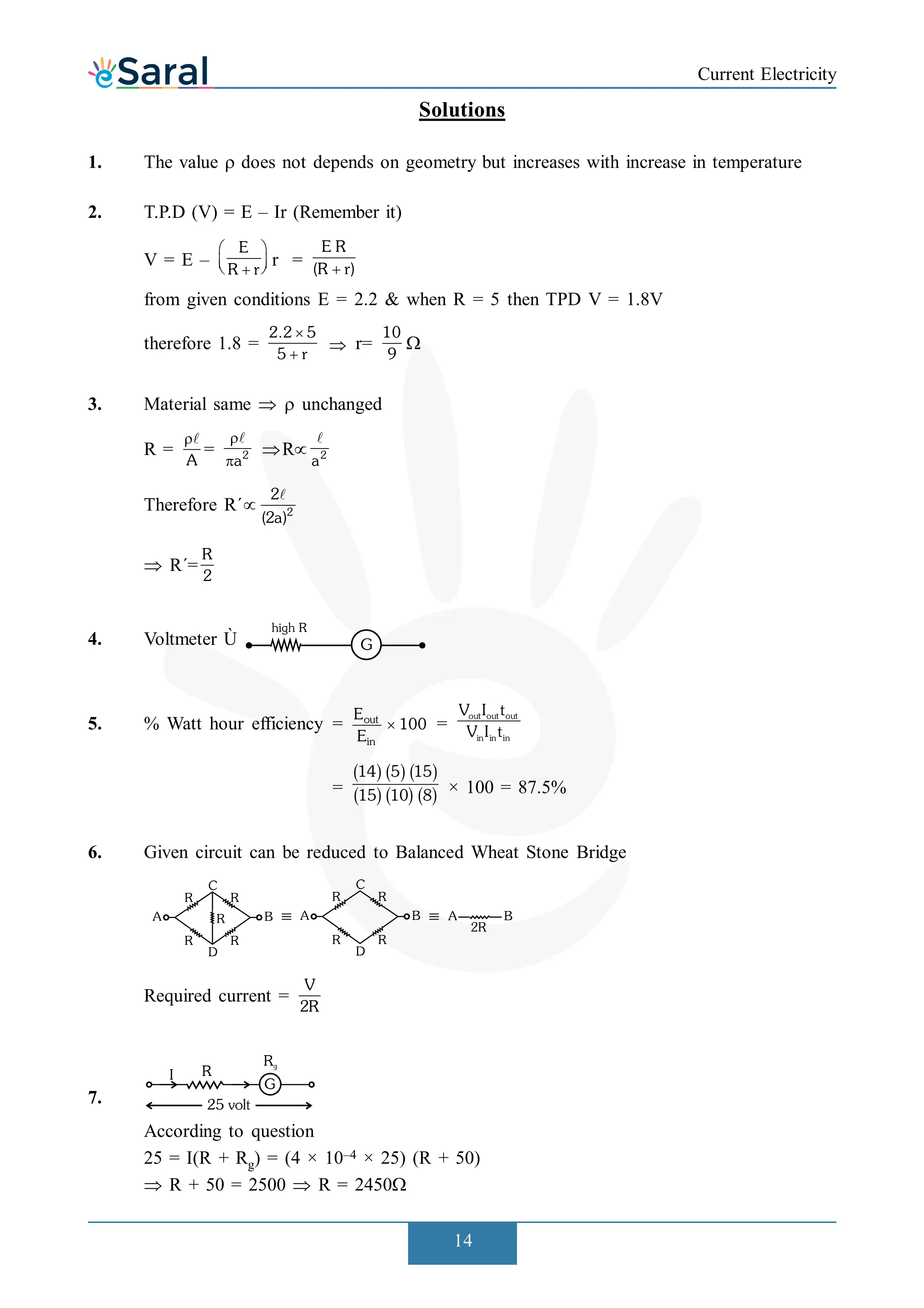

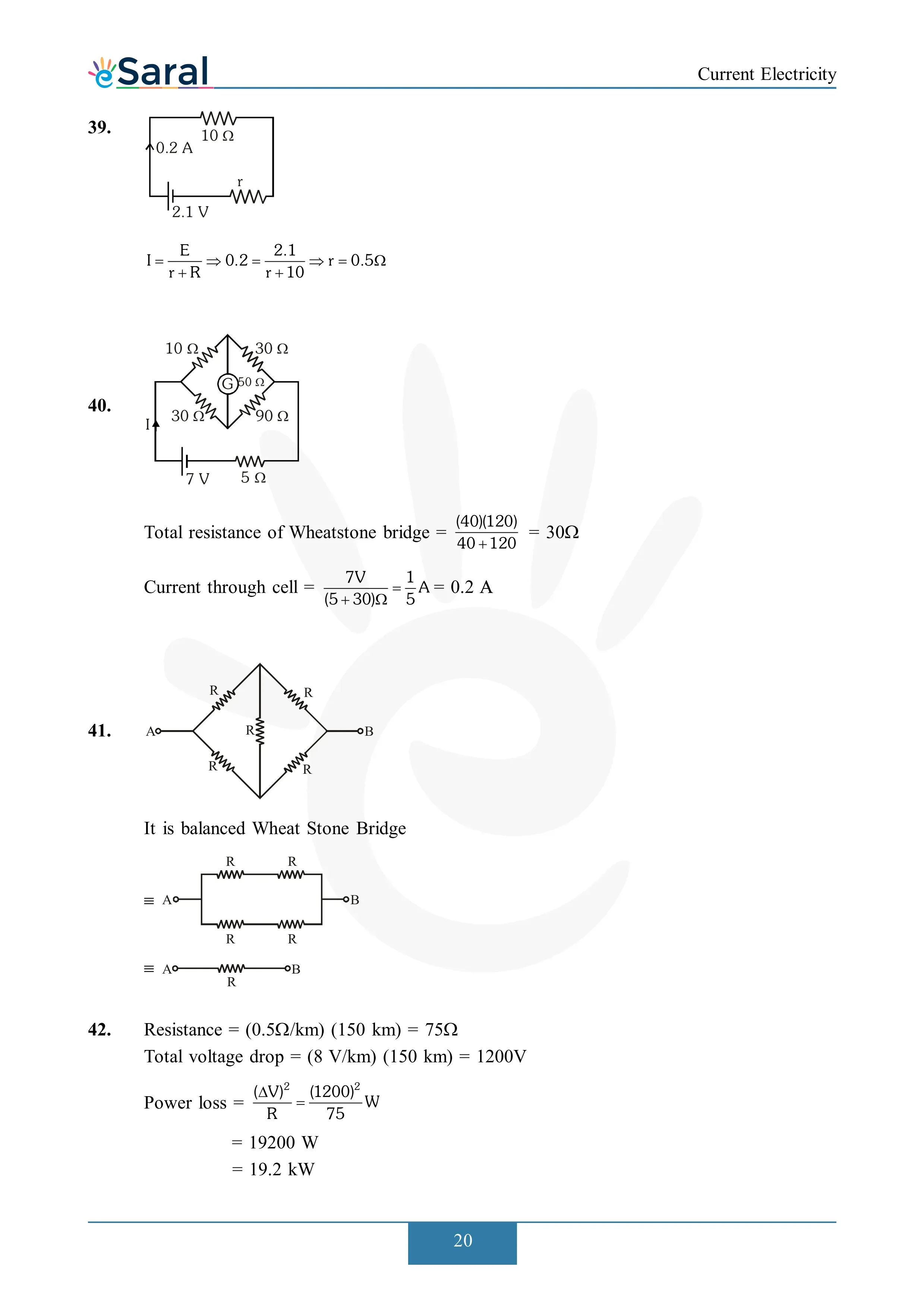

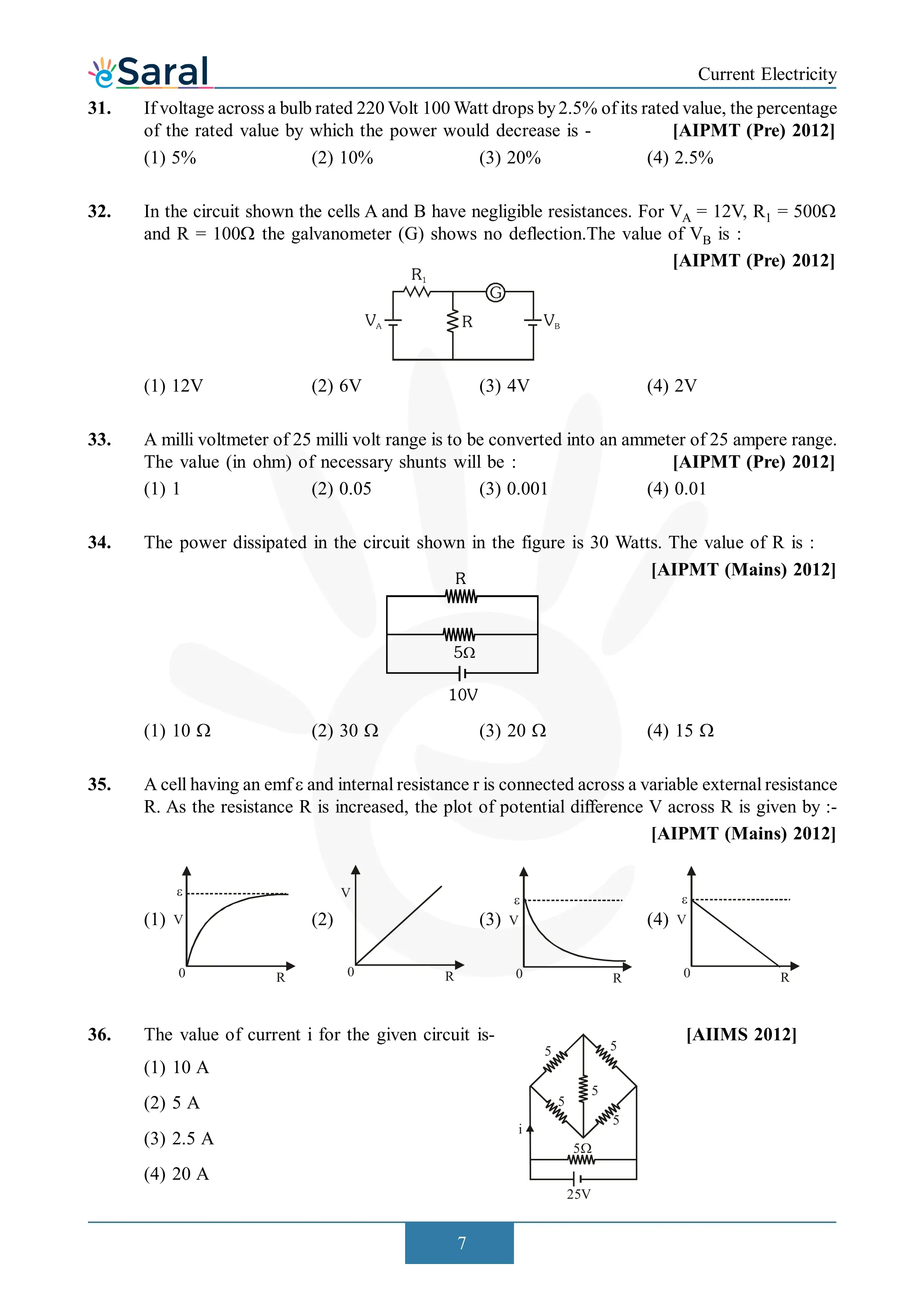

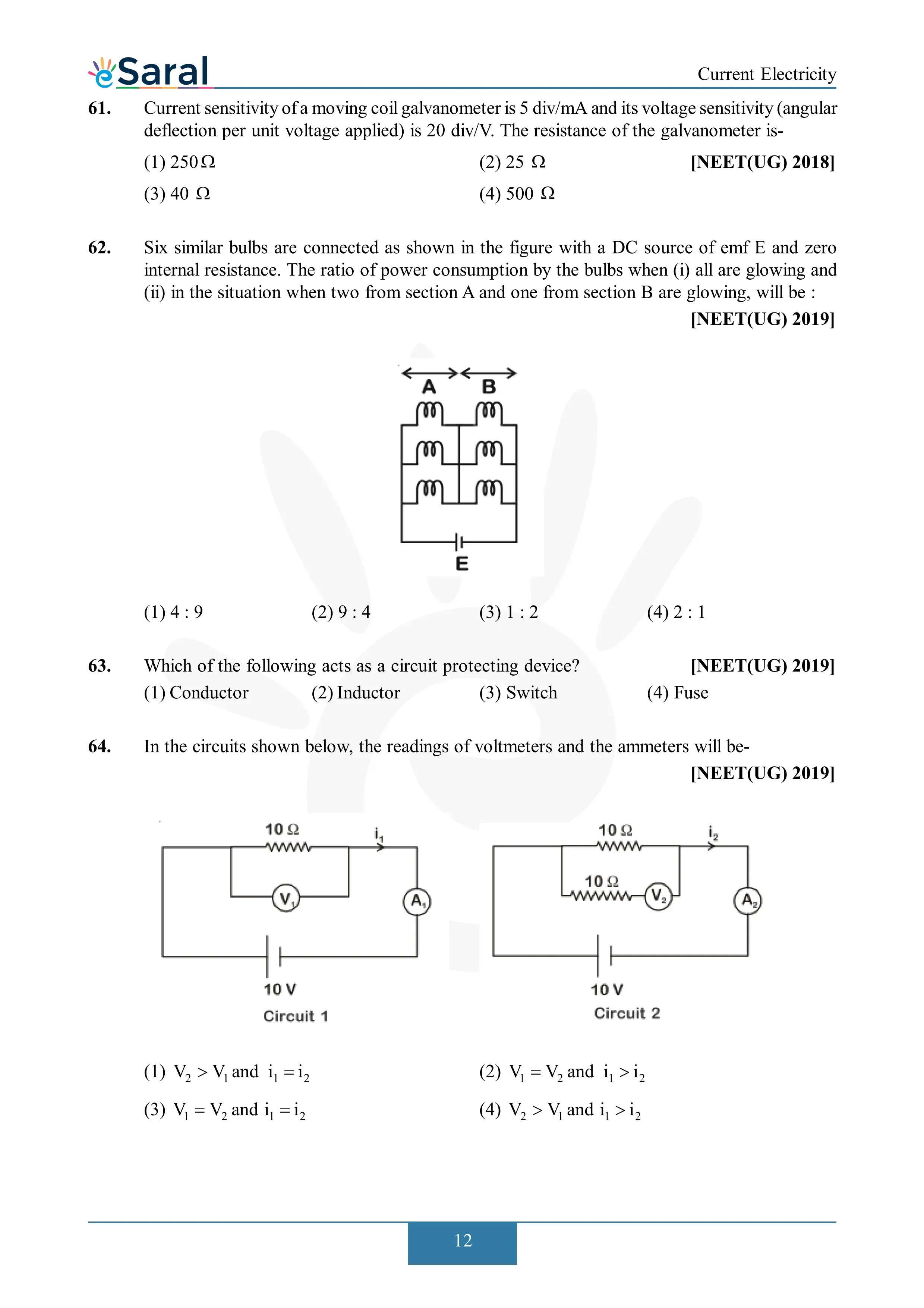

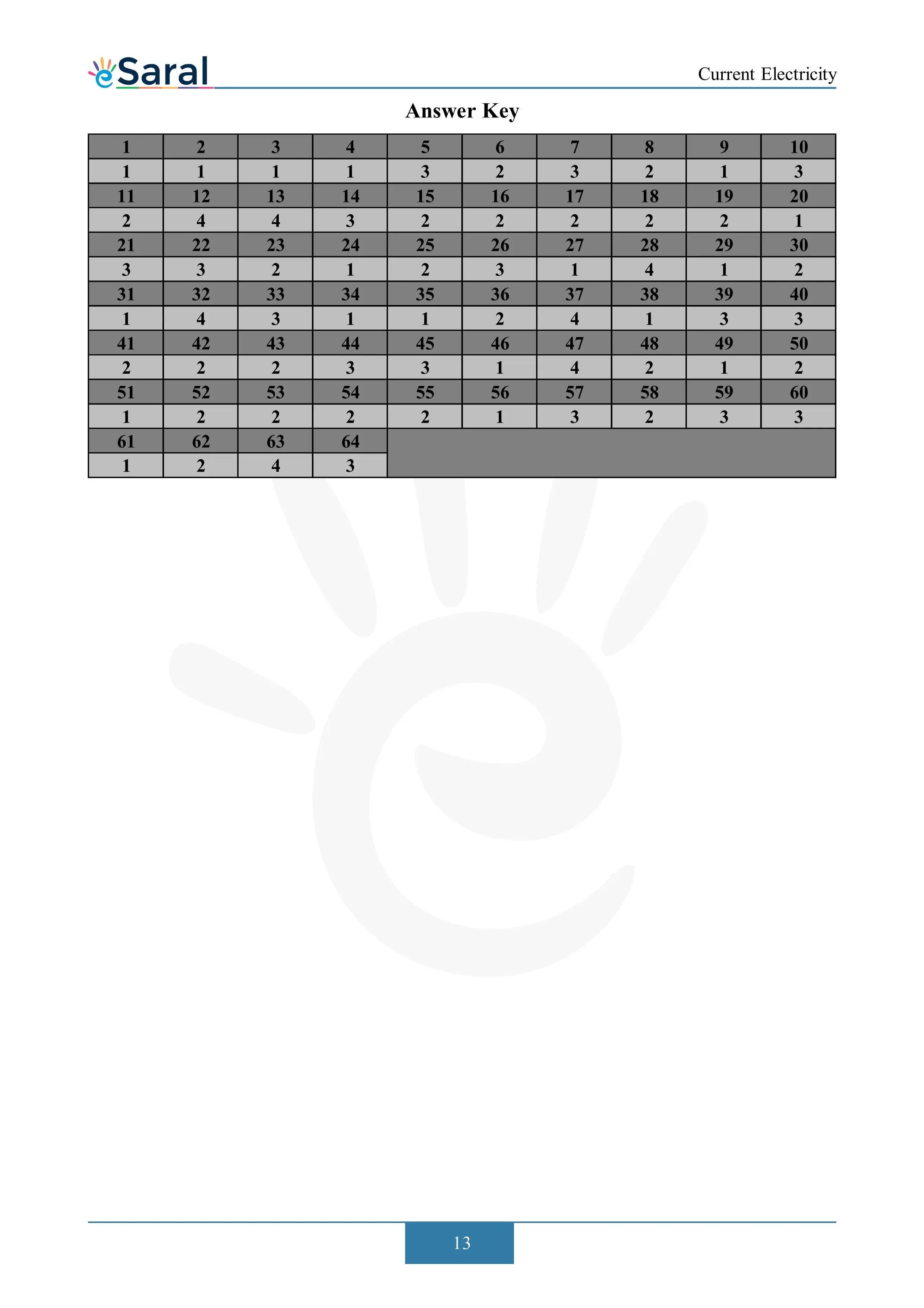

NEET Previous Year Questions — Current Electricity with Solutions

Chapter Overview: Topics and Subtopics

What This Chapter Covers

NEET Weightage Analysis: Year-Wise Question Count

How Many Questions Come From Current Electricity in NEET?

Average: 2.5 questions per year — approximately 10 marks. Combined with the low conceptual difficulty relative to chapters like Wave Optics or SHM, this makes Current Electricity one of the best return-on-investment chapters in NEET Physics.

💡 Expert Tip by eSaral Physics Faculty: "Potentiometer questions appear in almost every NEET paper. Students who understand the working principle — that the potentiometer measures EMF by finding the null point where no current flows — can solve any potentiometer question in under 60 seconds. It is not a calculation-heavy topic. It is a concept-clarity topic."

Key Concepts and Formulas You Must Know

Essential Formulas — Quick Reference

The 5 Concept Areas NTA Tests Every Year

1. Drift Velocity and Current Density

The microscopic origin of current: free electrons in a conductor experience random thermal motion but drift slowly in the direction opposite to the electric field.

• Drift velocity: Vd = eEτ/m (where τ = relaxation time)
• Current: I = nAeVd
• Current density: J = I/A = nеVd

NEET question pattern: "If the radius of a wire is halved and the length is doubled, how does the drift velocity change when the same potential difference is applied?" These questions test whether you know which quantities in the formula change.

2. Resistance and Resistivity — Temperature Effect

Resistance increases with temperature for metals (positive α): R = R₀(1 + αT)

Resistance decreases with temperature for semiconductors and electrolytes (negative α).

This distinction — metal vs semiconductor behaviour — is a direct NEET question type every 2–3 years.

3. Kirchhoff's Laws

KCL (Junction Rule): Sum of currents entering a junction = sum of currents leaving it. Based on conservation of charge.

KVL (Loop Rule): Sum of potential differences around any closed loop = zero. Based on conservation of energy.

Sign convention for KVL:

• Traversing a resistor in the direction of current: voltage drops (−IR)
• Traversing a resistor against the direction of current: voltage rises (+IR)
• Traversing a battery from − to +: voltage rises (+E)
• Traversing a battery from + to −: voltage drops (−E)

4. Wheatstone Bridge

Balance condition: P/Q = R/S (no current through galvanometer).

At balance, the galvanometer reads zero — this is the key to all Wheatstone bridge questions. NEET tests:

• Finding the unknown resistance when the bridge is balanced
• Identifying which configuration makes the bridge balanced
• Sensitivity of a Wheatstone bridge (most sensitive when all four arms are equal)

5. Potentiometer Principle

A potentiometer measures EMF by finding the null point — the length at which the potential difference across the potentiometer wire exactly equals the EMF being measured. At null, no current flows through the galvanometer.

Key relations:

• Comparison of EMFs: E₁/E₂ = l₁/l₂ (where l₁ and l₂ are the null point lengths)
• Internal resistance measurement: r = R(l₁ − l₂)/l₂ (where R is external resistance)

How to Study Current Electricity for Maximum NEET Marks

Step-by-Step Study Plan

Step 1 — Read NCERT Chapter 3 completely and build a formula sheet (Day 1) Current Electricity is formula-dense. As you read, write every formula on a single dedicated sheet. By the end of Day 1, you should have all 12–15 core formulas in one place — this becomes your rapid-revision sheet for the rest of the year.

Step 2 — Master the five core concept areas (Day 2–3) Work through each of the five areas listed in the Key Concepts section: drift velocity, resistance-temperature relationship, Kirchhoff's laws, Wheatstone bridge, and potentiometer. For each, solve 5–7 standard problems from NCERT examples and exercises.

Step 3 — Practise circuit diagrams systematically (Day 3–4) Current Electricity questions in NEET almost always involve a circuit diagram. Practice:

• Redrawing complex circuits in simplified series-parallel form
• Identifying balanced Wheatstone bridges by inspection
• Applying KVL to loops with multiple batteries and resistors

The ability to redraw a circuit correctly is often the entire skill being tested.

Step 4 — Solve PYQs year-wise from 2024 to 2017 (Day 5) Work through all NEET Current Electricity PYQs year by year. Identify which question type each question falls into (one of the five areas above). You will quickly notice that every question maps to one of those five — confirming that the chapter's exam question space is finite and masterable.

Access the complete NEET chapter-wise PYQ collection on eSaral for all years in one place.

Step 5 — Revise the formula sheet and key relations before every mock test (ongoing) Spend 10 minutes before every Physics mock test reviewing your Current Electricity formula sheet. Potentiometer, Wheatstone bridge balance condition, terminal voltage, and series-parallel resistance formulas are the four most likely to be tested — prioritise those in your pre-mock revision.
