Mind Maps for Rotational Motion Revision - Class XI, JEE, NEET

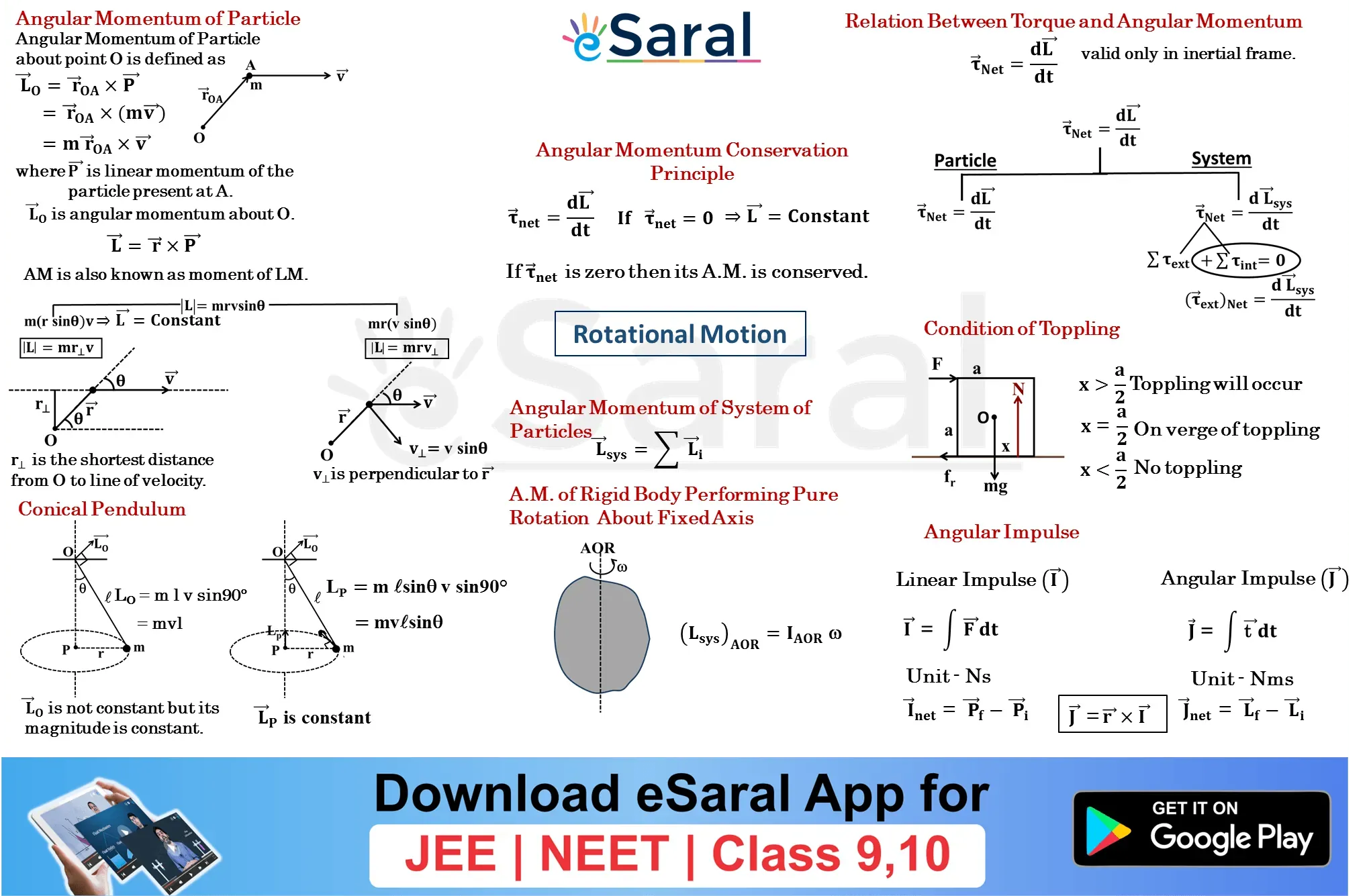

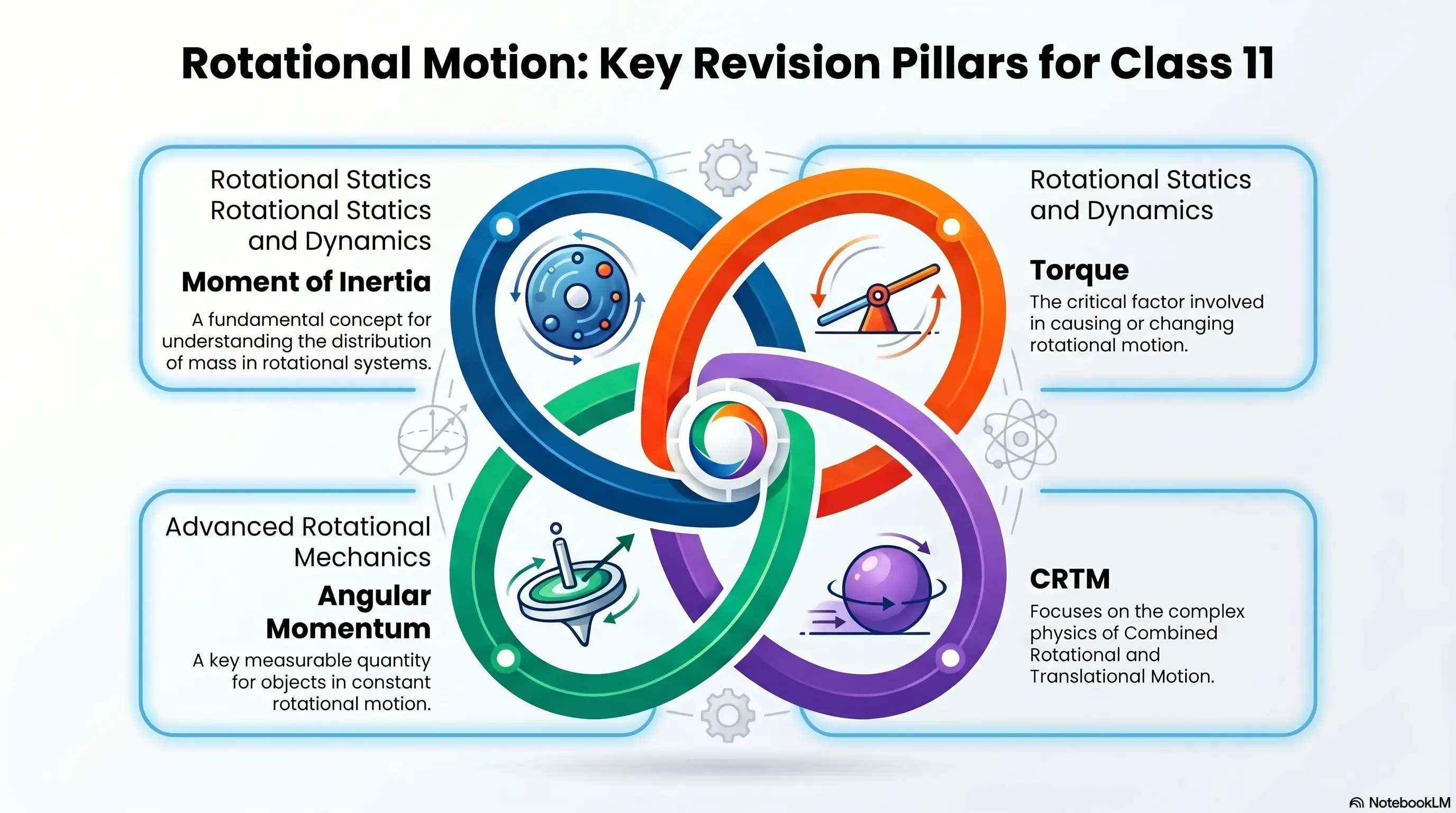

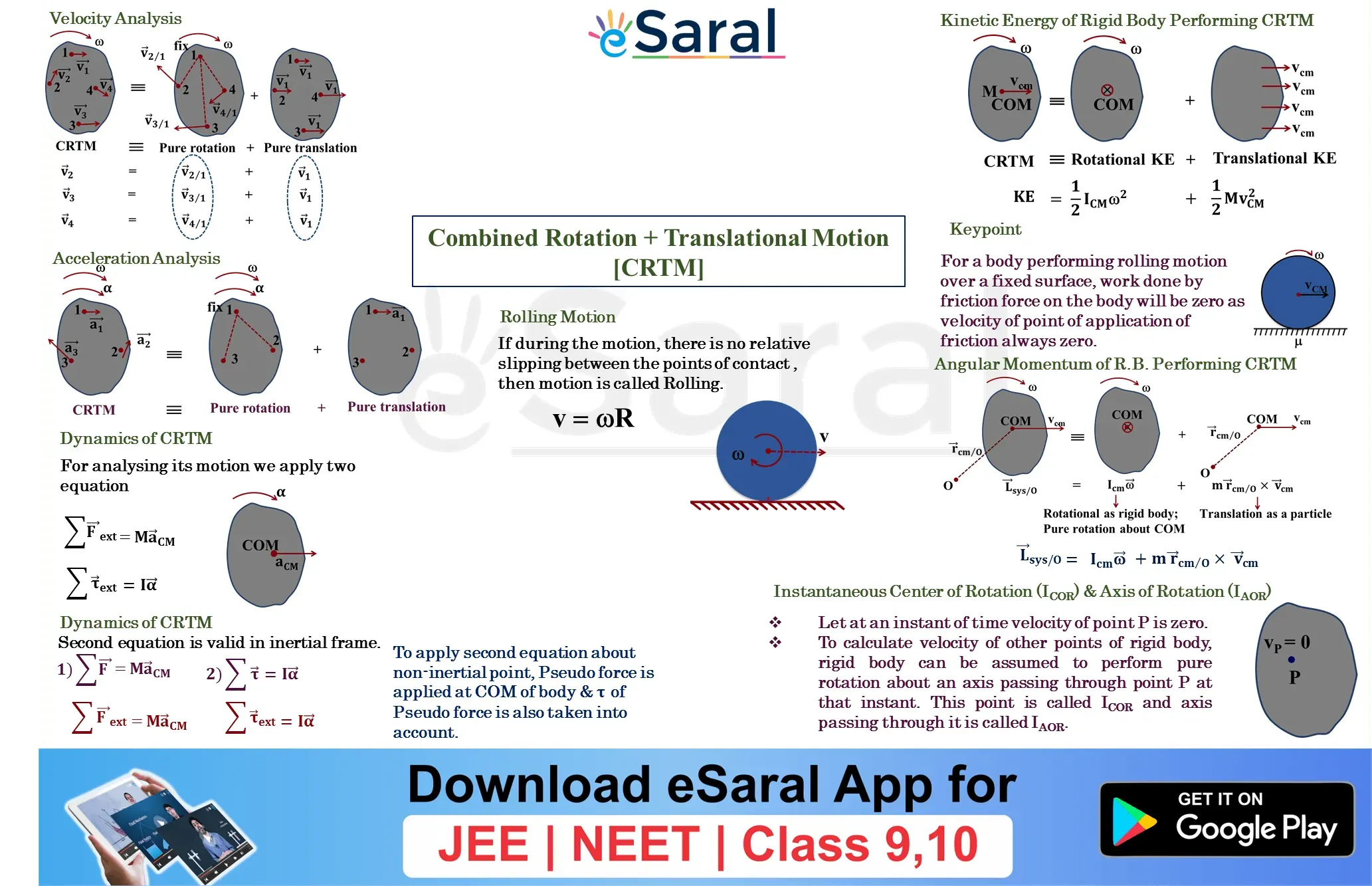

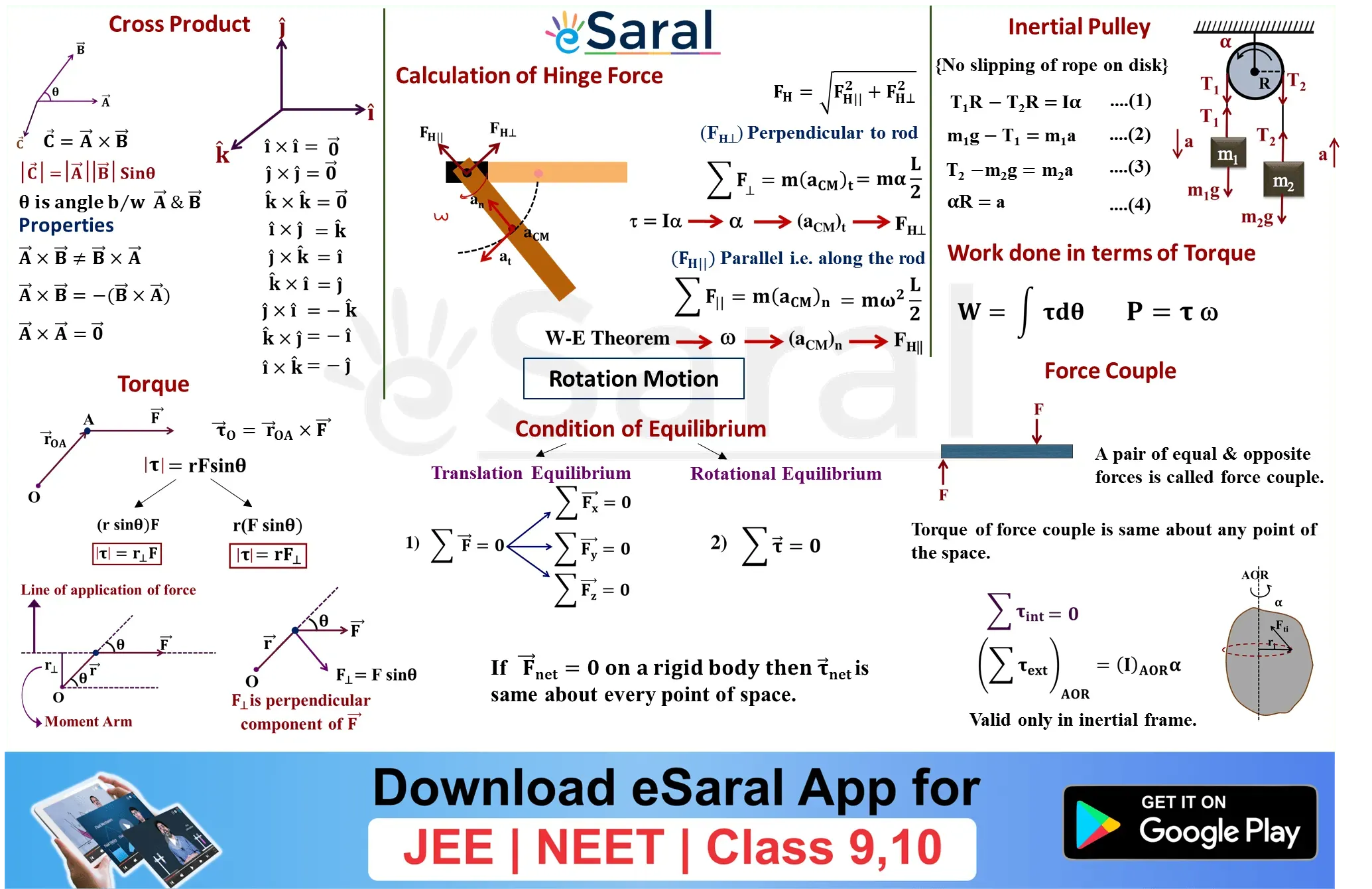

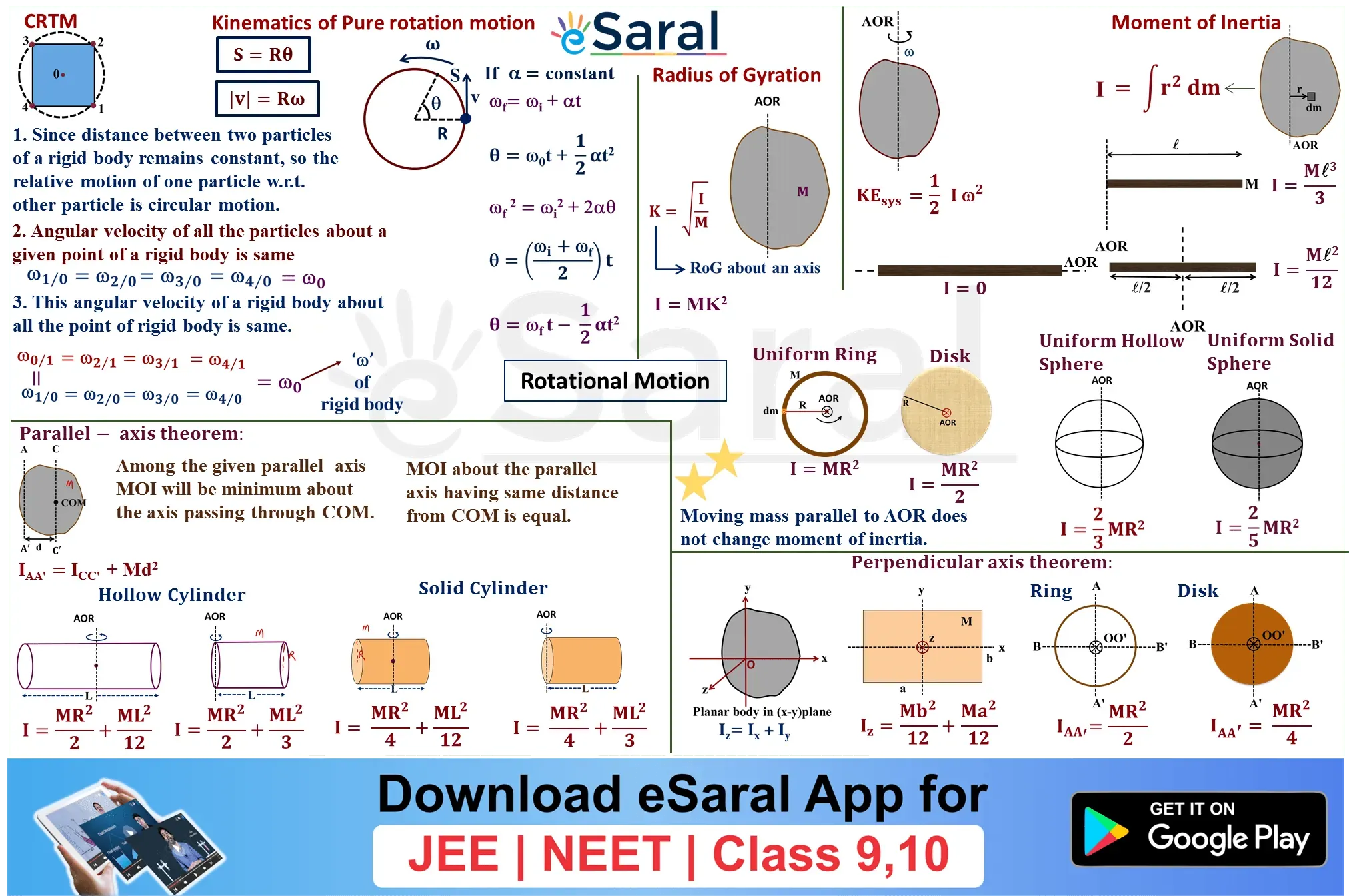

The four mind maps cover Moment of Inertia (standard bodies and axis theorems), Torque (scalar, vector, and equilibrium), Angular Momentum (L = Iω, L = mvr, and conservation), and CRTM (rolling without slipping, kinetic energy, and incline problems). Together they cover every sub-topic tested in JEE Main, JEE Advanced, and NEET from this chapter.

JEE Main consistently includes 2 to 3 questions from Systems of Particles and Rotational Motion per session, as confirmed by NTA's official paper archives. This makes it one of the highest-return chapters in Physics for marks per hour of revision time.

CRTM (rolling motion) appears occasionally in NEET but carries low direct weightage. NEET students should focus primarily on Torque, Equilibrium, and Angular Momentum Conservation. JEE students — especially those targeting JEE Advanced — must master CRTM fully, as multi-step rolling problems are a regular feature.

Mind maps work best as a retrieval aid, not a learning tool. Use them after you have studied the chapter through video lectures, NCERT solutions, and solved examples. Attempting to learn from the mind maps without prior study leads to surface-level memorisation that breaks down on multi-step JEE problems

The Parallel Axis Theorem (I = I_cm + Md²) applies to any 3D or 2D body and shifts the axis parallel to the centre-of-mass axis. The Perpendicular Axis Theorem (I_z = I_x + I_y) applies only to planar (2D) bodies where the z-axis is perpendicular to the plane of the body. Confusing their scope is one of the most frequent errors in JEE.
